Pump Installation

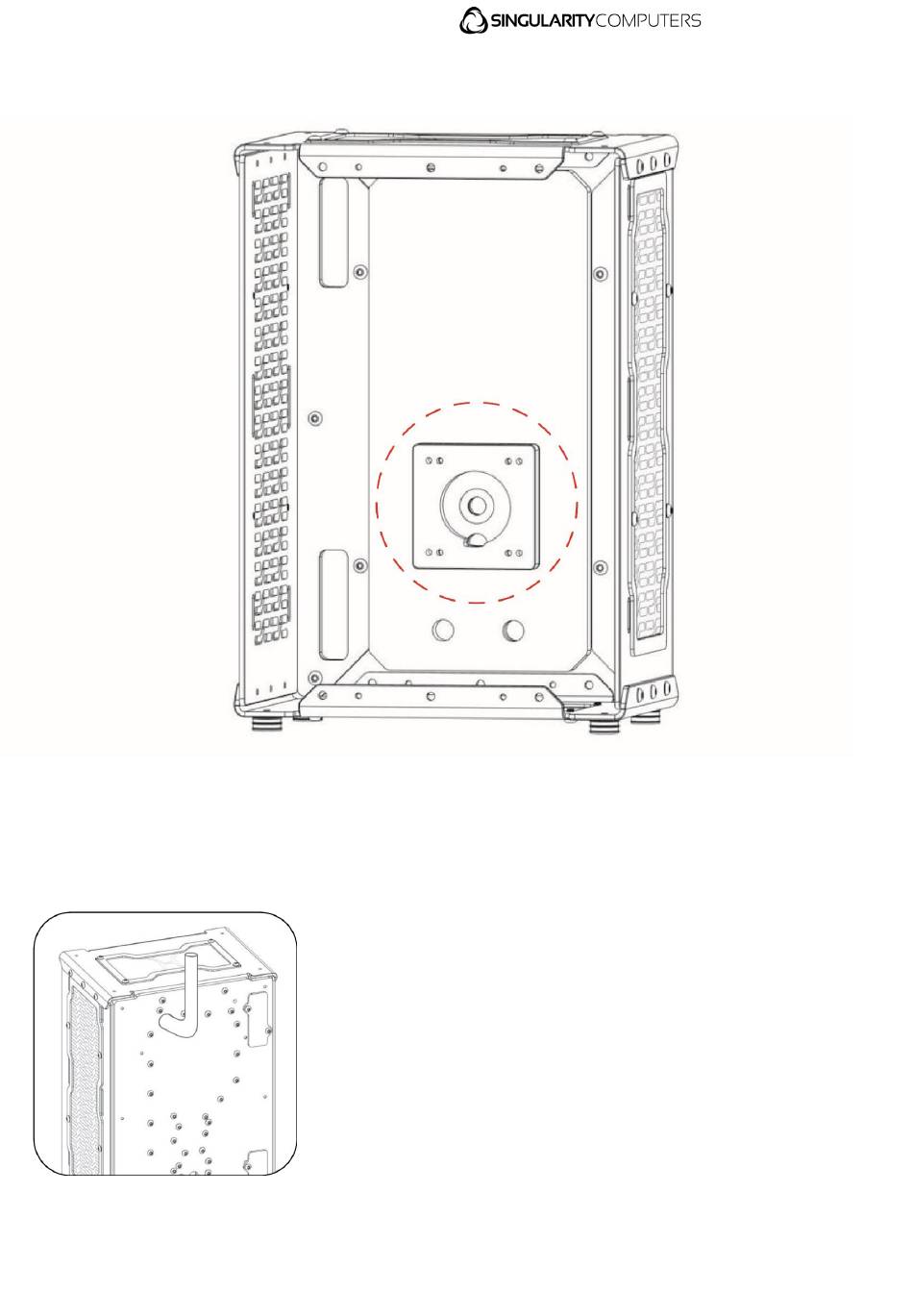

Install DDC Pump at the marked area in the diagram. Use the pump cover, fasteners and O-Ring
which come included with your DDC Pump or any DDC covers and/or heat sinks are also
compatible. Do not over tighten fasteners on acrylic.
Filling & Draining
Revision 1.0
Arterial 2.0 Water-boxes have a dedicated fill and drain port.
When filling it is best to connect a fill tube at least 20cm long.
This is to prevent any overflow from back flow when the pump/s
are turned off and helps to get the last of the air out. For draining
a drain valve needs to be added to the drain port, or if you are
using quick disconnects then the water-box could also be
drained from those.
| Arterial 2 Manual
Page | 3
