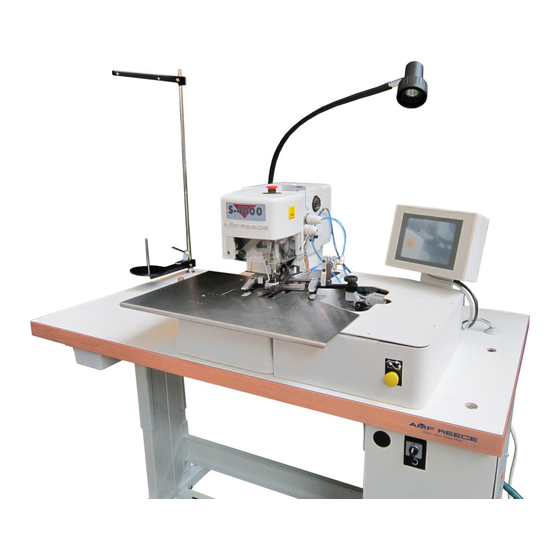

S-4000 ISBH MODEL Mechanical Indexer ELECTRONIC BUTTON STITCHER MACHINE PARTS AND SERVICE MANUAL 97.2486.9.001 PART NUMBER 12 / 2021...
Page 3
However, the satisfaction and goodwill of our customers are of pri- mary concern to AMF Reece, Inc. In the event that a warranty matter is not handled to your satisfaction, please contact AMF Reece office: AMF Reece - Cars s.r.o.
2.5. Assembly of kit 24.9404.0.050 ........................... 2.6. Assembly of pedal kit 24.9407.0.050 ......................... C - PROPER APPLICATION 1. POWER UP / HOME POSITION (SEE S-4000 ISBH MANUAL) ............1-11 2. PROGRESS OF SEWING WITH INDEXER ...................1-11 D - INDEXER ADJUSTMENTS 1. SETTING THE SEWING DIRECTION OF BUTTONHOLES ............1-14 1.1.
The indexer is intended only for sewing straight buttonholes. This device is intended for customers of piece and small series production. The device is compatible with the S-4000 ISBH machine from AMF REECE. 2. SPECIFICATION...
MODEL S-4000 ISBH MECHANICAL INDEXER B - MACHINE INSTALLATION 1. CONTENT OF THE SHIPPING BOX 1.1. The shipment contains one box 1.2. The package contains the following parts 24.9401.0.050 – Indexer linear guide assy. 24.9402.0.050 – Connecting parts – cross lever assy.
The manual indexer is designed exclusively for the AMF REECE S-4000 ISBH machine !!! If the device is mounted on another machine, AMF REECE we do not take any responsibility for its function and it is not possible to complain about anything !!! 2.1.
Page 10
MODEL S-4000 ISBH MECHANICAL INDEXER B - MACHINE INSTALLATION Insert clamping plate mechanism to S4000 ISBH sewing head. Use the new cover plate 24.3055.2.000 , which is part of the package, to cover the mechanism. Secure the cover plate with the original screws.
MODEL S-4000 ISBH MECHANICAL INDEXER B - MACHINE INSTALLATION 2.2. Assembly of kit 24.9401.0.050 Open the sewing head. Attach the 24.9401.0.050 assembly to the machine base with screws Screw the stud 24.4028.1.000 into the main cam lever . Lower the sewing head to the working position.
MODEL S-4000 ISBH MECHANICAL INDEXER B - MACHINE INSTALLATION 2.3. Assembly of kit 24.9402.0.050 Loosen the M6x16 screw in the 24.9402.0.050 assembly . Connect the assembly to the 24.9401.0.050 assembly and secure it again with an M6x16 screw 2.4. Assembly of kits 24.9405.0.050 and 24.9006.0.050 First, join assemblies 24.9405.0.050...
Page 13
MODEL S-4000 ISBH MECHANICAL INDEXER B - MACHINE INSTALLATION Connect the compound assemblies to the 24.9402.0.050 assembly. Secure the position by tightening the set screws . Align the entire assembly longitudinally and vertically (125 mm and 0.5-1 mm dimensions) with the...
MODEL S-4000 ISBH MECHANICAL INDEXER B - MACHINE INSTALLATION 2.5. Assembly of kit 24.9404.0.050 Insert the 24.9404.0.050 assembly on the guide pin under the sewing head clamping foot . Secure the assembly by tightening the screw into the assembly 24.9406.0.050...
MODEL S-4000 ISBH MECHANICAL INDEXER B - MACHINE INSTALLATION Connect the valve power cable Y10 to the valve connector. Guide it in the cable trai and pass it through the rubber bushing into the electrical box. Connect the red wire to the clamp of contactor KM-1 13, terminal block 4. Connect the black wire to the clamp of terminal block 12, according the drawing (thicker line).
Page 16
MODEL S-4000 ISBH MECHANICAL INDEXER B - MACHINE INSTALLATION Guide the pedal cable on the stand and secure it with the clips . Thread it into the cable tray and pass it through the bushing into the electrical box. Connect the blue wire to the clamp of terminal block 18. Connect the brown wire to the clamp of terminal block 12, according the drawing (thicker line).
This power voltage control cautions a machine operator if the supply voltage is not in the required range (185V - 255V) and the machine could be damaged - see section E19 of the S-4000 ISBH manual. Note: The power voltage guard is installed in the machine only if a customer has ordered it with a machine.
Page 18
MODEL S-4000 ISBH MECHANICAL INDEXER C - PROPER APPLICATION 6. When the right foot pedal is pressed to the first position, the material is clamped by the head clamp feet . Releasing the foot pedal will rise the clamp feet Note: It is possible to set in the program the machine start on first pedal position.
Page 19
12. If the right foot pedal is pressed before finishing the sewing, the clamp feet will not rise and the machine will sew two instead one - this is possible to set in program. See section D3 in S-4000 ISBH manual.
MODEL S-4000 ISBH MECHANICAL INDEXER D - INDEXER ADJUSTMENTS 1. SETTING THE SEWING DIRECTION OF BUTTONHOLES Before you start sewing, it is important to set the right sewing direction depending on whether you are sewing the right or left sleeve.
MODEL S-4000 ISBH MECHANICAL INDEXER D - INDEXER ADJUSTMENTS 1.2. Sewing from left to right Set the lever to the far right position on the gauge . Indexer clamp feet will move from right to left. The buttonholes will be sewn in a direction from left to right.
MODEL S-4000 ISBH MECHANICAL INDEXER D - INDEXER ADJUSTMENTS 2. ADJUST THE DISTANCE BETWEEN THE BUTTONHOLES Several buttonhole spacing sizes can be set on the indexer. We supply the following guides with distance as standard: 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 20 mm, 25 mm and 30 mm.
MODEL S-4000 ISBH MECHANICAL INDEXER D - INDEXER ADJUSTMENTS 2.2. Change the guide If you need to replace the guide with the sizes supplied in the accessories, follow the steps below. Loosen the screws on the gauge you are replacing. Remove the guide and insert a new one.
Page 25
MODEL S-4000 ISBH MECHANICAL INDEXER TABLE OF CONTENTS MECHANICAL INDEXER - LINEAR GUIDE ........... ..3-2 MECHANICAL INDEXER - CROSS LEVER ASSEMBLY ........3-4 MECHANICAL INDEXER - CLAMPING CONNECTING PARTS ......3-6 MECHANICAL INDEXER - CLAMPING ASSEMBLY ..........3-8 MECHANICAL INDEXER - BASE ..............3-10 MECHANICAL INDEXER - RANGE MECHANISM ..........
Page 41
MODEL S-4000 ISBH MECHANICAL INDEXER INDEX PART NUMBER PAGE DET PART NUMBER PAGE DET PART NUMBER PAGE DET 36542017 3-11 08.6850.3.000 24.4405.0.000 3-11 01.5002.0.000 3-11 08.6852.3.000 3-11 24.4406.0.000 3-13 06.2400.2.026 3-15 08.6852.3.000 3-15 24.4407.0.000 3-13 06.2400.2.027 08.6852.4.000 24.4408.0.000 3-13 08.6000.3.004 08.6852.6.000...
