S-4000 CAED Omron MODEL CUT AFTER EDGE PARTS AND SERVICE MANUAL MACHINE SERIAL No: 97.2430.2.001 PART NUMBER 06 / 2022...
Page 3
However, the satisfaction and goodwill of our customers are of pri- mary concern to AMF Reece, Inc. In the event that a warranty matter is not handled to your satisfaction, please contact AMF Reece office: AMF Reece - Cars s.r.o.
S-4000 CAED Omron TABLE OF CONTENTS A - INTRODUCTION 1. BASIC INFORMATION ..........................1 2. SAFETY DEVICE AND LABELS ......................2 3. GENERAL MA CHINE PARTS DESCRIPTION ..................3 4. SPECIFICATIONS ............................. 4 5. INSTRUCTIONS FOR OPERATOR SAFETY AND MAINTENANCE ........... 5 6.
Page 6
S-4000 CAED Omron TABLE OF CONTENTS F - MAINTENANCE 1. CLEANING AND MAINTENANCE OF THE MACHINE ............... 41 2. LIST OF REGULAR SERVICES ......................43 3. SCHEME OF GROUP LUBRICATION ....................44 4. MACHINE LUBRICATION ........................45 5. DISPOSAL MEASURES ......................... 47 G - PNEUMATIC DIAGRAM ........................
WARNING! Possible serious injury or machine damage. NOTICE! Possible injury or machine damage. We recommend that service workers from AMF Reece oversee the installation and initial training of your mechanics and operators. The most effective safety precaution is a well-managed safety program. Be sure those who use this machine are properly trained.
S-4000 CAED Omron A - INTRODUCTION 2. SAFETY DEVICE AND LABELS S-4000 YEAR OF PRODUCTION VOLTAGE POWER OUTPUT CURRENT AMF REECE, a.s. CZECH REPUBLIC Warning Eye guard Covers removed, possible injury Head cover Grounding Fan cover Rotational direction Manometer with pressure sensor...

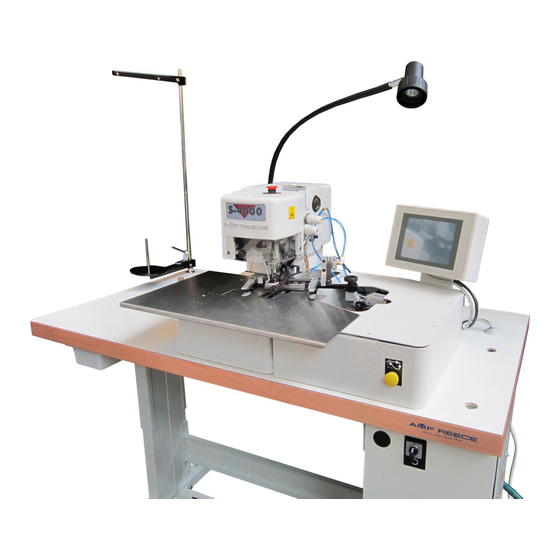

S-4000 CAED Omron A - INTRODUCTION 3. GENERAL MA CHINE PARTS DESCRIPTION Control box Main switch Hand wheel Foot pedal EMERGENCY STOP button Clamps Up / Down button Motor Air pressure regulator Table top Air pressure adjustment knob Thread stand...
S-4000 CAED Omron A - INTRODUCTION 4. SPECIFICATIONS Machine type S-4000 CAED Description electronical sewing machine for clothing parts stitching with cutting after Sewing speed 1500-3800 stitches/min Stitch density 3-14 stitches/cm Machine clamp foot height 12.7 mm (1/2") Sewing length...
S-4000 CAED Omron A - INTRODUCTION 5. INSTRUCTIONS FOR OPERATOR SAFETY AND MAINTENANCE When installing the machine we recommend the minimum clearances noted above around the machine. Read all of the instructions that follow. DO NOT PUT THE MACHINE INTO OPERATION UNTIL YOU ARE COMPLETELY FAMILIAR WITH ALL INSTALLATION AND OPERATING INSTRUCTIONS.
S-4000 CAED Omron A - INTRODUCTION CAUTION! • Perform all regular service as described by this manual. • If there is any problem with the power supply, turn off the main power switch. • Do not remove, paint over, damage or in any way change safety labels. If a safety label cnot be easily read, replace it.
Page 13
S-4000 CAED Omron A - INTRODUCTION Connector Ø8 - order it if the connecting tube has the inner diameter 8 mm. The connector Ø10 is supplied with the machine. - part number is 12.0008.3.607 Reduction - place an order in case you use connections with inch threads (order number 12.0008.3.081)
S-4000 CAED Omron B - MACHINE INSTALLATION 1. CONTENT OF THE SHIPPING BOX 1. The shipment contains one box. 2. There is a carton with accessories, service manual with parts section and thread stand in the box. 3. During unpacking the shipment, follow the labels which are on a cover.
S-4000 CAED Omron B - MACHINE INSTALLATION 3. POWER AND AIR CONNECTION 1. The machine is equipped with a quick coupler required with connector for inner Ø of the tube 10. The connector for inner Ø of the tube 8 is not supplied with the machine, a customer has to order it.
S-4000 CAED Omron B - MACHINE INSTALLATION 4. HEAD PNEUMATIC cutting changing the direction of sewing clamping feet blowing off the cut materi al thread trimming loopers, thread blow off (*Extra parts) shifti ng clamping plate J0I1; J0I2 - air input...
S-4000 CAED Omron B - MACHINE INSTALLATION 5. INSTALLATION OF THREAD HOLDER 1. Put the thread holder together as per the drawing. 2. Position of the ring enables assembly of the complete holder onto tables with different thickness of the tabletop.
S-4000 CAED Omron C - CORRECT USAGE 1. POWER UP/HOME POSITION by turning clockwise to the I position. 1. Turn the main power switch on 2. The display is illuminated for a moment and the screen shows the model number.
S-4000 CAED Omron C - CORRECT USAGE 2. NEEDLE INSTALLATION WARNING! Before doing this adjustment, switch the machine off and let the remaining compressed air from the machine out. For thin fabrics the machine uses needles order number 02.0750.2.109 (750 SC 70/10— Groz-Beckert) as standard and for thicker fabrice needles order number 02.0750.2.110 (750SC 90/14—...
S-4000 CAED Omron C - CORRECT USAGE 3. THREADING WARNING! Switch the main machine power off to prevent accidental starting of the machine. Disconnect the air supply and dissipate any stored energy. When threading, see the pictures below. Change the thread tension by nut according to the sewing conditions.
S-4000 CAED Omron D - MACHINE CONTROLS 1. PROGRESS OF SEWING 1. Bring the machine to the home position according to the section C1. 2. Be certain that the machine is threaded correctly according to the section C3 and insert the work under the clamp feet.
S-4000 CAED Omron D - MACHINE CONTROLS 2. OPERATOR CONTROL PANEL PUSH BUTTONS AND SWITCHES Display Daily cycle messages counter Service menu Machine (test entry, counter model reset, program version) Stitcher head clamps The programming menu stitcher head Display messages: •...
S-4000 CAED Omron D - MACHINE CONTROLS 3. THE PROGRAMING MENU STITCHING HEAD Enter the sewing head program menu by pressing button Parameters set 1 Parameters set 2 Setting the machine cycling. (On/Off). Setting the maximum sewing speed. If the button is backlit, the function is active.
Page 24
S-4000 CAED Omron D - MACHINE CONTROLS Parameters set 3 Setting the length of activation of the trimmed material blow out. Range 10 – 1000 ms. Setting the number of stitches sewn over the fabric edge. Range 0 – 30 stitches.
S-4000 CAED Omron D - MACHINE CONTROLS 4. TESTS W a r n i n g !!! The tests can be carried out by qualified service men only. Inputs BQ1 – The end position sensor BQ1. The symbol signalizes correct function of the sensor of the end position of the cam (HOME) BQ1.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 1. MACHINE HOME POSITION 1. Needle bar is i n the upper position. When making the first stitch, the needle must go into the right side throatplate groove . Mark on the hand wheel must meet mark on the pulley cover.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 4. NEEDLE BAR 1. Position of the bell-shaped eccentric Turn the hand wheel and loose the fastening screw in the bell-shaped eccentric . Keep turning the hand wheel until the needle bar reaches upper position.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 5. BITE Before setting up the bite, dismantle pulley cover and head cover 1. Bite cam a. Check that the machine is in home position. b. Tilt the machine head onto the support pin...
Page 31
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 2. Setting up the width of the bite Tilt the machine head from the support pin back into the sewing position. The width of the bite i s set up from the rear side of the machine head from the space below the motor.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 6. FEEDING 1. Tilt the machine head onto the support pin. 2. Adjustment of feeding wheels. Turn the hand wheel counter-clockwise until the guiding spring snaps into the shifter left arm notch. The feeding lever is on the very top point of the feeding cam.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 7. CLUTCH Clutch pressure is set up by the manufacturer. Under normal circumstances, it is not necessary to adjust it. The correct torque is 0,42 Nm. Hold the nut and tighten the adjusting screw with a torque wrench.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 9. LOOPERS ADJUSTMENT Before the adjustment, follow the instructions below: • Turn the hand wheel and see carefully the position of the connecting rod on both extreme positions of the looper movable arm .
Page 35
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT Adjustment of the first looper 1. With the machine being in the home position, loosen the looper cam screws and set it to the lowest position. 2. Loosen the adjusting screw and turn the looper so that it is vertically towards the opening in the holder.
Page 36
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT Adjustment of the second looper 10. Insert the second looper onto the looper shaft. 11. Loosen the looper holder screw and move the holder so that the needle goes through the centre of looper opening. There must be 0,4 mm play between the needle and the looper opening.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 10. HOME POSITION OF THE CLAMP PLATE 1. Home position of the clamp plate before sewing: a. conical gear wheels on the feeding shaft are disjointed by the vertical conical gear wheel.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 11. CLAMP PLATE ADJUSTMENT 1. If the distance between the clamp plate cover and the throatplate edge is too large, proceed as instructed in items 2 and 3. Recommended distance – 0,2 mm.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 3. Secure the correct position of the mechanism with the stopper in the upper dead centre and the stopper in the plate in the bottom dead centre. 4. Correct adjustment of the stop screw...
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 14. ADJUSTMENT OF MACHINE HEAD CLAMPING FOOT 1. Adjustment of the uplift Adjustment must be done with air switched on. Make sure the foot is open. If it is not, press the feet button to activate it.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 16. THREAD TENSION Correct thread tension affects the final appearance of sewing. The tension changes with the change of material sewn. The thinner and the more elastic material is, the wider the thread tension must be opened.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 2. Adjustment of the trimming hook c. press the piston of the trimming cylinder down to the maximal limit and loosen the screw of the trimming actuator d. turn the trimming actuator and set the 1.0 mm play between the throatplate and the trimming hook tip.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 19. THREAD BLOW OFF (SPECIAL ACCESSORY) Thread blow off i s ensured by a pipe placed in the bedplate under the throatplate and air forced into the pipe. 1. Regulation of airflow The airflow can be regulated with a choke placed on YV8 branch.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 21. REPLACEMENT OF THE BELT 1. Dismantle the pulley cover by loosing the screws M4 2. Turn the hand wheel to set the position of the shaft so that the screw on the pulley levels the screw on the bearing housing.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 22. PROTECTION DURING VOLTAGE FLUCTUATION (SPECIAL ACCESSORY) The special accessory, guard voltage relay HRN-35 (VC1), is placed in the machine control box. It is pre-set and sealed from the manufacturer. If the supply voltage runs within the required range, the Led light Un on the relay lits green.
S-4000 CAED Omron E - STANDARD MACHINE ADJUSTMENT 23. OPTICAL SENSOR - ADJUSTMENT Loosen the holder of the optical sensor by loosing the screew M4 and adjust it i n such way so that the ray of the optical sensor projected by the sensor meets the glass eye in throat plate and returns back to sensor. The sensor is switched on.
S-4000 CAED Omron F - MAINTENANCE Caution: - Check the condition of electric cables; whether they are not damaged. - Check that all safety covers are in good condition. Replace any damaged covers! - Do not put your fingers in the sewing needle area in any cases! - Do not modify the machine in any way, which interfere the safety factors.
Page 48
S-4000 CAED Omron F - MAINTENANCE 6. Take out the filter cover with the cleaning pad Beat or hoover the pad. In case of severe fouling, wash the pad in washing liquid. Do the same maintenance with the back filter .
S-4000 CAED Omron F - MAINTENANCE 2. LIST OF REGULAR SERVICES 1x day (8 hours) cleaning sewing devices and machine frame Lubrication of mechanisms – see section F4. 1x week (40 hours) visual checking of internal and external mechanisms Filling the oil tank with oil...
S-4000 CAED Omron F - MAINTENANCE 3. SCHEME OF GROUP LUBRICATION The machine is mainly equipped with needle bearings and ball bearings, which together with a single-circuit lubrication reduce the maintenance requirements. Circuit I – the supply of lubrication for bite levers, feeding levers and loopers, and worm gear is in the body of the oil gauge.
S-4000 CAED Omron F - MAINTENANCE 4. MACHINE LUBRICATION 1. Before the machine is switched on for the first time, or after a long time without any operation, it is necessary to lubricate all areas said below. Lubricating oil ESSO TERESSO 32 or oil of similar characteristics can be used.
Page 52
S-4000 CAED Omron F - MAINTENANCE 5. Tilt the machine head onto the support pin and lubricate the areas shown in the picture. loppers shaft feeding shaft gearwheel looper cam feeding cam bite cam trimming shaft Bring the machine head back into the operation position.
S-4000 CAED Omron F - MAINTENANCE 5. DISPOSAL MEASURES 1. To ensure correct disposal of the machine following environmental measures, it is important to remove non-metal parts from the machine. Once such parts are taken out, it is necessary to parti ally dismantle the machine;...
Page 59
S-4000 CAED Omron TROUBLESHOOTING 1. Mechanical Faults....................2-2 2. Error Messages Of The Control Panel Display............2-4 3. Error Messages Of The Servo................2-4 4. Electrical Faults....................2-6 Revised: 01/2021 E-mail: info@amfreece-cars.cz...
Page 60
S-4000 CAED Omron TROUBLESHOOTING 1. MECHANICAL FAULTS SYMPTOM POSSIBLE CAUSE PROBABLE SOLUTION Thread breakage Needle, looper, throat plate Change damaged parts damaged Incorrect needle and sewing Check the adjustment of the mechanism adjustment mechanisms Thread tension is too tight Adjust correct tension Incorrect threading See section C3 for checking.
Page 61
S-4000 CAED Omron TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE PROBABLE SOLUTION Stitch skip during sewing Needle, looper, throat plate Change damaged parts damaged Incorrectly adjusted needle See section E4, point 2 bar height Incorrectly adjusted See section E5, point 3 clearance between needle...
Page 62
S-4000 CAED Omron TROUBLESHOOTING 2. ERROR MESSAGES OF THE CONTROL PANEL DISPLAY SYMPTOM POSSIBLE CAUSE PROBABLE SOLUTION Low air pressure Hand valve of the regulator Open the hand valve switched off (if assembled) The air pressure in the air Increase the air pressure supply piping below 0.5 MPa...
Page 63
S-4000 CAED Omron TROUBLESHOOTING Alarm Alarm reset Error detection function Detection details and cause of error code possible Power supply The DC voltage of the main circuit fell beloww the specificed value while undervoltage the RUN Command Input was ON...
Page 64
Replace fuse 12.0008.4.664 When sewing Contactor KM1 damaged Replace contactor 12.0008.4.833 operation started, Call AMF Reece service or motor does not Servo U1 error or filter Z2 error replace servo U1 (page 2-9) operate. Contactor or filter Z2 (page 2-9) KM1 switched on.
Page 65
S-4000 CAED Omron TABLE OF CONTENTS Needle Bar..............................3-2 Clamping............................3-4 Thread T rimmer............................3-6 Shifter Mechanism............................3-8 Feed Mechanism............................3-10 Looper Mechanism..........................3-14 Base..................................3-16 Bite Mechanism............................3-18 Knife and Draw............................3-20 Main Cam...............................3-24 Head Assembly............................3-26 Bedplate..............................3-28 Covers...............................3-32 Lubrication..............................3-34 T able...............................3-36 T able - Roller Kit - Extra Parts........................3-38 Electrical —...
S-4000 CAED Omron NEEDLE BAR Revised: 06/2022 E-mail: info@amfreece-cars.cz...
Page 67
S-4000 CAED Omron NEEDLE BAR PART NUMBER DESCRIPTION QTY. 24.0195.4.000 Needle Bar 01.2193.0.000 4-60 Screw 22.0510.0.000 Needle Bar Holder 08.6400.5.005 M5 x 5 Set Screw 01.7447.1.000 Porcelain Guide 22.0520.0.000 Needle Bar Clamp 01.6551.0.000 Retaining Ring 22.0230.0.000 Cupped Washer 22.0239.0.000 Felt Washer 22.0530.0.000...
S-4000 CAED Omron BASE Revised: 06/2022 3-16 E-mail: info@amfreece-cars.cz...
Page 81
S-4000 CAED Omron BASE PART NUMBER DESCRIPTION QTY. 24.0111.0.000 Base Sound Deadener 08.6100.5.012 M5 x 12 Screw 08.6200.5.012 M5 x 12 Screw 22.1010.0.000 Base Hinge 24.0038.0.000 Base Gasket 12.8000.1.028 CE”” Label 08.6100.5.020 M5 x 20 Screw 12.0008.4.197 Cord Clamp 08.6700.5.000 M5 Nut 12.0008.4.052...
Page 85
S-4000 CAED Omron KNIFE AND DRAW PART NUMBER DESCRIPTION QTY. See page 3-46 Connector See page 3-46 Air Tubing See page 3-46 Connector See page 3-46 Cylinder 24.2069.0.000 Cylinder Stand-Off 24.2014.0.000 Knife Drive Lever 24.2053.0.000 Thread Take-Up Plate 08.6102.4.014 M4x14 Screw 24.2042.0.000...
S-4000 CAED Omron HEAD ASSEMBLY Revised: 06/2022 3-26 E-mail: info@amfreece-cars.cz...
Page 91
S-4000 CAED Omron HEAD ASSEMBLY PART NUMBER DESCRIPTION QTY. See Page 3-38 Servomotor l ll lll 08.6850.5.000 M5 Washer 24.6000.6.000 Head 08.6200.5.008 M5 x 8 Screw 22.0054.0.000 Upper Thread Guide 08.6000.8.025 M8 x 25 Screw 22.0058.0.000 Sewing Head Latch 07.6045.0.037 3 x 16 Grooved Pin 07.6440.0.051...
S-4000 CAED Omron EXTRA PARTS Revised: 06/2022 3-52 E-mail: info@amfreece-cars.cz...
Page 117
S-4000 CAED Omron EXTRA PARTS PART NUMBER DESCRIPTION QTY. 24.4053.0.000 Stud 24.4052.0.000 Cylinder Holder Assy. 08.6700.6.000 Nut M6 12.0008.3.499 Cylinder 12.0010.3.028 Connector 24.4054.0.000 Knuckle 24.4055.0.000 Rod Tension 08.6800.4.000 Washer 4 08.6850.5.000 Washer 5,3 08.6000.5.025 Screw M5-25 08.6700.5.000 Nut M5 12.0008.4.253 Clamp 12.0008.3.413...
Page 118
S-4000 CAED Omron EXTRA PARTS - BLOW-OF KIT Revised: 06/2022 3-54 E-mail: info@amfreece-cars.cz...
Page 119
S-4000 CAED Omron EXTRA PARTS - BLOW-OF KIT PART NUMBER DESCRIPTION QTY. 08.6000.3.012 Screw M3-12 08.6000.4.008 Screw M4-8 08.6000.4.010 Screw M4-10 12.0008.3.416 Air Tube 12.0008.3.426 Plug 12.0008.3.828 5/2 Valve 12.0010.3.029 Speed Valve 24.2067.0.000 Thread Holder 24.2068.0.000 Bracket, Thread Blower 24.3318.0.000 Blow-Off Assy.
Page 120
S-4000 CAED Omron EXTRA PARTS - ELASTIC MATERIALS Revised: 06/2022 3-56 E-mail: info@amfreece-cars.cz...
Page 121
S-4000 CAED Omron EXTRA PARTS - ELASTIC MATERIALS PART NUMBER DESCRIPTION QTY. 24.6102.4.005 Loading Plate 24.2075.5.000 Throat Plate Revised: 06/2022 3-57 E-mail: info@amfreece-cars.cz...
Page 123
S-4000 CAED Omron INDEX PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY 00.2751.3.602 3-41 07.6045.0.047 3-29 08.6000.5.012 3-49 01.1382.0.000 3-15 07.6045.0.054 3-29 08.6000.5.016 01.1397.0.000 3-15 07.6321.0.001 3-25 08.6000.5.016 3-21 01.2084.0.000 07.6321.0.025 3-11 08.6000.5.016 3-29 01.2139.0.000 3-31...
Page 124
S-4000 CAED Omron INDEX PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY 08.6102.5.012 08.6490.6.025 3-23 08.6832.4.000 3-47 08.6102.5.016 3-21 08.6652.3.016 3-37 08.6832.5.000 3-49 08.6120.3.008 3-29 08.6662.3.025 3-53 08.6832.6.000 3-37 ((1)) 08.6200.4.006 3-49 08.6663.5.025...
Page 125
S-4000 CAED Omron INDEX PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY 12.0008.3.442 3-49 12.0008.4.477 12.0010.4.067 3-45 12.0008.3.444 3-49 12.0008.4.563 3-41 12.0010.4.071 3-45 12.0008.3.462 3-49 12.0008.4.570 3-41 12.0010.4.071 3-45 12.0008.3.463 3-51 12.0008.4.664 3-45 12.0010.4.078...
Page 126
S-4000 CAED Omron INDEX PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY 20.0094.0.000 3-15 22.0114.0.000 3-11 22.0525.0.000 20.0094.0.000 3-51 22.0120.0.000 3-35 22.0525.0.050 20.0111.0.000 3-15 22.0121.0.000 3-11 22.0530.0.000 20.0112.0.000 3-15 22.0137.0.000 3-25 22.0535.0.100 22.0005.0.000 3-19 22.0143.0.000...
Page 127
S-4000 CAED Omron INDEX PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY 24.0024.0.000 3-51 24.1000.0.000 3-31 24.2069.0.000 3-21 24.0027.0.000 3-29 24.2001.0.000 3-21 24.2070.0.000 3-27 24.0030.0.000 3-51 24.2002.0.000 3-21 24.2071.3.000 3-21 24.0033.0.000 3-19 24.2004.0.000 3-21 24.2072.0.000...
