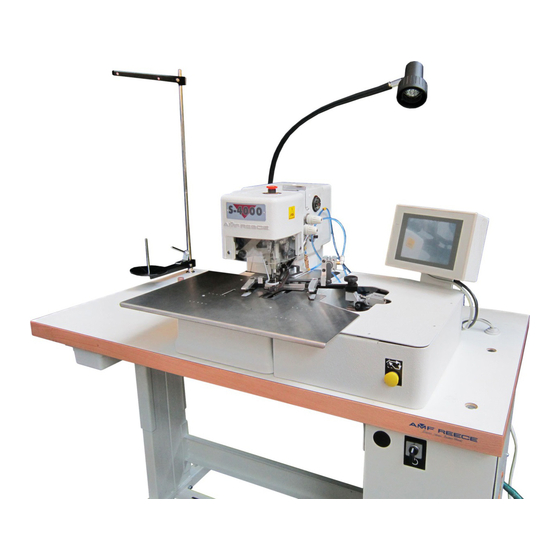

AMF S-4000 ISBH Omron Parts And Service Manual

Straight buttonhole machine for imitation sleeve buttonholes
Hide thumbs Also See for S-4000 ISBH Omron:
Table of Contents

Advertisement

Quick Links

Download this manual
S-4000 ISBH Omron
MODEL
STRAIGHT BUTTONHOLE MACHINE
FOR IMITATION SLEEVE BUTTONHOLES
PARTS AND SERVICE MANUAL
MACHINE SERIAL No:
97.2433.3.001
PART NUMBER
12 / 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-4000 ISBH Omron and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMF S-4000 ISBH Omron

Summary of Contents for AMF S-4000 ISBH Omron

  • Page 1 S-4000 ISBH Omron MODEL STRAIGHT BUTTONHOLE MACHINE FOR IMITATION SLEEVE BUTTONHOLES PARTS AND SERVICE MANUAL MACHINE SERIAL No: 97.2433.3.001 PART NUMBER 12 / 2020...
  • Page 3 However, the satisfaction and goodwill of our customers are of pri- mary concern to AMF Reece, Inc. In the event that a warranty matter is not handled to your satisfaction, please contact AMF Reece office: AMF Reece - Cars s.r.o.

  • Page 5: Table Of Contents

    S-4000 ISBH Omron TABLE OF CONTENTS A - INTRODUCTION 1. BASIC INFORMATION ........................1 2. SAFETY DEVICE AND LABELS ......................2 3. GENERAL MACHINE PARTS DESCRIPTIONS ................3 4. SPECIFICATIONS..........................4 5. TABLE TYPE ............................5 6. INSTRUCTIONS FOR OPERATOR SAFETY AND MAINTENANCE ..........6 7.
  • Page 6 S-4000 ISBH Omron TABLE OF CONTENTS F - MACHINE MAINTENANCE 1. MACHINE CLEANING AND MAINTENANCE ................. 46 2. PERIODIC MAINTENANCE ......................48 3. LUBRICATION DIAGRAM ........................ 49 4. MACHINE LUBRICATION ........................ 50 5. MACHINE DISPOSAL ........................52 G - PNEUMATIC DIAGRAM ........................53 H - ELECTRICAL DIAGRAM.........................

  • Page 7: Basic Information

    NOTICE! Possible injury or machine damage. We recommend that service workers from AMF Reece oversee the installation and initial training of your mechanics and operators. The most effective safety precaution is a well-managed safety program. Be sure those who use this machine are properly trained.

  • Page 8: Safety Device And Labels

    S-4000 ISBH Omron A - INTRODUCTION 2. SAFETY DEVICE AND LABELS S-4000 YEAR OF PRODUCTION VOLTAGE POWER OUTPUT CURRENT AMF REECE, a.s. CZECH REPUBLIC Electricity injury warning Eye guard Covers removed, possible injury Needle bar cover Wear eye protection Head cover...

  • Page 9: General Machine Parts Descriptions

    S-4000 ISBH Omron A - INTRODUCTION 3. GENERAL MACHINE PARTS DESCRIPTIONS Table Main switch Control box Foot pedal Hand wheel Clamps Up / Down EMERGENCY STOP button Air pressure regulator Motor Air pressure adjustment knob Table top Halogen lamp Thread stand...

  • Page 10: Specifications

    S-4000 ISBH Omron A - INTRODUCTION 4. SPECIFICATIONS Machine type S 4000 ISBH Description electronic controlled chain stitch straight buttonhole machine for sewing imi- taion buttonholes on cuff Wiggins Sewing speed 1500-3800 stitches/min (500 - 1900 rev/min of the drive shaft) Buttonhole length 15.8 - 25 mm (5/8"...
  • Page 11 S-4000 ISBH Omron A - INTRODUCTION 5. TABLE TYPE CROSS CROSS EMBEDDED Revised:12/2020 E-mail: info@amfreece-cars.cz...

  • Page 12: Instructions For Operator Safety And Maintenance

    S-4000 ISBH Omron A - INTRODUCTION 6. INSTRUCTIONS FOR OPERATOR SAFETY AND MAINTENANCE When installing the machine we recommend the minimum clearances noted above around the machine. Read all of the instructions that follow. DO NOT PUT THE MACHINE INTO OPERATION UNTIL YOU ARE COMPLETELY FAMILIAR WITH ALL INSTALLATION AND OPERATING INSTRUCTIONS.

  • Page 13: Special Accessories

    S-4000 ISBH Omron A - INTRODUCTION CAUTION! • Perform all regular service as described by this manual. • If there is any problem with the power supply, turn off the main power switch. • Do not remove, paint over, damage or in any way change safety labels. If a safety label cnot be easily read, replace it.
  • Page 14 S-4000 ISBH Omron A - INTRODUCTION Sewing cam it is possible to sew a different buttonhole shape than standard buttonhole a customer can order it - part number 24.3079.0.000 part number 24.3080.0.000 to change a cam - see section E20...

  • Page 15: B - Machine Assembly

    S-4000 ISBH Omron B - MACHINE ASSEMBLY 1. CONTENT OF THE SHIPPING BOX 1. The shipment contains one box. 2. There is a carton with accessories, service manual with parts section and thread stand in the box. 3. During unpacking the shipment, follow the labels which are on a cover.
  • Page 16 S-4000 ISBH Omron B - MACHINE ASSEMBLY A mechanical indexer can be ordered as an extra accessory for this machine. This simple device allows you to sew imitation buttonholes on the sleeves of the jackets. See in Extra parts. 24.9401.0.050 – Indexer linear guide assy.

  • Page 17: Power And Air Connection

    S-4000 ISBH Omron B - MACHINE ASSEMBLY 3. POWER AND AIR CONNECTION 1. The machine is equipped with a quick coupler required with connector for inner Ø of the tube 10. The connector for inner Ø of the tube 8 is not supplied with the machine, a customer has to order it.

  • Page 18: Head Pneumatic

    S-4000 ISBH Omron B - MACHINE ASSEMBLY 4. HEAD PNEUMATIC - thread draw-off, tension release - thread trim - clamp feet J0I1 - air input BQ2 - regulator with air pressure switch air distribution Tubes 0, 1, 2 — X => distribution from a regulator...

  • Page 19: Thread Stand Installation

    S-4000 ISBH Omron B - MACHINE ASSEMBLY 5. THREAD STAND INSTALLATION 1. Put the thread stand together according to the drawing. 2. Position of the locking ring allows assembly of the thread stand for various thickness of the table top.

  • Page 20: C - Proper Application

    S-4000 ISBH Omron C - PROPER APPLICATION 1. POWER UP / HOME POSITION 1. Turn the main power switch on by turning clockwise to the I position. 2. The machine is ready for operation when the control panel display lights, the Ready message appears on the display and the green LED lights on display.

  • Page 21: Needle Installation

    S-4000 ISBH Omron C - PROPER APPLICATION 2. NEEDLE INSTALLATION WARNING! Before performing this adjustment, switch the main machine power off to prevent accidental starting of the machine. Disconnect the air supply and dissipate any stored energy. Use needles ordering number 02.0750.2.110 (750SC 90/14) only - see accessories.

  • Page 22: Threading

    S-4000 ISBH Omron C - PROPER APPLICATION 3. THREADING WARNING! Switch the main machine power off to prevent accidental starting of the machine Disconnect the air supply and dissipate any stored energy. When threading, see the pictures below. Change the thread tension by nut according to the sewing conditions.

  • Page 23: D - Machine Controls

    S-4000 ISBH Omron D - MACHINE CONTROLS 1. PROGRESS OF SEWING 1. Bring the machine to the home position according to the section C1. 2. Be certain that the machine is threaded correctly according to the section C3 and insert the work under the clamp feet.

  • Page 24: Operator Control Panel Push Buttons And Switches

    S-4000 ISBH Omron D - MACHINE CONTROLS 2. OPERATOR CONTROL PANEL PUSH BUTTONS AND SWITCHES Display Daily cycle messages counter Service menu Machine (test entry, counter model reset, program version) Stitcher head clamps The programming menu stitcher head Display messages: •...

  • Page 25: The Programing Menu Stitching Head

    S-4000 ISBH Omron D - MACHINE CONTROLS 3. THE PROGRAMING MENU STITCHING HEAD Enter the sewing head program menu by pressing button Parameters set 1 Parameters set 2 1-19 Revised:12/2020 E-mail: info@amfreece-cars.cz...
  • Page 26 S-4000 ISBH Omron D - MACHINE CONTROLS Setting the machine cycling. (On/Off). Setting the maximum sewing speed. If the button is backlit, the function is active. (Range 1000 - 3840 ppm) Setting the foot pedal position. (Possible setting 1step/2steps). Setting correction of the needle bar upper Adjustment for position 1 means, that the machine closes position.

  • Page 27: Tests

    S-4000 ISBH Omron D - MACHINE CONTROLS 4. TESTS W a r n i n g !!! The tests can be carried out by qualified service men only. Inputs BQ1 – The end position sensor BQ1. The symbol signalizes correct function of the sensor of the end position of the cam (HOME) BQ1.

  • Page 28: Program Version

    S-4000 ISBH Omron D - MACHINE CONTROLS 5. PROGRAM VERSION 6. COUNTER RESET Daily cycle counter Servis cycle counter (not reset) Daily cycle counter reset 1-22 Revised:12/2020 E-mail: info@amfreece-cars.cz...

  • Page 29: Parameter Checklist

    S-4000 ISBH Omron D - MACHINE CONTROLS 7. PARAMETER CHECKLIST PARAMETER RANGE SETTING 1 step 2 steps 2 steps 1 repeat 2 repeat 1 repeat ½ repeat 0 - 3 500 - 1000 rpm 1000 1000 - 3840 rpm 3500...

  • Page 30: E - Machine Adjustments

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 1. MACHINE HOME POSITION 1. The needle bar is in the upper position. The needle descends to the right side of the throat plate slot during the first stitch. The marks on the handwheel and cover casting are aligned.

  • Page 31: Main Cam Adjustment

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 2. MAIN CAM ADJUSTMENT 1. Bring the machine to the home position. 2. Tilt the machine on the rest pin and view the main cam assembly. The distance between the control spring and the right shifter block is 2 mm.

  • Page 32: Needle Bar

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 4. NEEDLE BAR 1. Needle bar crank position Turn the handwheel and loosen the screw in the needle bar crank . Turn the handwheel until the needle bar reaches the upper position. Pulley screw...

  • Page 33: Bite

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 5. BITE Before the bite adjustment, remove the pulleycover and the head cover 1. Bite cam a. Check if the machine is in the home position. b. Tilt the machine on the rest pin .
  • Page 34 S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 2. Bite width adjustment To adjust the bite width, first remove the head cover for access to adjustments. The S-4000 ISBH is fitted with a regular bite throat plate , that allows a bite range of 1.5 mm (1/16“) to 2.3 mm (3-32“).

  • Page 35: Feeding

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 6. FEEDING 1. Tilt the sewing head on the rest pin. 2. Bevel Gear Adjustment Manually turn the hand wheel counter clockwise, until the drive spring in the main cam engages with a detent (first row of stitches).

  • Page 36: Slip Clutch

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 7. SLIP CLUTCH The slip clutch pressure is factory set and under normal conditions will not need adjusting. The correct clutch torque setting is 0.43 Nm (60 to 65 inch ounces). Hold the nut and tighten the adjusting screws with a torque screwdriver.

  • Page 37: Adjustment Of Barring Stitches

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 9. ADJUSTMENT OF BARRING STITCHES To properly set the first bar , the second bar must be properly adjusted. 1. Second bar adjustment Insert a piece of paper under the clamp feet. Turn the...
  • Page 38 S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 2. First bar adjustments Turn the handwheel until the control spring engages into a detent. Check the distance 1-2 mm between the control spring and the shifter arm. If the distance is different, move the shifter arm after which is locked by two M4 screws Check the quality of the sewn buttonhole on the paper.

  • Page 39: Space Between The First And Second Row Of Stitches

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 3. The clearance adjustment on the cam during the first bar sewing a. Turn the handwheel until the control engages into the detent of the left shifter arm b. Continue turning the handwheel. The main cam assembly starts turning and moving the rod c.

  • Page 40: Buttonhole Length Change

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 11. BUTTONHOLE LENGTH CHANGE To change the sewn buttonhole length, remove the 7 screws and the cover plate 1. Loosen the screw and move the stop as needed. To the right - the buttonhole is shortened, to the left - the buttonhole is extended.

  • Page 41: Looper Adjustment

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 12. LOOPER ADJUSTMENT Before making this adjustment, follow the below described points: - Turn the handwheel and observe the position of the connecting link at both ends of the looper link arm travel .
  • Page 42 S-4000 ISBH Omron E - MACHINE ADJUSTMENTS The first looper adjustment 1. Bring the machine to the home position and loosen the screws of the looper cam and adjust the looper cam to the lowest position. 2. Loosen the looper set screw and turn the looper to be perpendicular to the hole in the looper holder.
  • Page 43 S-4000 ISBH Omron E - MACHINE ADJUSTMENTS The second looper adjustment 10. Insert the second looper on the looper shaft. 11. Loosen the looper holder screw and move the holder so that the needle passes the center of the looper recess. There must be clearance 0,4 mm between the needle and the looper recess.

  • Page 44: Thread Draw-Off

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 13. THREAD DRAW-OFF 1. Adjustment of the Draw-Off Lever Position The correct adjustment ensures a long enough thread tail for starting the sewing of the next buttonhole. Remove the covers because this mechanism adjustment is performed in the rear of the head. Air supply is necessary for this adjustment.

  • Page 45: Thread Tension

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 14. THREAD TENSION The thread tension influences the appearance of the buttonhole. A thread tension change may be needed if the thread and fabric change. Check to be certain all parts, which contact the thread, are smooth and polished with no burrs or sharp edges.
  • Page 46 S-4000 ISBH Omron E - MACHINE ADJUSTMENTS The correct posit ion of the tension mechanism a. remove the tension assembly from the shaft b. check if the distance between the stud slot edge and the pin is 3.5 mm If incorect, it is necessary to adjust the position on the pin.

  • Page 47: Thread Trimming

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 15. THREAD TRIMMING Trimming mechanism ensures the correct thread trimming after sewing the last stitch. A the trimming hook moves in the direction of arrow, both thread loop legs A and B are pulled forward. When the thread hook approaches the end of the stroke, leg A contact the trimming knife, cutting the thread.

  • Page 48: Machine Head Clamp Feet Adjustment

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 16. MACHINE HEAD CLAMP FEET ADJUSTMENT 1. Adjustment for clamp height Be sure that air supply is switch on and the clamp feet are opened. If clamp feet are not opened, push the clamp Up / Down button.

  • Page 49: Adjustment Of The Stopping Sensor Position

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 3. Clamp feet pressure adjustment The whole length of the clamp feet must hold the sewn work with the same pressure. a. Push the clamp up/down button to close the clamp feet b. To adjust the clamp feet to the correct position, loosen the nut and turn the screw c.

  • Page 50: Changing The Drive Belt

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 18. CHANGING THE DRIVE BELT 1. Dismantle the pulley cover by loosing the screws M4 2. Turn the hand wheel to set the position of the shaft so that the screw on the pulley levels the screw the bearing housing.

  • Page 51: The Main Cam Change

    S-4000 ISBH Omron E - MACHINE ADJUSTMENTS 19. THE MAIN CAM CHANGE 1. Loosen the screws and remove the holder 2. Unscrew the screws and remove the right control spring and the holder 3. Loosen the stud and remove the worm gear hub and the main cam assembly .

  • Page 52: F - Machine Maintenance

    S-4000 ISBH Omron F - MACHINE MAINTENANCE Warning: - Check for damage to electrical cables - Check safety covers for damage and replace if needed immediately - Keep your hands out of the sewing area - Do not modify the machine in any way, which could eliminate safety parts - Do not attach external lights or other devices to the machine´s electrical system...
  • Page 53 S-4000 ISBH Omron F - MACHINE MAINTENANCE 6. Remove the filter cover with cleaning pad . Remove the dust from the cleaning pad or in case of considerable dirt, wash it using a mild detergent. Perform the same cleaning on the rear fan .

  • Page 54: Periodic Maintenance

    S-4000 ISBH Omron F - MACHINE MAINTENANCE 2. PERIODIC MAINTENANCE once a day (8 hours of operation) - cleaning of the sewing mechanism area and inner frame of the - machine - lubrication of mechanisms - see area F4. once a week (40 hours of operation)

  • Page 55: Lubrication Diagram

    S-4000 ISBH Omron F - MACHINE MAINTENANCE 3. LUBRICATION DIAGRAM The machine is mostly equiped with needle and ball bearings, which in combination with single lubrication circuit decrease the requirements for maintenance. Circuit I - with the oil supply in oil indicator for lubrication of the bite, feeding and looper levers and worm gears. In case of replacement of any part of distribution, it is possible to order the tube kits and wicks.

  • Page 56: Machine Lubrication

    S-4000 ISBH Omron F - MACHINE MAINTENANCE 4. MACHINE LUBRICATION 1. It is necessary to lubricate the places shown below before the machine is switched on for the first time or after a long idle period. Use oil ESSO TERESSO 32 or similar quality.
  • Page 57 S-4000 ISBH Omron F - MACHINE MAINTENANCE 5. Tilt the machine head on the rest pin and lubricate the places shown in the picture. Looper shafts Looper cam surfaces Roller Feed cam surfaces Shifter Bite cam surfaces Bevel gears Trimmer shaft 6.

  • Page 58: Machine Disposal

    S-4000 ISBH Omron F - MACHINE MAINTENANCE 5. MACHINE DISPOSAL 1. To ensure machine ecological disposal, it is necessary to remove nonmetallic parts from the machine. To take these parts out, it is necessary to perform the partial dismantling of the machine, remove covers, dismantle the machine arm and remove the frame.

  • Page 59: G - Pneumatic Diagram

    S-4000 ISBH Omron G - PNEUMATIC DIAGRAM 1-53 Revised:12/2020 E-mail: info@amfreece-cars.cz...

  • Page 60: H - Electrical Diagram

    S-4000 ISBH Omron H - ELECTRICAL DIAGRAM 1-54 Revised:12/2020 E-mail: info@amfreece-cars.cz...
  • Page 61 S-4000 ISBH Omron H - ELECTRICAL DIAGRAM 1-55 Revised:12/2020 E-mail: info@amfreece-cars.cz...
  • Page 62 S-4000 ISBH Omron H - ELECTRICAL DIAGRAM 1-56 Revised:12/2020 E-mail: info@amfreece-cars.cz...
  • Page 63 S-4000 ISBH Omron H - ELECTRICAL DIAGRAM 1-57 Revised:12/2020 E-mail: info@amfreece-cars.cz...
  • Page 64 S-4000 ISBH Omron H - ELECTRICAL DIAGRAM 1-58 Revised:12/2020 E-mail: info@amfreece-cars.cz...
  • Page 65 S-4000 ISBH Omron TROUBLESHOOTING MECHANICAL FAULTS ........................2 ERROR MESSAGES OF THE CONTROL PANEL DISPLAY ............5 ERROR MESSAGES OF THE SERVO ................... 6 ELECTRICAL FAULTS ........................7 Revised: 12/2020 2 -1 E-mail: info@amfreece-cars.cz...

  • Page 66: Mechanical Faults

    S-4000 ISBH Omron TROUBLESHOOTING 1. MECHANICAL FAULTS SYMPTOM POSSIBLE CAUSE PROBABLE SOLUTION Thread breakage Needle, looper, throat plate Change damaged parts damaged Incorrect needle and sewing Check the adjustment of the mechanism adjustment mechanisms Thread tension is too tight Adjust correct tension Incorrect threading See section C3 for checking.
  • Page 67 S-4000 ISBH Omron TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE PROBABLE SOLUTION Stitch skip at the beginning Needle, looper, throat plate Change damaged parts of sewing damaged Needle thread end is too short See section E13, point 2 Incorrectly adjusted needle See section E4...
  • Page 68 S-4000 ISBH Omron TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE PROBABLE SOLUTION Thread not trimmed at the Trimming knife damaged Replace end of the cycle Low air pressure at Check supply pressure trimming cylinder Flow control valve to See section E14 point 3...

  • Page 69: Error Messages Of The Control Panel Display

    S-4000 ISBH Omron TROUBLESHOOTING 2. ERROR MESSAGES OF THE CONTROL PANEL DISPLAY SYMPTOM POSSIBLE CAUSE PROBABLE SOLUTION Low air pressure Hand valve of the regulator Open the hand valve switched off - if assembled The air pressure in the air...

  • Page 70: Error Messages Of The Servo

    In order to eliminate these messages, switch off the machine for 1 minutes. Then switch the machine on again. The error message should not appear on the display. If the message appears - call AMF Reece service. PWR - Power supply indication:...

  • Page 71: Electrical Faults

    S-4000 ISBH Omron TROUBLESHOOTING 4. ELECTRICAL FAULTS SYMPTOM POSSIBLE CAUSE PROBABLE SOLUTION No power supply Check main power supply or voltage in the socket Fuse F1 failure Replace fuse PN 12.0008.4.665 When switch Power switch QS1 damaged Replace the switch 12.0008.4.835...
  • Page 72 Sensor BQ1 failure Replace the sensor 06.2400.0.009 Check the servo amplifier To set the servo amplifier and servo - call AMF Reece service, alternatively replace motor 12.0010.4.177 and servo amplifier 24.8001.2.005 When sewing operation Fork is not fitted properly Check the connector X3...
  • Page 73 S-4000 ISBH Omron TABLE OF CONTENTS NEEDLE BAR ....................3-2 CLAMPING ....................3-4 THREAD TRIMMER ..................3-6 SHIFTER MECHANISM .................3-8 FEED MECHANISM ..................3-10 LOOPER MECHANISM ................3-14 BASE ......................3-16 BITE MECHANISM ..................3-18 THREAD DRAW-OFF MECHANISM .............. 3-20 MAIN CAM ....................

  • Page 74: Needle Bar

    S-4000 ISBH Omron NEEDLE BAR Revised: 06/2023 E-mail: info@amfreece-cars.cz...
  • Page 75 S-4000 ISBH Omron NEEDLE BAR PART NUMBER DESCRIPTION QTY. 22.0195.0.000 Needle Bar 01.2193.0.000 Screw 4-60 24.0510.0.000 Needle Bar Holder  08.6400.5.005 Set Screw M5 x 5 01.7447.1.000 Porcelain Guide  22.0520.0.000 Needle Bar Clamp 01.6551.0.000 Retaining Ring  22.0230.0.000 Cupped Washer ...

  • Page 76: Clamping

    S-4000 ISBH Omron CLAMPING Revised: 06/2023 E-mail: info@amfreece-cars.cz...
  • Page 77 S-4000 ISBH Omron CLAMPING PART NUMBER DESCRIPTION QTY. 07.6045.0.046 22.0173.0.000 Clamp Toggle Pivot Pin 24.0036.1.000 Cylinder Mounting Bracket See Page 3-53 Cylinder — 08.6002.5.022 Screw M5 x 22 24.0035.1.000 Cylinder Clevis 08.6002.5.012 Screw M5 x 12 08.6402.4.004 Set Screw M4 x 4 24.0158.1.000...

  • Page 78: Thread Trimmer

    S-4000 ISBH Omron THREAD TRIMMER Revised: 06/2023 E-mail: info@amfreece-cars.cz...
  • Page 79 S-4000 ISBH Omron THREAD TRIMMER PART NUMBER DESCRIPTION QTY. 20.0093.2.004 Trimmer Hook 20.0092.0.004 Trimmer Actuator 01.2386.0.000 Hex Screw 3/16-36 x .5 12.1045.3.001 E-Clip 24.0080.0.000 Trimmer Shaft 24.0003.0.000 Trimmer Pivot 08.6000.4.012 Screw M4 x 12 24.0004.0.000 Trimmer Clamp Lever 07.6045.0.042 E-Clip 24.0005.0.000...

  • Page 80: Shifter Mechanism

    S-4000 ISBH Omron SHIFTER MECHANISM Revised: 06/2023 E-mail: info@amfreece-cars.cz...
  • Page 81 S-4000 ISBH Omron SHIFTER MECHANISM PART NUMBER DESCRIPTION QTY. 08.6000.4.010 Screw M4 x 10 22.2653.0.000 Left Shifter Arm Spring 08.6000.4.016 Screw M4 x 16 22.2652.0.000 Left Shifter Arm 08.6000.4.005 Screw 22.2657.0.000 Right Shifter Arm Spring 22.2656.0.000 Right Shifter Arm 24.3074.0.000 Nut M6 24.3073.0.000...

  • Page 82: Feed Mechanism

    S-4000 ISBH Omron FEED MECHANISM Revised: 06/2023 3-10 E-mail: info@amfreece-cars.cz...
  • Page 83 S-4000 ISBH Omron FEED MECHANISM PART NUMBER DESCRIPTION QTY. 08.6100.3.030 Screw M3 x 30 22.0114.0.000 Feed Brake Pressure Plate 22.0121.0.000 Slip Clutch Drive Washer 22.0354.0.000 Slip Clutch Feed Gear 24.0126.0.000 Friction Washer  22.0312.0.000 Slip Clutch Feed Shaft 22.0061.0.000 Clamp Plate Gear Rack Retainer 07.6440.0.033...
  • Page 84 S-4000 ISBH Omron FEED MECHANISM Revised: 06/2023 3-12 E-mail: info@amfreece-cars.cz...
  • Page 85 S-4000 ISBH Omron FEED MECHANISM PART NUMBER DESCRIPTION QTY. 22.0021.0.000 Spring Retain Block 22.0353.0.000 Steel Bevel Gear  22.0032.0.000 Bearing Shoulder Screw 07.6321.0.025 Bearing 22.0031.0.000 Bearing Spacer 08.6710.5.000 Nut M5 22.0232.0.000 Washer 22.0110.0.000 Shoulder Nut M5 22.0022.0.000 Pivot Shaft 08.6850.8.000 Flat Washer M8 08.6700.8.000...

  • Page 86: Looper Mechanism

    S-4000 ISBH Omron LOOPER MECHANISM Revised: 06/2023 3-14 E-mail: info@amfreece-cars.cz...
  • Page 87 S-4000 ISBH Omron LOOPER MECHANISM PART NUMBER DESCRIPTION QTY. 08.6400.4.004 Set Screw M4 x 4 22.2442.0.000 Looper Spacer 22.2410.0.000 Looper Shaft Block 08.6100.5.020 Screw M5 x 20 22.2440.0.000 Looper Shaft 01.1382.0.000 Screw 20.0094.0.000 Trimmer Knife 20.0111.0.000 First Looper 23.2106.0.000 First Looper Holder 20.0112.0.000...

  • Page 88: Base

    S-4000 ISBH Omron BASE — S4000 ISBH Embedded Machine Revised: 06/2023 3-16 E-mail: info@amfreece-cars.cz...
  • Page 89 S-4000 ISBH Omron BASE PART NUMBER DESCRIPTION QTY. 24.0111.0.000 Base Sound Deadener  08.6100.5.012 Screw M5 x 12 08.6100.5.012 Screw M5 x 12 08.6200.5.012 Screw M5 x 12 22.1010.0.000 Base Hinge 24.0155.0.000 Base Hinge 24.0038.0.000 Base Gasket  12.8000.1.028 CE”” Label 08.6100.5.020...

  • Page 90: Bite Mechanism

    S-4000 ISBH Omron BITE MECHANISM Revised: 06/2023 3-18 E-mail: info@amfreece-cars.cz...
  • Page 91 S-4000 ISBH Omron BITE MECHANISM PART NUMBER DESCRIPTION QTY. 08.6000.6.025 Screw M6 x 25 22.0008.0.000 Bite Lever  24.0055.0.000 Bite Shaft 22.0063.0.000 Bite Shaft Retainer 08.6100.3.008 Screw M3 x 8 08.6000.3.010 Screw M3 x 10 22.0183.0.000 Collar*Dia. 8 08.6000.4.014 Screw M4 x 14 22.0110.0.000...

  • Page 92: Thread Draw-Off Mechanism

    S-4000 ISBH Omron THREAD DRAW-OFF MECHANISM J 1 A Revised: 06/2023 3-20 E-mail: info@amfreece-cars.cz...
  • Page 93 S-4000 ISBH Omron THREAD DRAW-OFF MECHANISM PART NUMBER DESCRIPTION QTY. 08.6710.6.000 Nut M6  24.0037.0.000 Cylinder Clevis  08.6000.5.016 Screw M5 x 16 07.6045.0.042 E-Clip 24.0011.0.000 Knife Drive Lever 24.0014.0.000 Pivot 08.6000.4.010 Screw M4 x 10 24.0010.0.000 Clamp Collar 24.0009.0.000 Washer 08.6000.4.016...

  • Page 94: Main Cam

    S-4000 ISBH Omron MAIN CAM Revised: 06/2023 3-22 E-mail: info@amfreece-cars.cz...
  • Page 95 S-4000 ISBH Omron MAIN CAM PART NUMBER DESCRIPTION QTY. 22.2607.0.000 Drive Disk/Worm Gear Hub 22.2627.0.000 Shoulder Nut 22.2626.0.000 Drive Disk Switch Spring 07.6440.0.037 Spring 24.3076.0.000 Stop Disk 24.3070.0.000 Feed Reversing Cam 22.3069.0.000 Washer 24.3077.0.000 Barring Cam ISBH 08.6100.5.010 Screw M5 x 10 22.0137.0.000...

  • Page 96: Head Assembly

    S-4000 ISBH Omron HEAD ASSEMBLY J 4 B S e e P a g e 3 - 5 3 27 28 15 16 S e e P a g e 3 - 5 3 Revised: 06/2023 3-24 E-mail: info@amfreece-cars.cz...
  • Page 97 S-4000 ISBH Omron HEAD ASSEMBLY PART NUMBER DESCRIPTION QTY. Servomotor — See Page 3-37;41; 45 08.6850.5.000 Washer M5 08.6000.5.016 Screw M5 x 16 24.6000.5.000 Head 08.6200.5.008 Screw M5 x 8 22.0054.0.000 Upper Thread Guide 08.6000.8.025 Screw M8 x 25 22.0058.0.000 Sewing Head Latch 07.6045.0.037...

  • Page 98: Bedplate

    S-4000 ISBH Omron BEDPLATE 12 13 15 16 29 30 31 26 32 33 33 36 37 38 39 40 33 37 - S 4000 ISBH Embedded Machine Revised: 06/2023 3-26 E-mail: info@amfreece-cars.cz...
  • Page 99 Screw (Only ISBH model) 24.3054.0.000 Material Guide 08.6120.3.008 Screw M3 x 8 24.3055.0.000 Cover Plate 24.3081.0.000 Cover Plate Embedded 05.1394.0.000 AMF Reece Label - small 22.0143.0.000 Screw 22.3022.0.000 Front Stop 08.6100.4.006 Screw M4 x 6 22.0408.1.000 Trimmer Cover Plate 24.6100.1.000 Bedplate ISBH 07.6045.0.054...

  • Page 100: Covers

    S-4000 ISBH Omron COVERS Revised: 06/2023 3-28 E-mail: info@amfreece-cars.cz...
  • Page 101 S-4000 ISBH Omron COVERS PART NUMBER DESCRIPTION QTY. 08.6100.5.016 Screw M5 x 16 24.0068.0.000  24.0067.0.000 Fan Rack 08.6850.5.000 Washer M5 Fan Assembly See Page Electrical 24.6004.1.001 Pulley Cover  08.6000.4.070 Screw M4 x 70 08.6000.3.040 Screw M3 x 40 08.6000.3.016...

  • Page 102: Lubrication

    S-4000 ISBH Omron LUBRICATION Revised: 06/2023 3-30 E-mail: info@amfreece-cars.cz...
  • Page 103 S-4000 ISBH Omron LUBRICATION PART NUMBER DESCRIPTION QTY. 24.0141.0.000 Tubing  24.0139.0.000 Lubricating Wick  22.0229.0.000 Straight Fitting 08.6000.4.006 Screw M4 x 6 22.0120.0.000 Holder 22.0104.0.000 Oil Gauge Reservoir 17.0095.1.329 Wheel  22.0108.0.000 Wick Holder 17.0027.1.799 Spring 17.0082.6.000 Clamp 08.6000.3.006 Screw M3 x 6 17.0094.5.310...

  • Page 104: Table

    S-4000 ISBH Omron TABLE Revised: 06/2023 3-32 E-mail: info@amfreece-cars.cz...
  • Page 105 S-4000 ISBH Omron TABLE PART NUMBER DESCRIPTION QTY. 24.0142.0.050 Table Assembly ISBH 08.6700.8.000 M8 Nut 17.0019.0.441 Washer 17.0095.1.272 Washer  12.0008.6.900 Machine Rest Table Pin 12.0008.6.801 Rubber Spring  12.1016.1.000 Nail  04.1416.0.003 Label “No. xxxx” 24.0142.0.000 Table  08.6742.8.000 M8 Nut 24.0069.9.063...
  • Page 106 S-4000 ISBH Omron TABLE EMBEDDED - ISBH 33 32 Revised: 06/2023 3-34 E-mail: info@amfreece-cars.cz...
  • Page 107 S-4000 ISBH Omron TABLE EMBEDDED - ISBH PART NUMBER DESCRIPTION QTY. 04.9024.0.001 Frame Assembly 08.6700.8.000 Nut M8 17.0019.0.441 Washer 17.0095.1.272 Rubber Washer  12.0008.6.801 Rubber Spring 12.0008.4.777 Plug 24.0069.9.040 Latch For Kit  08.6676.3.020 Screw 3,5 x 20 (17) 04.9024.0.900 Table ...
  • Page 108 S-4000 ISBH Omron TABLE - ROLLER KIT - EXTRA PARTS Revised: 06/2023 3-36 E-mail: info@amfreece-cars.cz...
  • Page 109 S-4000 ISBH Omron TABLE - ROLLER KIT - EXTRA PARTS PART NUMBER DESCRIPTION QTY. 08.6312.8.060 SCREW M8-60 08.6702.8.000 NUT M8 08.6802.8.000 SPRING WASHER M8 08.6852.8.000 WASHER M8 12.0008.6.527 ROLLER 12.0008.6.528 ROLLER WITH BRAKE 24.0170.0.000 PLATE 24.0171.0.000 PLATE Revised: 06/2023 3-37...

  • Page 110: Electrical - I

    S-4000 ISBH Omron ELECTRICAL - I N IN IS C P L IE IC IN Revised: 06/2023 3-38 E-mail: info@amfreece-cars.cz...
  • Page 111 S-4000 ISBH Omron ELECTRICAL - I PART NUMBER DESCRIPTION QTY. 12.0008.4.570 Plug 12.0010.4.191 Emergency Stop Button 12.8000.0.047 Label 08.6102.3.008 Screw 24.0148.0.000 Emergency Stop Cover 06.2400.0.012 Emergency Stop/fan cable 06.2400.0.010 Cable X3 12.0008.4.710 Screw Kit 12.0010.4.390 LAMP (1)* 08.6962.4.025 VRUT 3,9X25 (1)* 04.9024.0.951...
  • Page 112 S-4000 ISBH Omron ELECTRICAL - I N IN IS C P L IE IC IN Revised: 06/2023 3-40 E-mail: info@amfreece-cars.cz...
  • Page 113 S-4000 ISBH Omron ELECTRICAL - I PART NUMBER DESCRIPTION QTY. 06.2400.0.008 Cable X14 12.8000.0.112 Label Cable 230V 1PH 24.0059.9.069 12.0008.4.777 Plug — Extra parts Revised: 06/2023 3-41 E-mail: info@amfreece-cars.cz...

  • Page 114: Electrical - Itable Embedded

    S-4000 ISBH Omron ELECTRICAL - I TABLE EMBEDDED Revised: 06/2023 3-42 E-mail: info@amfreece-cars.cz...
  • Page 115 S-4000 ISBH Omron ELECTRICAL - I TABLE EMBEDDED PART NUMBER DESCRIPTION QTY. 12.0008.4.570 Plug 12.0008.4.563 Emergency Stop Button 12.8000.0.047 Label 08.6102.3.008 Screw 24.0148.0.000 Emergency Stop Cover 24.0069.9.023 Emergency Stop Cable 12.0008.4.777 Plug 12.0008.4.215 Plug 24.0069.9.004 Cable 12.0008.4.710 Screw Kit 12.0010.4.390...
  • Page 116 S-4000 ISBH Omron ELECTRICAL - I TABLE EMBEDDED Revised: 06/2023 3-44 E-mail: info@amfreece-cars.cz...
  • Page 117 S-4000 ISBH Omron ELECTRICAL - I TABLE EMBEDDED PART NUMBER DESCRIPTION QTY. See Page 3-49 Cable — 08.6215.4.006 Screw 24.0059.9.069 08.6702.4.000 Nut M4 — Extra parts Revised: 06/2023 3-45 E-mail: info@amfreece-cars.cz...

  • Page 118: Electrical - Ii

    S-4000 ISBH Omron ELECTRICAL - II 0 0 0 I S B 0 0 0 I S B — S4000 ISBH (Embedded) Revised: 06/2023 3-46 E-mail: info@amfreece-cars.cz...
  • Page 119 S-4000 ISBH Omron ELECTRICAL - II PART NUMBER DESCRIPTION QTY. 24.0069.9.009 Pedal Assembly 24.0069.9.038 Pedal Assembly 06.8800.0.001 Pedal  12.0008.4.296 Bushing  24.0069.9.003 Cable 24.0069.9.306 Cable (1)* 08.6312.8.020 Screw M8x20 08.6852.8.000 Washer M8 24.0097.0.000 Holder Pedal 08.6100.4.012 Screw M4x12 08.6802.8.000 Spring Washer M8 08.6702.8.000...
  • Page 120 S-4000 ISBH Omron ELECTRICAL - III Revised: 06/2023 3-48 E-mail: info@amfreece-cars.cz...
  • Page 121 S-4000 ISBH Omron ELECTRICAL - III PART NUMBER DESCRIPTION QTY. TERMINAL x1 TERMINAL X0 - POWER TERMINAL X12 - FAN 24.8001.2.005 SERVODRIVE (U1) 12.0010.4.071 EXTPASION BLOCK (LT) 24.8001.2.001 12.0010.4.067 PORT RS 232 12.0008.4.050 BRIDGE GND 12.0010.4.078 FILTER (Z2) 12.0008.4.665 FUSE T2A 12.0008.4.664...

  • Page 122: Panel Kit

    S-4000 ISBH Omron PANEL KIT Revised: 06/2023 3-50 E-mail: info@amfreece-cars.cz...
  • Page 123 S-4000 ISBH Omron PANEL KIT PART NUMBER DESCRIPTION QTY. 24.0198.0.000 PANEL HOLDER-DELTA 24.8001.2.023 DISPLAY 07.6600.0.004 CLAMP CABLE 08.6832.4.000 WASHER M4 08.6032.4.008 SCREW M4-8 08.6663.5.025 SCREW 4,8-25 06.2400.0.023 CABLE DISPLAY DELTA 06.2400.0.019 CABLE DISPLAY DELTA POWER 12.0008.4.366 RUBBER PLUG 29 Revised: 06/2023 3-51 E-mail: info@amfreece-cars.cz...

  • Page 124: Pneumatics

    S-4000 ISBH Omron PNEUMATICS 10 15 18 16 20 21 11 14 16 18 27 26 Revised: 06/2023 3-52 E-mail: info@amfreece-cars.cz...
  • Page 125 S-4000 ISBH Omron PNEUMATICS PART NUMBER DESCRIPTION QTY. 08.6000.5.012 Screw M5x12 08.6832.5.000 Washer M5 12.0010.3.138 Regulator Holder 12.0010.3.137 Regulator 08.6850.5.000 Washer M5 08.6700.5.000 Nut M5 12.0008.3.420 Connector 12.0010.3.030 Silencer 12.0008.3.829 Air Supply Block Assembly 12.8000.0.016 Label Kit 12.0008.4.058 Clip ...

  • Page 126: Accessories

    S-4000 ISBH Omron ACCESSORIES Revised: 06/2023 3-54 E-mail: info@amfreece-cars.cz...
  • Page 127 S-4000 ISBH Omron ACCESSORIES PART NUMBER DESCRIPTION QTY. 12.0008.3.607 Connector Dia 8 12.0008.3.608 Connector Dia 10 20.0094.0.000 Trimmer Knife 22.0209.0.000 Looper Gauge 24.0030.0.000 Main Shaft Pulley Bracket 24.0024.0.000 Needle Bar Shaft Pulley Bracket 02.0750.2.110 Needles, Size 90 05.1322.0.000 Oiler ...

  • Page 128: Accessories Extra Parts

    S-4000 ISBH Omron ACCESSORIES EXTRA PARTS PRIPOJENI TRAFA DO SKRINE SVORKOVNICE MODRA HNEDA Revised: 06/2023 3-56 E-mail: info@amfreece-cars.cz...
  • Page 129 S-4000 ISBH Omron ACCESSORIES EXTRA PARTS PART NUMBER DESCRIPTION QTY. 03.5524.0.022 Laser Light Kit 12.0010.4.143 Laser LR 14 LD Line Red 12.0010.4.142 Bracket 36 Balljoint 24.3084.0.000 Led Holder Left 12.0008.6.982 Screw Plastic M4-8 08.6400.4.004 Screw M4 x 4 Din 916 08.6000.4.014...

  • Page 130: Mechanical Indexer - Linear Guide - Extra Parts

    S-4000 ISBH Omron MECHANICAL INDEXER - LINEAR GUIDE - EXTRA PARTS Revised: 06/2023 3-58 E-mail: info@amfreece-cars.cz...
  • Page 131 S-4000 ISBH Omron MECHANICAL INDEXER - LINEAR GUIDE - EXTRA PARTS PART NUMBER DESCRIPTION QTY. 08.6002.3.008 SCREW M3x8 08.6002.4.010 SCREW M4x10 08.6100.3.006 SCREW M3x6 12.2070.1.012 GUIDE 24.4026.1.000 PILLOW BLOCK 24.4027.0.000 PLASTIC JOINT 24.4028.1.000 STUD ASM. 24.4087.0.000 STUD 24.4426.0.000 CROSS LEVER...

  • Page 132: Mechanical Indexer - Cross Lever Assembly - Extra Parts

    S-4000 ISBH Omron MECHANICAL INDEXER - CROSS LEVER ASSEMBLY - EXTRA PARTS Revised: 06/2023 3-60 E-mail: info@amfreece-cars.cz...
  • Page 133 S-4000 ISBH Omron MECHANICAL INDEXER - CROSS LEVER ASSEMBLY - EXTRA PARTS PART NUMBER DESCRIPTION QTY. 08.6002.2.010 SCREW M2x10 08.6312.6.016 SCREW M6x16 08.6402.5.005 SCREW M5x5 08.6852.6.000 WASHER M6 12.1010.2.052 PIN 6x40 12.2070.1.075 LINEAR RAIL 12.2070.1.076 LINEAR GUIDE 24.4418.0.000 CONNECTING PART 24.4419.0.000...

  • Page 134: Mechanical Indexer - Clamping Connecting Parts - Extra Parts

    S-4000 ISBH Omron MECHANICAL INDEXER - CLAMPING CONNECTING PARTS - EXTRA PARTS Revised: 06/2023 3-62 E-mail: info@amfreece-cars.cz...
  • Page 135 S-4000 ISBH Omron MECHANICAL INDEXER - CLAMPING CONNECTING PARTS - EXTRA PARTS PART NUMBER DESCRIPTION QTY. 08.6002.4.014 SCREW M4x14 08.6102.4.006 SCREW M4x6 08.6102.4.012 SCREW M4x12 08.6852.4.000 WASHER M4 24.4103.0.000 BRACKET, INDEXER CLAMPING 24.4420.0.000 BRACKET 24.4421.0.000 CONNECTING LEVER Revised: 06/2023 3-63...

  • Page 136: Mechanical Indexer - Clamping Assembly - Extra Parts

    S-4000 ISBH Omron MECHANICAL INDEXER - CLAMPING ASSEMBLY - EXTRA PARTS Revised: 06/2023 3-64 E-mail: info@amfreece-cars.cz...
  • Page 137 S-4000 ISBH Omron MECHANICAL INDEXER - CLAMPING ASSEMBLY - EXTRA PARTS PART NUMBER DESCRIPTION QTY. 06.2400.2.027 MECHANICAL INDEXER Y10 ASSY 08.6000.3.004 SCREW M3-4 08.6000.3.005 SCREW M3-5 08.6002.4.008 SCREW M4-8 08.6002.4.012 SCREW M4-12 08.6102.5.008 SCREW M5-8 08.6102.5.012 SCREW M5-12 08.6202.4.008 SCREW M4-8 08.6202.4.010...

  • Page 138: Mechanical Indexer - Base - Extra Parts

    S-4000 ISBH Omron MECHANICAL INDEXER - BASE - EXTRA PARTS Revised: 06/2023 3-66 E-mail: info@amfreece-cars.cz...
  • Page 139 S-4000 ISBH Omron MECHANICAL INDEXER - BASE - EXTRA PARTS PART NUMBER DESCRIPTION QTY. 01.5002.0.000 SPRING-COMPRESSION 08.6002.3.008 SCREW M3-8 08.6002.3.012 SCREW M3-12 08.6002.3.014 SCREW M3-14 08.6002.3.016 SCREW M3-16 08.6002.3.020 SCREW M3-20 08.6002.3.035 SCREW M3-35 08.6002.5.025 SCREW M5-25 08.6102.3.006 SCREW M3-6 08.6202.3.005...

  • Page 140: Mechanical Indexer - Range Mechanism - Extra Parts

    S-4000 ISBH Omron MECHANICAL INDEXER - RANGE MECHANISM - EXTRA PARTS Revised: 06/2023 3-68 E-mail: info@amfreece-cars.cz...
  • Page 141 S-4000 ISBH Omron MECHANICAL INDEXER - RANGE MECHANISM - EXTRA PARTS PART NUMBER DESCRIPTION QTY. 08.6002.3.006 SCREW M3x6 08.6002.4.012 SCREW M4x12 08.6402.4.004 SCREW M4x4 24.4406.0.000 STUD 24.4407.0.000 FLANGE 24.4408.0.000 FLANGE 24.4409.0.000 INDEXER PLATE - RANGE 12mm 24.4410.0.000 INDEXER PLATE - RANGE 13mm 24.4411.0.000...

  • Page 142: Mechanical Indexer Pedal - Extra Parts

    S-4000 ISBH Omron MECHANICAL INDEXER PEDAL - EXTRA PARTS Revised: 06/2023 3-70 E-mail: info@amfreece-cars.cz...
  • Page 143 S-4000 ISBH Omron MECHANICAL INDEXER PEDAL - EXTRA PARTS PART NUMBER DESCRIPTION QTY. 24.0097.0.000 FOOT PEDAL HOLDER ASSY. 06.2400.2.026 MECHANICAL INDEXER PEDAL - OPTION 08.6852.3.000 WASHER M3 08.6802.3.000 SPRING WASHER M3 08.6002.3.012 SCREW M3-12 08.6002.3.014 SCREW M3-14 08.6852.8.000 WASHER M8 08.6312.8.020...

  • Page 144: Recommended Spare Parts

    S-4000 ISBH Omron RECOMMENDED SPARE PARTS Part Number Parts Description 07.6321.0.025 BRG, BALL CAM F. (INA)#LR605NPPU 20.0093.0.000 HOOK TRIMMER 20.0094.0.000 TRIMMER KNIFE 20.0111.0.000 LOOPER*FIRST 20.0112.0.000 LOOPER*SECOND 22.2657.0.000 RIGHT SHIFTER ARM SPRING 22.2653.0.000 LEFT SHIFTER ARM SPRING 23.2356.2.052 USA-KNIFE-1/2/13 M 23.2356.2.054 USA-KNIFE-5/8/16 MM 23.2356.2.055...
  • Page 145 S-4000 ISBH Omron INDEX PART NUMBER PAGE DET PART NUMBER PAGE DET PART NUMBER PAGE DET 36542017 3-67 06.2400.0.019 3-51 08.6000.4.005 3-13 00.2751.3.602 3-39 06.2400.0.023 3-51 08.6000.4.005 3-25 00.2751.3.602 3-43 06.2400.0.621 3-39 12* 08.6000.4.005 3-55 01.1382.0.000 3-15 06.2400.0.621 3-43 14* 08.6000.4.006 3-27...
  • Page 146 S-4000 ISBH Omron INDEX PART NUMBER PAGE DET PART NUMBER PAGE DET PART NUMBER PAGE DET 08.6002.4.010 3-59 08.6200.5.008 3-25 08.6412.5.020 3-67 08.6002.4.012 3-65 08.6200.5.010 3-57 08.6532.8.050 3-33 08.6002.4.012 3-69 08.6200.5.012 3-17 08.6652.3.016 3-33 08.6002.4.014 3-63 08.6200.5.014 3-17 07* 08.6652.3.016 3-35 08.6002.5.012...
  • Page 147 S-4000 ISBH Omron INDEX PART NUMBER PAGE DET PART NUMBER PAGE DET PART NUMBER PAGE DET 08.6802.4.000 3-39 08.6852.8.000 3-37 12.0008.4.058 3-53 08.6802.4.000 3-43 08.6852.8.000 3-47 12.0008.4.072 3-25 08.6802.6.000 3-35 ((1)) 08.6852.8.000 3-71 12.0008.4.072 3-47 08.6802.8.000 3-35 15 (4)+((4)) 08.6882.0.000 3-35 ((12)) 12.0008.4.072 3-57...
  • Page 148 S-4000 ISBH Omron INDEX PART NUMBER PAGE DET PART NUMBER PAGE DET PART NUMBER PAGE DET 12.0008.4.863 3-39 12.0010.4.191 3-39 17.0082.8.017 12.0008.4.863 3-43 12.0010.4.390 3-39 09* (1)* 17.0082.8.082 3-25 12.0008.4.885 3-39 12.0010.4.390 3-43 11* (1)* 17.0094.0.200 3-33 12.0008.6.001 3-55 12.1010.2.003 3-25 17.0094.5.310 3-31...
  • Page 149 S-4000 ISBH Omron INDEX PART NUMBER PAGE DET PART NUMBER PAGE DET PART NUMBER PAGE DET 22.0100.0.000 3-11 22.0305.0.000 3-11 22.2652.0.000 22.0100.0.000 3-15 22.0309.0.000 3-11 22.2653.0.000 22.0100.0.000 3-19 22.0309.0.050 3-13 22.2655.0.000 22.0104.0.000 3-31 22.0312.0.000 3-11 22.2656.0.000 22.0105.0.000 3-15 22.0313.0.000 3-11 22.2657.0.000...
  • Page 150 S-4000 ISBH Omron INDEX PART NUMBER PAGE DET PART NUMBER PAGE DET PART NUMBER PAGE DET 24.0050.1.000 3-53 24.0167.0.000 3-25 24.4016.0.000 3-65 24.0051.0.066 3-27 24.0170.0.000 3-37 24.4017.0.000 3-65 24.0055.0.000 3-19 24.0171.0.000 3-37 24.4018.0.000 24.0059.9.017 3-39 24.0196.0.000 3-27 24.4026.1.000 3-59 24.0059.9.017 3-43 24.0198.0.000 3-51...
  • Page 151 S-4000 ISBH Omron INDEX PART NUMBER PAGE DET PART NUMBER PAGE DET PART NUMBER PAGE DET 24.8001.2.005 3-49 24.8001.2.023 3-51 70.4165.1.125 3-39 Revised: 06/2023 E-mail: info@amfreece-cars.cz...
  • Page 152 S-4000 ISBH Omron INDEX Revised: 06/2023 E-mail: info@amfreece-cars.cz...

Table of Contents
