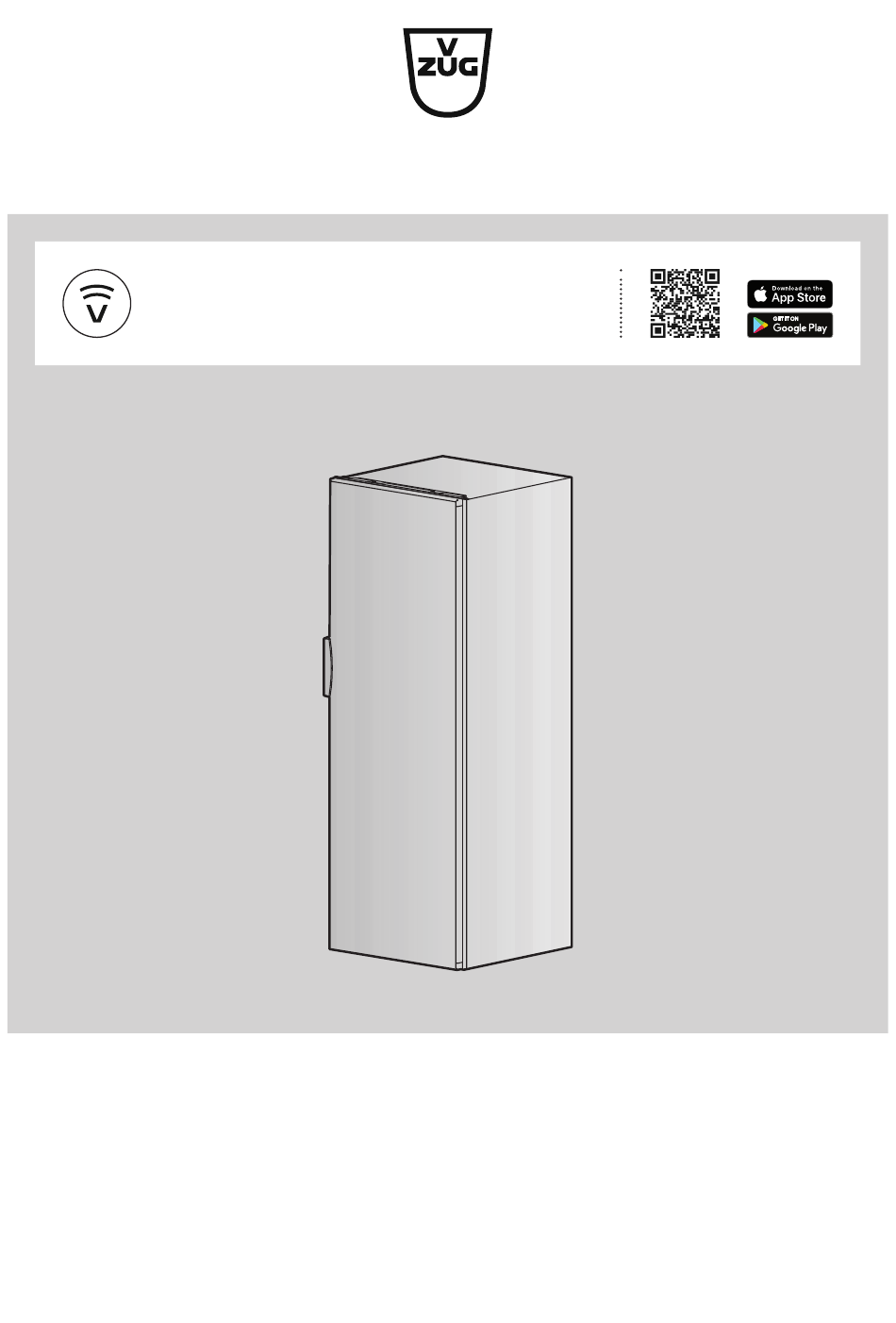

- Page 1 V-ZUG-Home Install the app, network your appliances and benefit from a wide range of useful functions. Operating instructions Cooler V2000 178FGI | 178GI Cooler V2000 152FGI | 152GI Refrigerator/freezer...
- Page 2 SMS 55 / Euro 60 Cooler V2000 152FGI CO2T-51152 51152 SMS 55 / Euro 60 Cooler V2000 152GI CO2T-51153 51153 SMS 55 / Euro 60 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2024...
-
Page 3: Table Of Contents
Switching the appliance off ....... 12 Service & Support 35 Appliance functions 13 Activating/Deactivating appliance functions.. 13 Description of functions ........ 18 V-ZUG-Home 19 Conditions ............ 19 Initial set-up ............ 19 Interior fittings 20 Glass shelves and door trays...... 20 Bottle drawer............ -
Page 4: Safety Precautions
Safety precautions Symbols used General safety precautions Unauthorized repairs could result in unforeseen dangers for the user, for which the manufacturer cannot ac- ▪ Read the operating instruc- cept liability. Repairs should only be tions before using the appli- undertaken by an authorized ser- vice technician, otherwise any sub- ance for the first time. -
Page 5: Appliance Installation
1 Safety precautions ▪ All plastering, plasterboarding, wall pa- ently installed electrical install- pering and painting work is to be car- ation in accordance with the ried out prior to installing the appliance. installation regulations. ▪ Efficient repairs can only be guaranteed if it is possible to de-install the complete ▪... - Page 6 1 Safety precautions Correct use Climate class ▪ The appliance is designed for use in This appliance is intended for use in a lim- the home for cooling and storing food. ited ambient temperature range to ensure The appliance must only be used as de- proper operation.
- Page 7 1 Safety precautions ▪ Store oils and fats upright in closed Caution: Risk of injury! containers. They must not come into ▪ Be careful not to put fingers in the door contact with the plastic parts or the hinges, as there is otherwise a risk of door seal.
-
Page 8: Using For The First Time
Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials as well as any protective film from the in- terior. ▸ Clean the interior and accessories with lukewarm water or a mild soapy solution (wa- ter and washing-up liquid) and dry thoroughly. -
Page 9: Appliance Description

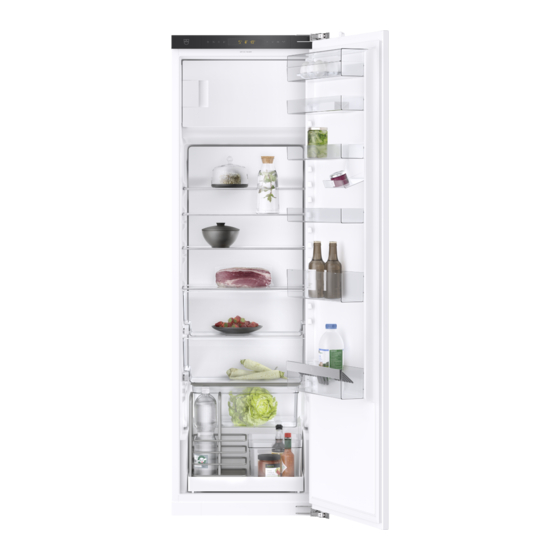

3 Appliance description Appliance description Structure The direction in which the door opens can be changed. Please contact our Cus- tomer Services if necessary. Cooler V2000 178FGI/152FGI Cooler V2000 178GI/152GI Temperature zones Freezer compartment Defrost drainage channel Refrigerator compartment KeepFresh Box Features Vegetable drawer Door tray with cover... -
Page 10: Operating And Display Elements
BACK: Cancel or discard entry ON/OFF: to switch appliance on and off, hold depressed for 3 seconds Function User setting PartyCooling Display brightness Holiday function Switch off button tone Sabbath mode V-ZUG-Home Value and status display Temperature unit Refrigerating/Freezing zone Fast cooling/freezing active... -
Page 11: Operation
4 Operation Operation Switching the appliance on ▸ Plug in the appliance at the mains socket. – «OF» appears on the left- and right-hand side of the display for 30 seconds. ▸ Hold the button depressed for 3 seconds. – The appliance is switched on. A newly installed appliance takes around 6 hours (empty state / without any food inside) to reach the operating temperatures. -
Page 12: Selecting Appliance Functions
4 Operation Selecting appliance functions ▸ Touch the function button. – The corresponding settings level is called up. ▸ Select appliance functions using the navigation arrows (see page 13). If a button is touched that has no function in the particular context, a double acoustic signal is emitted and «- -»... -
Page 13: Appliance Functions Activating/Deactivating Appliance Functions
5 Appliance functions Appliance functions Activating/Deactivating appliance functions Function Description Temperature set- Temperature selection for the zones ting ▸ Follow the instructions in the «Setting the tem- perature» section (see page 11). Timer Acoustic alarm emitted when the selected duration (from 0 hours 5 minutes to 9 hours 55 minutes) is up. - Page 14 5 Appliance functions Function Description Fast cooling/ Preparing the refrigerating zones ideally for loading food and food freezing items after a shopping trip. Activating ▸ Touch the button. ▸ Select the refrigerator or freezer compartment using the buttons. ▸ Confirm with the button.
- Page 15 5 Appliance functions Function Description Holiday function Reduced cooling capacity for the refrigerator compartment. The freezer compartment remains at the set temperature value. Activating ▸ Touch the button. ▸ Select the button until flashes in the dis- play. ▸ Confirm with the button.
- Page 16 5 Appliance functions Function Description V-ZUG-Home Interaction with the appliance via the app (see page 19). Activating ▸ Touch the button. ▸ Touch the button repeatedly until flashes in the display. ▸ Confirm with the button. ▸ Touch the button repeatedly until «On»...
- Page 17 5 Appliance functions Function Description Switch off button Switching the button tone on/off. tone Activating ▸ Touch the button. ▸ Touch the button repeatedly until flashes in the display. ▸ Confirm with the button. – The setting is activated and shown in the display.
-
Page 18: Description Of Functions
Sabbath mode is activated is ended, no acoustic signal is emitted. V-ZUG-Home With V-ZUG-Home, you can access your appliances over the V-ZUG App to, for instance: ▪ query the appliance status ▪ receive push notifications ▪ change appliance settings... -
Page 19: V-Zug-Home
– A 6-digit PIN appears in the display of the household appliance. ▸ Enter the 6-digit PIN in the V-ZUG App and confirm the bluetooth pairing request. – The name of the active WLAN/Wi-Fi appears in the V-ZUG App and then you are prompted to enter the WLAN/Wi-Fi password. -
Page 20: Interior Fittings
7 Interior fittings Interior fittings Glass shelves and door trays The height of the glass shelves in the refrigerator compartment and the door trays on the inside of the refrigerator compartment door can be adjusted. The half-shelf enables taller vessels to be stored. The door tray with bottle holder can also be placed in another position on the refri- gerator compartment door. -
Page 21: Storing Food
8 Storing food Storing food How to arrange food in the appliance The temperature differences between the different glass shelves are very small, which fa- cilitates storage. The example arrangement shows the zones and areas in the appliance that are generally suitable for certain food and food items. Cooler V2000 178FGI/152FGI Cooler V2000 178GI/152GI Meat, fish, vegetables, fruit, bakery products, ice cream, ready-made products,... -
Page 22: Shelf Life Of Food
8 Storing food Shelf life of food ▸ High-protein and high-fat foods are delicate/perishable and have a relatively short storage life. ▸ Observe best-before and use-by dates. ▸ Food can generally be stored for longer at low temperature settings. A temperature of 5 °C in the refrigerator compartment and -18 °C in the freezer compartment provide a balanced setting in terms of food quality and energy consumption –... -
Page 23: Care And Maintenance
9 Care and maintenance Care and maintenance For the hygienic storage of food, the interior should always be kept clean. Do not use any abrasive cleaning agents or scouring cloths to clean the appliance. Take care not to press too hard when cleaning the plastic surfaces. Do not use acidic or strongly alkaline cleaning agents on metal surfaces. -
Page 24: Operating And Display Elements
9 Care and maintenance Operating and display elements ▸ Clean the operating and display elements just with a slightly damp cloth. Door seals ▸ Regularly check the door seals and ▸ if dirty clean using a soft brush and clean water. Wipe dry. Defrosting Refrigerator compartment The refrigerator compartment regularly defrosts automatically, rendering manual defrost-... -
Page 25: Noises And Warnings
10 Noises and warnings Noises and warnings 10.1 Operating noise The appliance can make various noises during operation. Although the appliance is noise-optimized, some noise cannot be eliminated completely. This noise depends on the size of the appliance, how it is installed and the cooling requirements (e.g. fast cool- ing), the ambient temperature and the installation conditions. -
Page 26: Trouble-Shooting
11 Trouble-shooting Confirming/Acknowledging warnings ▸ Touch any button. ▸ Further information: Trouble-shooting (see page 26) When the Sabbath mode is activated, there are no visual or acoustic warning signals. Trouble-shooting This section lists faults that can be solved simply by following the instructions given. If the fault cannot be remedied, please contact Customer Services. - Page 27 11 Trouble-shooting Malfunction Possible cause Solution/Measures Illumination is not ▪ Sabbath mode is active. ▸ Hold the button depressed working for 3 seconds. ▪ If the illumination turns on: The problem is remedied. ▪ If the appliance switches off («OF» in the display): ▸...
- Page 28 11 Trouble-shooting Malfunction Possible cause Solution/Measure Error messages A3, ▪ Ambient temperature out- ▸ Bring the temperature of the A4, A5 side operating range of room where the appliance is in- 10–38 °C. stalled to within the operating range of 10–38 °C. Malfunction Possible cause Solution/Measures...
-
Page 29: Tips And Tricks
▪ Store food that releases moisture in closed containers or covered in the refrigerator compartment. Moisture reduces the cooling capacity. ▪ For ideal air circulation: Do not store food and food items too close to each other. ▪ Turn the V-ZUG-Home function off when not in use. - Page 30 ▸ See identification plate Spare parts V-ZUG Ltd provides spare parts for 15 years after the making available on the market of the last appliance with this type designation. Deviations from this are subject to consider- ation of and compliance with the applicable ecodesign regulations on the availability of spare parts.
- Page 31 14 Disposal Disposal 14.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 14.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
- Page 32 Index Appliance Identification plate......... 9, 30, 35 Increased cooling capacity......14 Disposal............ 31 Initial set-up ............. 5, 8 Switching off .......... 12, 24 Instructions for use ..........5 Switching on .......... 11 Appliance functions Selecting............ 12 KeepFresh Box..........20 Setting............ 13 Appliance installation .........
- Page 33 15 Index Timer ..............13 Trouble-shooting ..........26 Type............... 2 User setting............14 Using for the first time........5, 8 Validity..............2 Vegetable drawer..........23 V-ZUG App ............19 V-ZUG-Home........16, 18, 19 Warranty claim..........30 WLAN connection ..........19...
- Page 34 Notes...
- Page 35 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
- Page 36 Holiday function Switch off button tone Sabbath mode V-ZUG-Home Value and status display Temperature unit Refrigerating/Freezing zone Fast cooling/freezing act- 1249153-01 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
