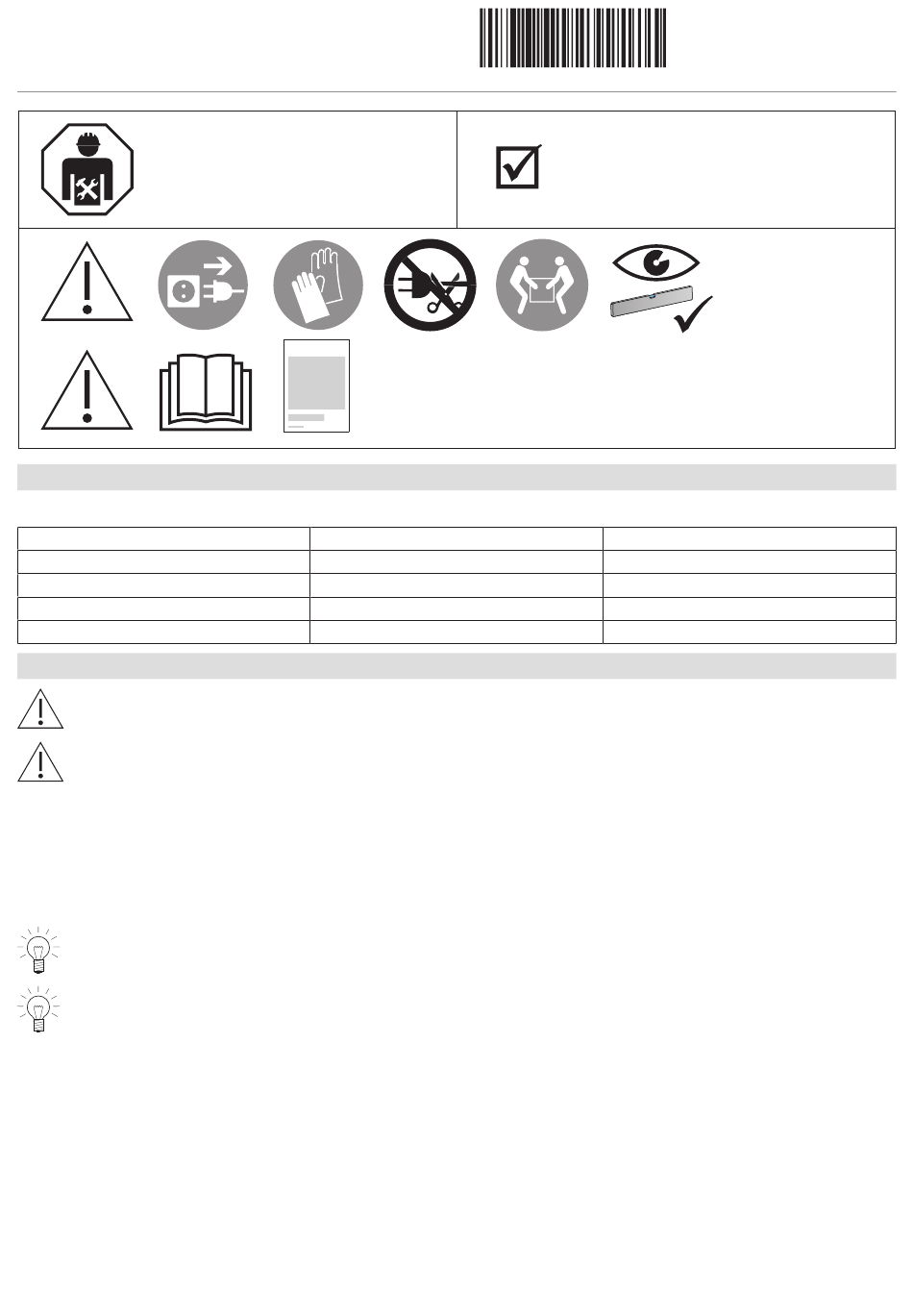

Installation instructions
CombiCooler/Cooler/WineCooler/Freezer
V6000 Supreme, integrated
Validity
These installation instructions apply to the following models:
Model designation
CombiCooler V6000 Supreme
Cooler V6000 Supreme
WineCooler V6000 Supreme
Freezer V6000 Supreme
General notes
Observe the local regulations. If installing into a combustible material, the guidelines and standards for fire protec-
tion must be complied with.
Electrical connections must be carried out by qualified personnel in accordance with the guidelines and standards
for low-voltage installations and the specifications of the local electricity supply companies.
A plug-in appliance may only be connected to a socket outlet with earthing contact, installed according to specifications. An
all-pole mains isolating device with 3 mm contact opening should be provided in the house wiring system. Switches, plug and
socket devices, circuit breakers and fusible cut-outs which are accessible after installation and which have all-poles switching
are permissible as isolating devices. Effective earthing and separately installed neutral and earth conductors ensure safe and
fault-free operation. After installation, live parts and cables with basic insulation must not be accessible. Check old installa-
tions.
▸
Refer to the identification plate for information on the required mains voltage, current type and fuse protection.
The appliance is available with left- and right-door opening.
The appliance door cannot be reversed or modified for technical reasons.
1091916-R01
CCO6T–51096
CO6T–51098
Type
CCO6T-51096
CO6T-51098
WC6T-51097
FR6T-51099
1
1091916-R01
07/05/2020
WC6T–51097
FR6T–51099
Size system
90
90
60
60
