Operating instructions

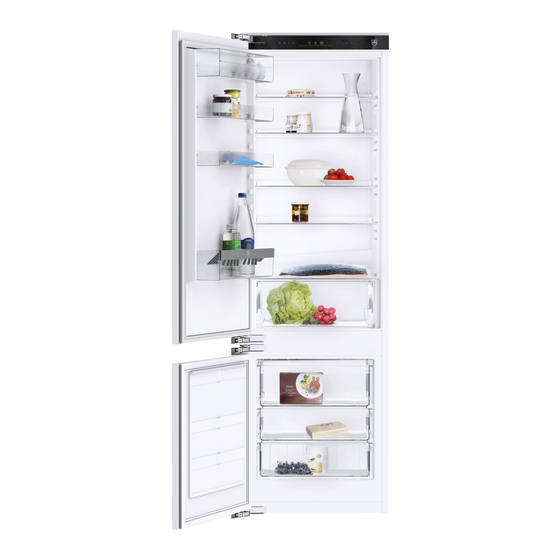

CombiCooler V2000 178NI
Refrigerator/freezer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CombiCooler V2000 178NI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-ZUG CombiCooler V2000 178NI

Summary of Contents for V-ZUG CombiCooler V2000 178NI

  • Page 1 Operating instructions CombiCooler V2000 178NI Refrigerator/freezer...
  • Page 2 Validity These operating instructions apply to: Model designation Type Model number Size system CombiCooler V2000 178NI CCO2T-51106 51106 SMS 55 / Euro 60 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2020...

  • Page 3: Table Of Contents

    Basic procedure .......... 10 Switching the appliance on ....... 10 Setting the temperature ........ 10 Switching the appliance off........ 11 Using the appliance functions  11 Brief description of the appliance functions... 16 V-ZUG-Home  18 Conditions ............. 18 Initial set-up............ 18 Glass shelves and door trays  19 Tips and tricks  19...

  • Page 4: Safety Precautions

    Safety precautions Symbols used Denotes important safety precau- ▪ This appliance can be used tions. Failure to observe said precautions by children aged 8 and above can result in injury or in damage to and by persons with reduced the appliance or fittings! physical, sensory or mental Information and precautions that capabilities, or lack of experi-...

  • Page 5: Appliance-Specific Safety Precautions

    1 Safety precautions ▪ Refer to the identification plate for in- turer or its Customer Services formation on the required mains or a similarly qualified person voltage, current type and fuse protec- in order to avoid hazard. tion. ▪ All plastering, plasterboarding, wall pa- Appliance-specific safety pering and painting work is to be car- precautions...
  • Page 6 1 Safety precautions ▪ WARNING: Do not locate multiple port- fect the functioning of the appliance. If able socket-outlets or portable power the appliance is not working properly or supplies at the rear of the appliance. in case a repair is needed, follow the in- ▪...
  • Page 7 1 Safety precautions ▪ Store oils and fats upright in closed Caution: Risk of injury! containers. They must not come into ▪ Be careful not to put fingers in the door contact with the plastic parts or the hinges. as there is otherwise a risk of door seal.

  • Page 8: Using For The First Time

    Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials as well as any protective film from the in- terior. ▸ Clean the interior and accessories with lukewarm water or a mild soapy solution (wa- ter and washing-up liquid) and dry thoroughly.

  • Page 9: Operating And Display Elements

    BACK: Cancel/discard entry ON/OFF (hold depressed for 3 seconds) Display elements: Operating mode User setting SilentPlus Display brightness PartyCooling Switch off button tone Holiday function V-ZUG-Home Sabbath mode Temperature unit Value and status display Refrigerating/Freezing zone Freezing zone active Fast cooling/freezing active...

  • Page 10: Operating The Appliance

    4 Operating the appliance Operating the appliance Basic procedure ▪ Use the navigation arrows (up/left) and (down/right) to select a settable value and to navigate through the operating steps. ▪ The selected set values are displayed for 5 seconds when the door is opened, and then the actual temperature values are displayed.

  • Page 11: Switching The Appliance Off

    5 Using the appliance functions ▸ Confirm with the button to accept the entry. – The temperature setting has been entered successfully. – The temperature will be reached in a few hours, depending on the setting. The effective temperature may at times be different from the selected set value if the door is open for an extended period of time or if warm food has been placed inside.
  • Page 12 5 Using the appliance functions Function Description Fast cooling/ Preparing the refrigerating zones ideally for loading food and food freezing items after a shopping trip. Activating ▸ Touch the button. ▸ Select the refrigerator or freezer compartment using ▸ Confirm with the button.
  • Page 13 5 Using the appliance functions Function Description SilentPlus Noise-reduced operation Activating ▸ Touch the button. ▸ Select the button until appears flashing. ▸ Confirm with the button. ▸ Adjust the temperature selected for the freezer compartment using the buttons if ne- cessary.
  • Page 14 5 Using the appliance functions Function Description Holiday function Reduced cooling capacity for the refrigerator compartment (14 °C). The freezer compartment remains at the set temperature value. Activating ▸ Touch the button. ▸ Select the button until appears flashing. ▸ Confirm with the button.
  • Page 15 5 Using the appliance functions Function Description V-ZUG-Home Interaction with the appliance via the app (see page 18). Activating ▸ Touch the button. ▸ Select the button until appears flashing. ▸ Confirm with the button and select «On» in the display using ▸...

  • Page 16: Brief Description Of The Appliance Functions

    5 Using the appliance functions Function Description Temperature unit Switching the unit of temperature. °C / °F ▸ Touch the button. ▸ Select the button until appears flashing. ▸ Confirm with the button. Demo mode* This setting enables specialist retailers to put the appliance into the showroom mode for demonstration purposes.
  • Page 17 5 Using the appliance functions Fast cooling/freezing The fast cooling/freezing functions allow larger quantities of food, e.g. after a shopping trip or freezing pre-cooked meals, to be cooled more quickly. The temperature of the re- frigerating zone is lowered to the coldest value for 24 hours and similarly the temperat- ure of the freezing zone is lowered to the coldest value for 54 hours.

  • Page 18: V-Zug-Home

    – A 6-digit PIN appears in the display of the appliance. ▸ Enter the 6-digit PIN in the V-ZUG App and confirm the bluetooth pairing request. – The name of the active WLAN/Wi-Fi appears in the V-ZUG App and then you are prompted to enter the WLAN/Wi-Fi password.

  • Page 19: Glass Shelves And Door Trays

    7 Glass shelves and door trays Further information about V-ZUG-Home and availability can be found at home.vzug.com or in the Operating instructions for V-ZUG-Home. Glass shelves and door trays The height of the glass shelves in the refrigerator compartment and the door trays on the inside of the refrigerator compartment door can be adjusted.

  • Page 20: Storing Food And Food Items

    8 Tips and tricks Storing food and food items The example arrangement shows the zones and areas in the appliance that are generally suitable for certain food and food items. 1 Cheese, butter, jam, tortes, desserts, milk and milk products, pre-prepared or cooked meals, ready-made products, sausages, meat, poultry,...

  • Page 21: Notes On Saving Energy

    ▪ Store food that releases moisture in closed containers or covered in the refrigerator compartment. Moisture reduces the cooling capacity. ▪ For ideal air circulation: Do not store food and food items too close to each other. ▪ Turn the SilentPlus and V-ZUG-Home functions off when not in use. Care and maintenance Cleaning For the hygienic storage of food, the interior should always be kept clean.

  • Page 22: Defrosting

    10 Noises and warnings Ensure that no cleaning water runs through the defrost drainage channel into the evaporation tray. Risk of causing damage to the appliance. Defrosting The fully automatic NoFrost system keeps the freezer compartment frost-free. The appli- ance regularly defrosts automatically, rendering manual defrosting unnecessary. Keep the collection channel and the drain pipe clean so that the water can flow un- impeded.

  • Page 23: Warnings

    10 Noises and warnings Keyword Cause Remarks Buzzing Compressor/fan Normal operating noise made by the cooling unit. Gurgling, bubbling, Cooling circuit Normal operating noise as refrigerant flows hissing through the cooling circuit. Hissing Cooling circuit Normal operating noise as refrigerant is injected into the evaporator.

  • Page 24: Trouble-Shooting

    11 Trouble-shooting Trouble-shooting This section lists faults that can be solved simply by following the instructions given. If the fault cannot be remedied, please contact Customer Services. Before contacting Cus- tomer Services: ▸ please note down the serial number (SN), which is shown on the identification plate, as well as ▸...
  • Page 25 11 Trouble-shooting Malfunction Possible cause Solution/Measures Illumination is flash- ▪ Appliance door is left open ▸ Close the appliance door. ing and an acoustic for longer than 5 minutes. – If the alarm is still being emit- signal is emitted. ▪...
  • Page 26 11 Trouble-shooting Malfunction Possible cause Solution/Measures Error message F_ _ ▪ Various situations can lead ▸ Contact Customer Services. to an F message. Malfunction Possible cause Solution/Measures The temperature and ▪ The refrigerator compart- ▸ Touch any button. refrigerating zone(s) ment temperature is 10 °C –...

  • Page 27: Technical Data

    ▸ See identification plate Spare parts V-ZUG Ltd provides spare parts for 15 years after the making available on the market of the last appliance with this type designation. Deviations from this are subject to consider- ation of and compliance with the applicable ecodesign regulations on the availability of spare parts.

  • Page 28: Disposal

    13 Disposal Disposal 13.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 13.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
  • Page 29 Index Appliance disposal .......... 28 Model designation ..........2 Appliance functions ......... 11 Appliance installation ......... 5 Noise-reduced operation........ 13 Noises ..............22 Button tone on/off..........15 ON/OFF ............9, 32 Care and maintenance ........21 Operating and display elements...... 9 Cleaning.............
  • Page 30 Validity..............2 V-ZUG App ............18 V-ZUG-Home..........15, 18 Warnings............23 Warranty claim..........27 WLAN connection ..........18...
  • Page 31 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
  • Page 32 Temperature unit Value and status display Refrigerating/Freezing zone Freezing zone active Fast cooling/freezing active 1115262-01 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
