Operating instructions

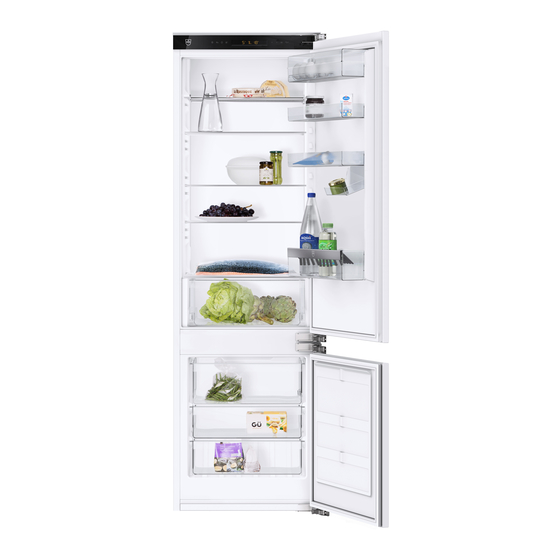

CombiCooler V4000
Refrigerator/freezer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CombiCooler V4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for V-ZUG CombiCooler V4000

  • Page 1 Operating instructions CombiCooler V4000 Refrigerator/freezer...
  • Page 2 The model number corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Model designation Model number Type Size system CombiCooler V4000 51086 CCOI178NBH6VIR SMS 55 / Euro 60 CCOI178NBH6VIL Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2019...
  • Page 3: Table Of Contents

    Basic procedure .......... 10 Switching the appliance on ....... 10 Setting the temperature ........ 10 Switching the appliance off........ 11 Using the appliance functions  11 Brief description of the appliance functions... 17 V-ZUG-Home  19 Conditions ............. 19 Initial set-up............ 19 Glass shelves and door trays  20 Tips and tricks  20...
  • Page 4: Safety Precautions

    Safety precautions Symbols used Denotes important safety precau- ▪ This appliance can be used tions. Failure to observe said precautions by children aged 8 and above can result in injury or in damage to and by persons with reduced the appliance or fittings! physical, sensory or mental Information and precautions that capabilities, or lack of experi-...
  • Page 5: Appliance Installation

    1 Safety precautions ▪ Allow a 200 cm² ventilation opening/ turer or its Customer Services niche both top and bottom to ensure or a similarly qualified person ideal ventilation. in order to avoid hazard. ▪ The direction of the door opening can be changed.
  • Page 6 1 Safety precautions ▪ Dispose of the packaging material in Note on use accordance with local regulations. ▪ Do not operate any electrical devices inside the refrigerator compartment Correct use and/or freezer compartment. ▪ The appliance is designed for use in ▪...
  • Page 7 1 Safety precautions Caution: Risk to life! ▪ Packaging materials, e.g. plastic film and polystyrene, can be dangerous for children. Danger of suffocation! Keep packaging material away from children. ▪ When carrying out maintenance work on the appliance, including replacing light bulbs (if how to remove them is described in the Operating instructions), cut off the electricity supply to the appli-...
  • Page 8: Using For The First Time

    Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials as well as any protective film from the in- terior. ▸ Clean the interior and accessories with lukewarm water or a mild soapy solution (wa- ter and washing-up liquid) and dry thoroughly.
  • Page 9: Operating And Display Elements

    ON/OFF (hold depressed for 3 seconds) Display elements: Operating User setting mode MonoFridge Display brightness SilentPlus Switch off button tone PartyCooling V-ZUG-Home Holiday function Temperature unit Sabbath mode Value and status display Refrigerating/Freezing zone Freezing zone active Fast cooling/fast freezing...
  • Page 10: Operation

    4 Operation Operation Basic procedure ▪ Use the navigation arrows (up/left) and (down/right) to select a settable value and to navigate through the operating steps. ▪ The selected set values are displayed for 5 seconds when the door is opened, and then the actual temperature values are displayed.
  • Page 11: Switching The Appliance Off

    5 Using the appliance functions – Touch the button and select the desired temperature for the freezer com- partment. ▸ Confirm with the button to accept the entry. – The temperature setting has been entered successfully. – The temperature will be reached after a few hours, depending on the setting. The effective temperature may at times be different from the selected set value if the door is open for an extended period of time or if warm foods have been placed inside.
  • Page 12 5 Using the appliance functions Function Description Fast cooling/fast Preparing the refrigerating zones ideally for loading food and food freezing items after a shopping trip. Activating ▸ Touch the button. ▸ Select the refrigerator or freezer compartment using ▸ Confirm with the button.
  • Page 13 5 Using the appliance functions Function Description MonoFridge The freezer compartment operates as a second refrigerator com- partment. Activating ▸ Touch the button. – appears flashing. ▸ Confirm with the button. ▸ Adjust the temperature selected for the freezer compartment or now newly defined as a refri- gerator compartment using the but- tons.
  • Page 14 5 Using the appliance functions Function Description PartyCooling Operation with increased cooling capacity. Activating ▸ Touch the button. ▸ Select the button until appears flashing. ▸ Confirm with the button. ▸ Select the desired duration (12, 24 or 48 hours) using the buttons.
  • Page 15 ▸ Hold the button depressed for 3 seconds. – The function is deactivated; the illumina- tion and display are switched on. V-ZUG-Home Interaction with the appliance via the app (see page 19). Activating ▸ Touch the button. ▸ Select the button until appears flashing.
  • Page 16 5 Using the appliance functions Function Description Display bright- Adjusting the level of brightness for the display. ness Selecting ▸ Touch the button. ▸ Select the button until appears flashing. ▸ Confirm with the button. ▸ Select the desired level of brightness (1 / 2 / 3) using the buttons.
  • Page 17: Brief Description Of The Appliance Functions

    5 Using the appliance functions Function Description Demo mode* This setting enables specialist retailers to put the appliance into the showroom mode for demonstration purposes. The demo mode enables functions to be demonstrated without the appli- ance being switched on. Note(*): This setting is not recommended for private use.
  • Page 18 5 Using the appliance functions Fast cooling/fast freezing The fast cooling and fast freezing functions allow larger quantities of food, e.g. after a shopping trip or freezing pre-cooked meals, to be cooled more quickly. The temperature of the refrigerating zone is lowered to the coldest value for 24 hours and similarly the temperature of the freezing zone is lowered to the coldest value for 54 hours.
  • Page 19: V-Zug-Home

    6 V-ZUG-Home V-ZUG-Home With V-ZUG-Home, you can access your appliances over the V-ZUG App to, for instance: ▪ query the appliance status ▪ receive push notifications ▪ change appliance settings. V-ZUG-Home Conditions The following conditions must be met for full use of V-ZUG-Home: ®...
  • Page 20: Glass Shelves And Door Trays

    7 Glass shelves and door trays Glass shelves and door trays The height of both the glass shelves in the refrigerator compartment and the door trays on the inside of the refrigerator compartment door can be adjusted. The split glass shelves enable taller vessels to be stored.
  • Page 21: Storing Food And Food Items

    8 Tips and tricks Storing food and food items The temperature differences between the different glass shelves are very small, which fa- cilitates storage. The example arrangement shows the zones and areas in the appliance that are generally suitable for certain food and food items. 1 Cheese, butter, jam, tortes, desserts, milk and milk products,...
  • Page 22: Notes On Saving Energy

    ▪ Store food that releases moisture in closed containers or covered in the refrigerator compartment. Moisture reduces the cooling capacity. ▪ For ideal air circulation: Do not store food and food items too close to each other. ▪ Turn the SilentPlus and V-ZUG-Home functions off when not in use. Care and maintenance Cleaning For the hygienic storage of food, the interior should always be kept clean.
  • Page 23: Noises And Warnings

    10 Noises and warnings Noises and warnings 10.1 Operating noise The appliance can make various noises during operation. Although the appliance is noise-optimized, some noise cannot be eliminated completely. This noise depends on the size of the appliance, how it is installed and the cooling requirements (e.g. fast cool- ing), the ambient temperature and the installation conditions.
  • Page 24: Trouble-Shooting

    11 Trouble-shooting Note on when the temperature value is raised If a temperature value (actual value) is 10 °C above the selected set value for more than two hours, an acoustic signal is emitted for a limited time. The relevant zone and the zone temperature flash in the display.
  • Page 25 11 Trouble-shooting Malfunction Possible cause Solution/Measures Illumination is not ▪ Sabbath mode is active. ▸ Hold the button depressed working. for 3 seconds. ▪ If the illumination turns on: The problem is remedied. ▪ If the appliance switches off («OF» in the display): ▸...
  • Page 26 11 Trouble-shooting Malfunction Possible cause Solution/Measures Error messages ▪ Temperature sensor is de- ▸ Contact Customer Services. F10–F15 fective. – The appliance switches to the emergency mode. The con- tents are kept refrigerated, but the appliance cannot record the current temperature value. Malfunction Possible cause Solution/Measure...
  • Page 27: Technical Data

    12 Technical data Malfunction Possible cause Solution/Measures The temperature and ▪ The refrigerator compart- ▸ Touch any button. refrigerating zone(s) ment temperature is 10 °C – The current temperature value flash and/or an higher than the set temper- is displayed; flashes until acoustic signal is ature or the freezer com- the set temperature is reached.
  • Page 28: Disposal

    13 Disposal Disposal 13.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 13.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
  • Page 29 Index Appliance disposal .......... 28 Model designation ..........2 Appliance functions ......... 11 Model number ............. 2 Appliance installation ......... 5 MonoFridge............13 Button tone on/off..........16 Noise-reduced operation........ 13 Noises ..............23 Care and maintenance ........22 Cleaning............. 22 ON/OFF ............
  • Page 30 Using for the first time........5, 8 Validity..............2 V-ZUG App ............19 V-ZUG-Home..........15, 19 Warnings............23 WLAN connection ..........19...
  • Page 31 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
  • Page 32 Value and status display Refrigerating/Freezing zone Freezing zone active Fast cooling/fast freezing active 1061561-R01 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
