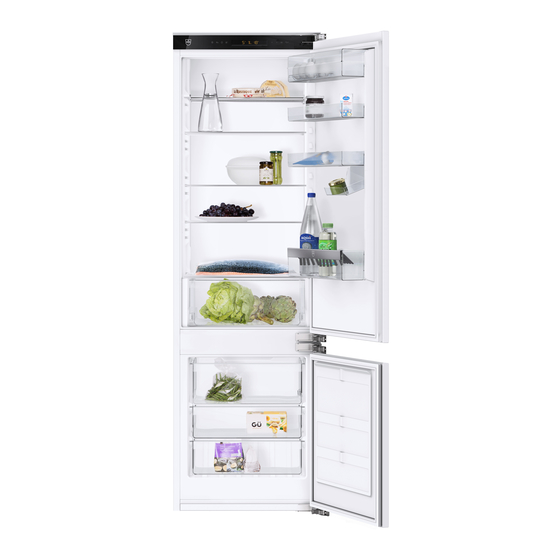

V-ZUG CombiCooler V4000 178NI Operating Instructions Manual
  1. Manuals
  2. Brands
  3. V-ZUG Manuals
  4. Refrigerator
  5. CombiCooler V4000 178NI
  6. Operating instructions manual

V-ZUG CombiCooler V4000 178NI Operating Instructions Manual

Hide thumbs Also See for CombiCooler V4000 178NI:
Table of Contents

Advertisement

Quick Links

Download this manual
V-ZUG-Home
Install the app, network your appliances and
benefit from a wide range of useful functions.
Operating instructions
CombiCooler V4000 178NI | V2000 152NI
Refrigerator/freezer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CombiCooler V4000 178NI and is the answer not in the manual?

Questions and answers

Related Manuals for V-ZUG CombiCooler V4000 178NI

Summary of Contents for V-ZUG CombiCooler V4000 178NI

  • Page 1 V-ZUG-Home Install the app, network your appliances and benefit from a wide range of useful functions. Operating instructions CombiCooler V4000 178NI | V2000 152NI Refrigerator/freezer...
  • Page 2 Model number Size system CombiCooler V4000 178NI CCO4T-51108 51108 SMS 55 / Euro 60 CombiCooler V2000 152NI CCO2T-51107 51107 SMS 55 / Euro 60 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2022...

  • Page 3: Table Of Contents

     35 Selecting appliance functions ...... 11 Cancelling settings .......... 11 Switching the appliance off........ 11 Appliance functions  12 Activating/Deactivating appliance functions .. 12 Description of functions........ 18 V-ZUG-Home  21 Conditions ............. 21 Initial set-up............ 21 Glass shelves and door trays  22 Storing food  22 How to arrange food in the appliance..... 22 Shelf life of food........... 23...

  • Page 4: Safety Precautions

    Safety precautions Symbols used Denotes important safety precau- ▪ This appliance can be used tions. Failure to observe said precautions by children aged 8 and above can result in injury or in damage to and by persons with reduced the appliance or fittings! physical, sensory or mental Information and precautions that capabilities, or lack of experi-...

  • Page 5: Appliance-Specific Safety Precautions

    1 Safety precautions ▪ Refer to the identification plate for in- turer or its Customer Services formation on the required mains or a similarly qualified person voltage, current type and fuse protec- in order to avoid hazard. tion. ▪ All plastering, plasterboarding, wall pa- Appliance-specific safety pering and painting work is to be car- precautions...
  • Page 6 1 Safety precautions ▪ WARNING: Do not locate multiple port- fect the functioning of the appliance. If able socket-outlets or portable power the appliance is not working properly or supplies at the rear of the appliance. in case a repair is needed, follow the in- ▪...
  • Page 7 1 Safety precautions ▪ Store oils and fats upright in closed Caution: Risk of injury! containers. They must not come into ▪ Be careful not to put fingers in the door contact with the plastic parts or the hinges. as there is otherwise a risk of door seal.

  • Page 8: Using For The First Time

    Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials as well as any protective film from the in- terior. ▸ Clean the interior and accessories with lukewarm water or a mild soapy solution (wa- ter and washing-up liquid) and dry thoroughly.

  • Page 9: Operating And Display Elements

    ON/OFF (hold depressed for 3 seconds) Display elements: Operating User setting mode MonoFridge Display brightness SilentPlus Switch off button tone PartyCooling V-ZUG-Home Holiday function Temperature unit Sabbath mode Value and status display Refrigerating/Freezing zone Freezing zone active Fast cooling/fast freezing...

  • Page 10: Operation

    4 Operation Operation Switching the appliance on ▸ Plug in the appliance at the mains socket. – «OF» appears on the left- and right-hand side of the display for 30 seconds. ▸ Hold the button depressed for 3 seconds. – The appliance is switched on. A newly installed appliance takes around 10 hours (empty state / without any food inside) to reach normal operating temperatures.

  • Page 11: Selecting Appliance Functions

    4 Operation ▸ Confirm with the button to accept the entry. – The temperature setting has been entered successfully. – The temperature will be reached in a few hours, depending on the setting. The effective temperature may at times be different from the selected set value if the door is open for an extended period of time or if warm food has been placed inside.

  • Page 12: Appliance Functions Activating/Deactivating Appliance Functions

    5 Appliance functions Appliance functions Activating/Deactivating appliance functions Function Description Temperature set- Temperature selection for the zones ting ▸ Follow the instructions in the «Setting the tem- perature» section (see page 10). Timer Acoustic alarm emitted when the selected duration (from 0 hours 05 minutes to 9 hours 55 minutes) is up.
  • Page 13 5 Appliance functions Function Description Fast cooling/ Preparing the refrigerating zones ideally for loading food and food freezing items after a shopping trip. Activating ▸ Touch the button. ▸ Select the refrigerator or freezer compartment using the buttons. ▸ Confirm with the button.
  • Page 14 5 Appliance functions Function Description MonoFridge The freezer compartment operates as a second refrigerator com- partment or a cold storage compartment (2 °C). Activating ▸ Touch the button. – flashes in the display. ▸ Confirm with the button. ▸ Adjust the temperature for the freezer compart- ment or now newly defined as a refrigerator compartment using the buttons.
  • Page 15 5 Appliance functions Function Description PartyCooling Operation with increased cooling capacity Activating ▸ Touch the button. ▸ Touch the button repeatedly until flashes in the display. ▸ Confirm with the button. ▸ Select the desired duration (12, 24 or 48 hours) using the buttons.
  • Page 16 ▸ Hold the button depressed for 3 seconds. – The function is deactivated; the illumina- tion and display are switched on. V-ZUG-Home Interaction with the appliance via the app (see page 21). Activating ▸ Touch the button. ▸ Touch the...
  • Page 17 5 Appliance functions Function Description Display bright- Adjusting the level of brightness for the display ness Selection ▸ Touch the button. ▸ Touch the button repeatedly until flashes in the display. ▸ Confirm with the button. ▸ Select the desired level of brightness (1 / 2 / 3) using the buttons.

  • Page 18: Description Of Functions

    5 Appliance functions Function Description Demo mode* This setting enables specialist retailers to put the appliance into the showroom mode for demonstration purposes. The demo mode enables functions to be demonstrated without the appli- ance being switched on. Note(*): This setting is not recommended for private use because no cooling takes place in the refrigerator.
  • Page 19 5 Appliance functions SilentPlus This operating mode is designed to produce low noise emissions. The energy consump- tion of the appliance may be slightly increased. Since the appliance is quiet during nor- mal operation, the effect of SilentPlus is particularly perceptible at higher ambient tem- peratures.
  • Page 20 Check the quality of the food. Do not eat food that has thawed! Risk of food poisoning. V-ZUG-Home With V-ZUG-Home, you can access your appliances over the V-ZUG App to, for instance: ▪ query the appliance status ▪ receive push notifications ▪...

  • Page 21: V-Zug-Home

    – A 6-digit PIN appears in the display of the household appliance. ▸ Enter the 6-digit PIN in the V-ZUG App and confirm the bluetooth pairing request. – The name of the active WLAN/Wi-Fi appears in the V-ZUG App and then you are prompted to enter the WLAN/Wi-Fi password.

  • Page 22: Glass Shelves And Door Trays

    7 Glass shelves and door trays Glass shelves and door trays The height of the glass shelves in the refrigerator compartment and the door trays on the inside of the refrigerator compartment door can be adjusted. The split shelf / half-shelf enables taller vessels to be stored.

  • Page 23: Shelf Life Of Food

    8 Storing food Shelf life of food ▸ High-protein and high-fat foods are delicate/perishable and have a relatively short storage life. ▸ Observe best-before and use-by dates. ▸ Produce can generally be stored for longer at low temperature settings. A temperature of 5 °C in the refrigerator compartment and -18 °C in the freezer compartment provide a balanced setting in terms of food quality and energy consumption –...

  • Page 24: Defrosting Food

    9 Care and maintenance Defrosting food ▸ Do not defrost frozen food at room temperature or on the heating. Food defrosts slowly in the refrigerator compartment. As a quick alternative, defrost in a microwave or steamer. ▸ Do not refreeze food once defrosted! Only after being prepared (through cooking or frying) can food be refrozen.

  • Page 25: Noises And Warnings

    10 Noises and warnings Noises and warnings 10.1 Operating noise The appliance can make various noises during operation. Although the appliance is noise-optimized, some noise cannot be eliminated completely. This noise depends on the size of the appliance, how it is installed and the cooling requirements (e.g. fast cool- ing), the ambient temperature and the installation conditions.

  • Page 26: Trouble-Shooting

    11 Trouble-shooting Note on when the temperature value is raised If a temperature value (actual value) is 10 °C above the selected set value for more than two hours, an acoustic signal is emitted for a limited time. The relevant zone and the zone temperature flash in the display.
  • Page 27 11 Trouble-shooting Malfunction Possible cause Solution/Measures The illumination is ▪ Sabbath mode is active. ▸ Hold the button depressed not working. for 3 seconds. ▪ If the illumination turns on: The problem is remedied. ▪ If the appliance switches off («OF»...
  • Page 28 11 Trouble-shooting Malfunction Possible cause Solution/Measures Error messages ▪ Temperature sensor is de- ▸ Contact Customer Services. F10–F15 fective. – The appliance switches to the emergency mode. The con- tents are kept refrigerated, but the appliance cannot record the current temperature value. Malfunction Possible cause Solution/Measure...
  • Page 29 11 Trouble-shooting Malfunction Possible cause Solution/Measures The temperature and ▪ The refrigerator compart- ▸ Touch any button. refrigerating zone(s) ment temperature is 10 °C – The current temperature value flash and/or an higher than the set temper- is displayed; flashes until acoustic signal is ature or the freezer com- the set temperature is reached.

  • Page 30: Tips And Tricks

    ▪ Store food that releases moisture in closed containers or covered in the refrigerator compartment. Moisture reduces the cooling capacity. ▪ For ideal air circulation: Do not store food and food items too close to each other. ▪ Turn the SilentPlus and V-ZUG-Home functions off when not in use.

  • Page 31: Technical Data

    ▸ See identification plate Spare parts V-ZUG Ltd provides spare parts for 15 years after the making available on the market of the last appliance with this type designation. Deviations from this are subject to consider- ation of and compliance with the applicable ecodesign regulations on the availability of spare parts.
  • Page 32 14 Disposal Disposal 14.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 14.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
  • Page 33 Index Appliance Identification plate......... 8, 31, 35 Increased cooling capacity ......15 Disposal............ 32 Initial set-up ............. 5, 8 Switching off .......... 11 Instructions for use ..........5 Switching on .......... 10 Appliance functions ......... 12 Selecting............ 11 Setting............ 12 Model designation ..........
  • Page 34 Trouble-shooting ..........26 Type............... 2 User setting............13 Using for the first time........5, 8 Validity..............2 Vegetable drawer..........24 V-ZUG App ............21 V-ZUG-Home........16, 20, 21 Warnings............25 Warranty claim..........31 WLAN connection ..........21...
  • Page 35 Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements.
  • Page 36 Value and status display Refrigerating/Freezing zone Freezing zone active Fast cooling/fast freezing active 1109543-02 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
