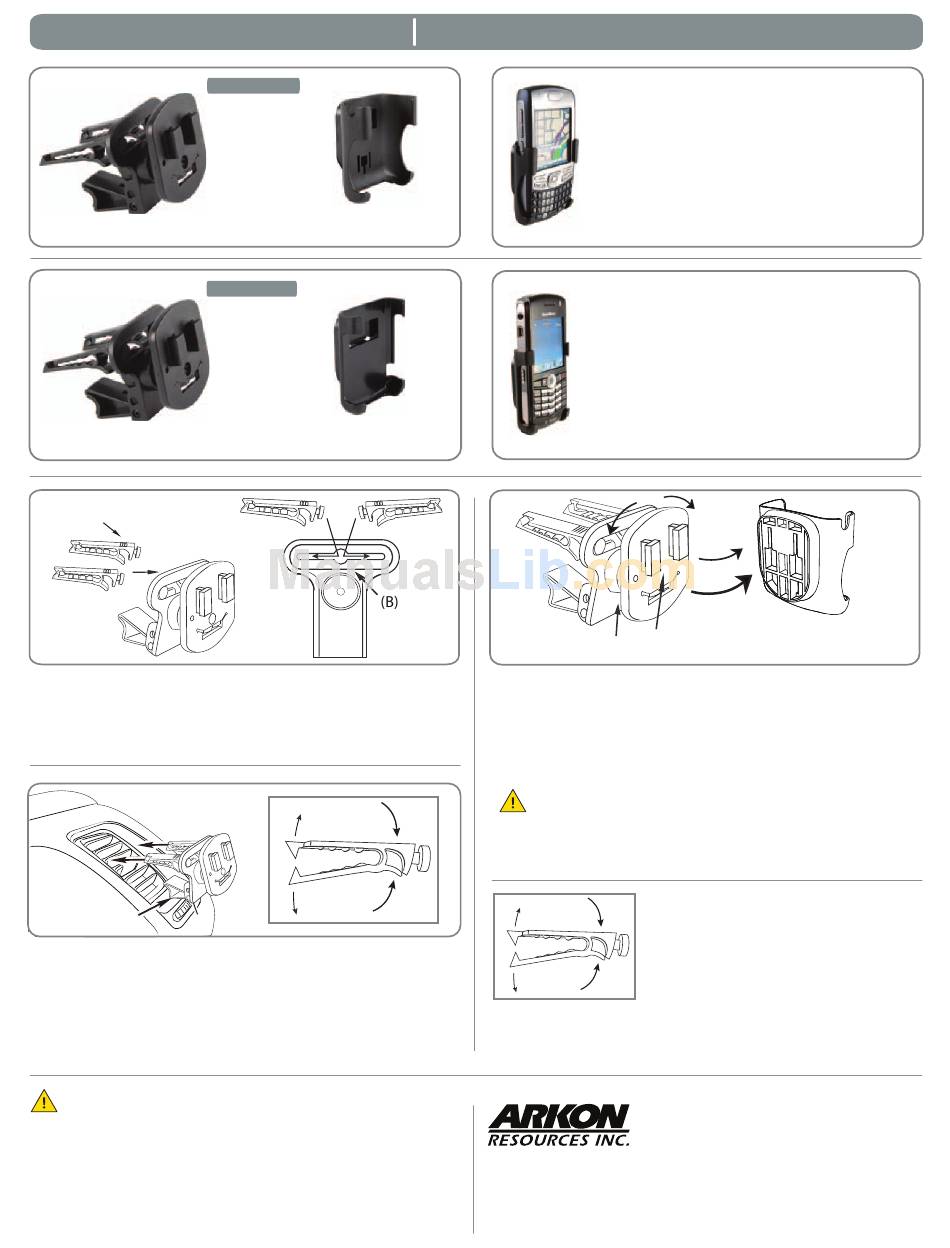

Arkon PTM129-SRVC User Manual

PTM129-SRVC & BBP129-SRVC
CM047-S2
CM047-S2
Flat side face up
(A)

Pedestal Assembly

Attach the vent mounting clips (A) to the back of the pedestal (B)
Step 1.
with the vent clips positioned with the flat sides facing up.
(C)

Insertion of Pedestal into the Air Vent

Pinch the vent mounting clips (A) so that the teeth open and
Step 1.
gently insert vent pedestal into vent louvres until the mounting
clips are attached to the fin/blade of the vent. Adjust the support
leg (C) vertically until it rests firmly along the bottom of the vent
or dash surface below the vent.

Safety Precautions

Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/or
air bag deployment.
Arkon Resources, Inc. is not responsible for any damages caused to
your car, your device, or yourself due to the installation or use of the
pedestal mount.
PTM129-SRVC
CC002-Palm
BBP129-SRVC
CC003-BBP
Swivel Vent Mount
Pedestal Adjustment & Device Cradle Installation
Adjust the swivel angle of the pedestal head by firmly holding the
Step 1.
back of the pedestal (B), pulling out the pedestal head and
twisting to the desired angle. Adjust the lateral angle of the
pedestal head (E) by simply twisting the head on the pivot axis (D).
Use caution when adjusting the swivel movement to avoid
damaging your air vents.
Attach the device cradle to the pedestal by inserting the dual T-
Step 2.
Tabs of the pedestal (E) into the T-slots of the cradle (F).
(A)
Step 3. Carefully slide the pedestal from the vent/blade. Make sure the
teeth of the vent clips are open enough so as not to damage the
vent.
Consumer Hotline:
(USA) (800) 841-0884
(INT'L) (626) 254-9005
Mon-Fri. 9am-5pm, PST
Compatability: (not complete)
-HP iPAQ 6815
-Palm Treo 650
-HP iPAQ 6818
-Palm Treo 680
-HP iPAQ 6828
-Palm Treo 700W
-HTC P3600
-Palm Treo 700P
-HTC Neo
-Palm Treo 750

Compatability:

-Blackberry Pearl 8100
(F)
(B)
(E)
(D)

Pedestal Removal

Remove the device from the vent
Step 1.
mount assembly.
(A)
Step 2. Pinch the vent clips (A) so that the
teeth open.
The Mobile Mounting Specialists
© Copyright 2007 Arkon Resources, Inc.
-XDA Atom Exec
-Dopod 818 Pro
-Dopod 810
-i-Mate JAMin
TM
www.arkon.com
Arcadia, CA 91006 USA
Made in Taiwan
