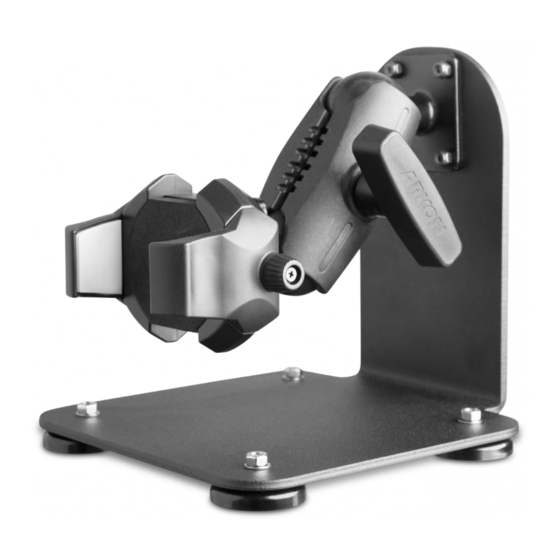

Magnetic mount system with roadvise ultra phone holder

Advertisement

Quick Links

FLRVRM38 | SteadyMag™ Magnetic Mount System with RoadVise
1
Assembling the SteadyMag magnetic plate kit
Remove all components from the packaging and assemble
the mounting plate with the base magnets as seen in the
diagram below.
FLRVRM38
USA
INT'L  (626) 254-9005
Monday - Friday 9 am - 5 pm PST
Includes:
1 – Manual
5 – Washers
(M5 x 10mm x 0.5mm Stainless Steel Round Flat)
5 – Nylon Nut
(M5-0.8 DIN 985 A2 Stainless Steel)
5 – Screws
(M5-0.8 x 16mm DIN Phillips Flat Head A2 Stainless Steel Machine)
1 – Mounting Bracket
4 – Base Magnets
1 – 38mm Double Ball Mount
4 – Screws
(Pan Head Phillips M4 x 0.7mm Thread, 14mm Long)
4 – Nylon-Insert Locknut
1 – RoadVise Ultra Phone Holder
2 – Foam Padding
4 – Screws
(M4 x 10mm)
Note: Different types of screws are included with this
system. Please consider keeping components sealed until
needed during the installation process to avoid confusion
Important: Clean the application surface and make sure
it is free of dirt, dust, and grease before installing the
mounting hardware.
2
Installing the 38mm ball mount to the SteadyMag base
plate
Locate the packaging with the double ball adapters and
shaft arm. Locate the packaging with the four mounting
screws and nuts. Take out the double ball mount and put
one of the ball adapters on top of the mounting plate's
four screw insertion holes. Use the provided screws and
nuts to attach it, following the diagram.
(800) 841-0884
Ultra Phone Holder
®
(FLIFT03)
(SPMAG35MM)
(RM38352XMAMPS)
(M4 x 0.7mm Thread, 5mm High)
(RVKNAMPS)
(4 Long, 2 Medium, 4 Short)
arkon.com
Designed in USA
© Arkon Resources, Inc.
Need assistance?
Scan to email our
Arkon
customer
®
service team.
