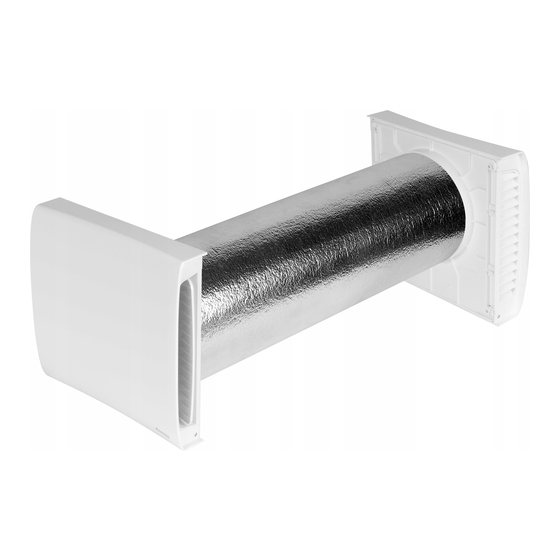

RECUPERATOR OPERATING MANUAL
AHR
IMPORTANT INFORMATION
Please read the Operating Manual carefully before assembling it or any other activity related to work with the appliance! AWENTA shall not be liable for any
damage resulting from incorrect operation, non-intended use or unauthorized repair or modi cations of the product.
The Operating Manual and the installation instructions contained in it are an essential part of the product equipment. The Operating Manual speci es
important technical information and instructions for the operating safety. Carefully read the assembly manual and keep it available in a readily accessible
place for future reference. A copy of the operating manual can be downloaded from www.awenta.pl

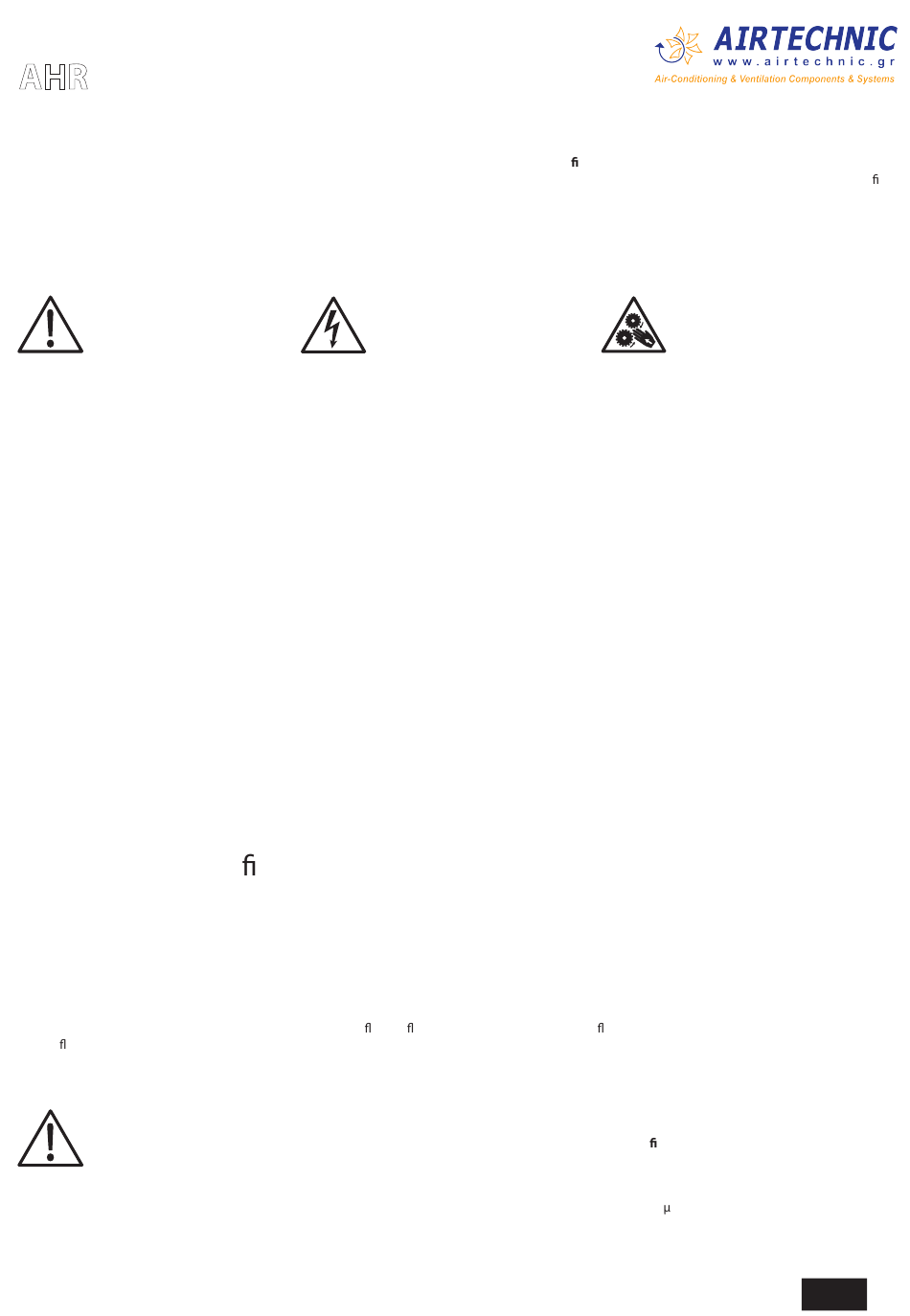

Safety information
The following safety symbols show important safety information. Follow all safety regulations and the safety symbols shown in the Operating Manual to
avoid injury and hazards.
Electric shock hazard
Safety precautions:
• This equipment may be used by children of at least 8 years of age and by
persons with reduced physical or mental abilities and persons with no
experience or knowledge of the equipment if supervised or instructed
on its safe use so that the risks associated with it are understandable. This
product is not a toy and children should not play with it. Children should
not be allowed to clean or maintain the product without supervision of
an adult.
• The appliance is intended for permanent installation and connection
with the building electrical system. The building electrical system
connected to the air exhaust fan must be capable of breaking live
voltage contact on all switching poles to fully isolate the air exhaust fan
from power during Category III overvoltage conditions, in accordance to
applicable electrical engineering regulations.
• The appliance is only intended for installation in a position and an
orientation speci ed in the Operating Manual, given the necessary
entry of the power supply cable into the air exhaust fan housing.
• Before servicing the appliance, isolate it completely from the mains
voltage with the circuit breaker. Secure the circuit breaker against
inadvertent operation.
• The air exhaust fan installation design must prevent reverse ow of ue gas into the room from open ue gas exhaust ducts and appliances operated with
open ames.
• Never attempt to modify or alter the air exhaust fan without authorisation.
• Before installing the appliance, check the load capacity of structural components, to which it will be attached, as improper attachment can result in damage
to or destruction of the appliance, as well as cause hazard to the persons nearby.
The appliance can be hazardous when operated against its intended use or installed by unquali ed personnel.
Application and operating conditions
• The recuperator is intended for pumping air of normal quality or with a low dust content (with a particle size < 10 m) and without aggressive chemicals or
high humidity. The air exhaust fan is intended for operation in temperate climate conditions.
• The appliance may be operated only in a permanent indoor installation and with its power supply cable concealed.
• The permissible operating temperature range of the AHR160 unit is -20°C to +40°C.
• The permissible operating temperature range of the AHRTH sensor is +5°C to +40°C.
Danger!
– high voltage!
Caution:
rotating components!
EN
9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Awenta AIRTECHNIC AHR
Summary of Contents for Awenta AIRTECHNIC AHR
- Page 1 IMPORTANT INFORMATION Please read the Operating Manual carefully before assembling it or any other activity related to work with the appliance! AWENTA shall not be liable for any damage resulting from incorrect operation, non-intended use or unauthorized repair or modi cations of the product.
-
Page 2: Product Description
• The appliance is compliant with IP22, electrical protection class II. • The appliance must be operated according to its intended use and within the performance limits speci ed on the nameplate. • The connection of the fan to the xed electrical system must be made with the 2x1.5 mm² VV-F 03H (OMY) cable with a maximum outside diameter of 8 mm. -
Page 3: Description Of Remote Control Buttons
Note: Make sure that the power supply cable is not live before starting work. • Measure and make an opening with a diameter of Ø180 mm for the ventilation duct in the external wall (Fig. 2.1). Note: The opening diameter should be greater than the external duct diameter to leave room for sealing. •... -
Page 4: Synchronous Operation
Synchronous operation: - SYNCHRO mode. For a “Master” appliance, it starts synchronous operation of all paired appliances. For a “Slave” appliance, it restores synchronous operation. Additional buttons: - SET button. It enables setting the clock timer, night mode operation time and resetting lter contamination counter. - DISPLAY button. - Page 5 5min* 10min 15min 30min 45min 60min 120min 180min OFF OFF (return to the home screen after 5 s) * if the TIMER mode is currently enabled, the rst push of the button will display the current time until turning o . •...
- Page 6 • The following message will be displayed on the screen: • Then push the button again for 2 seconds. The “Fb” symbol with ashing bars will be displayed on the screen. • Push the micro-button on the electronic system of the AHRTH sensor. •...
-
Page 7: Maintenance And Cleaning
• To enable the synchronous operation function, then (after prior completion of the pairing procedure) push the button on the remote controller of the MASTER appliance. • Synchronous operation is indicated with the “ ” symbol displayed on the screens of both the MASTER and SLAVE appliances. Example screen below: •... -
Page 8: Warranty Terms And Conditions
• The frequency range of AHR160 and AHRTH: 2,400 - 2,4835 GHz • AHR160 maximum radio frequency power: +20 dBm / AHRTH +4 dBm • AWENTA Sp. J. hereby declares that the AHR160/AHRTH radio device complies with Directive 2014/53/EU. Find the full text of the EU Declaration at www.awenta.pl... - Page 9 Rys./Fig./ ./Obr./Abb. 2.1 Rys./Fig./ ./Obr./Abb. 2.2 Rys./Fig./ ./Obr./Abb. 2.3 Rys./Fig./ ./Obr./Abb. 2.4 Rys./Fig./ ./Obr./Abb. 2.5 Rys./Fig./ ./Obr./Abb. 2.6 Rys./Fig./ ./Obr./Abb. 2.7 Rys./Fig./ ./Obr./Abb. 2.8 Rys./Fig./ ./Obr./Abb. 2.9 Rys./Fig./ ./Obr./Abb. 2.10 Rys./Fig./ ./Obr./Abb. 2.11 Rys./Fig./ ./Obr./Abb. 2.12 Rys./Fig./ ./Obr./Abb. 2.13 Rys./Fig./ ./Obr./Abb.
- Page 10 Rys./Fig./ ./Obr./Abb. 2.16 Rys./Fig./ ./Obr./Abb. 2.17 Rys./Fig./ ./Obr./Abb. 2.18 Rys./Fig./ ./Obr./Abb. 2.19 Rys./Fig./ ./Obr./Abb. 2.20 Rys./Fig./ ./Obr./Abb. 2.21 Rys./Fig./ ./Obr./Abb. 2.22 Rys./Fig./ ./Obr./Abb. 2.23 Rys./Fig./ ./Obr./Abb. 2.24 Rys./Fig./ ./Obr./Abb. 2.25 Rys./Fig./ ./Obr./Abb. 2.26 Rys./Fig./ ./Obr./Abb. 2.27 Rys./Fig./ ./Obr./Abb. 2.28 Rys./Fig./ ./Obr./Abb.
- Page 11 Rys./Fig./ ./Obr./Abb. 3.1 Rys./Fig./ ./Obr./Abb. 3.2 Rys./Fig./ ./Obr./Abb. 3.3 Rys./Fig./ ./Obr./Abb. 3.4 Rys./Fig./ ./Obr./Abb. 3.5 Rys./Fig./ ./Obr./Abb. 3.6 Rys./Fig./ ./Obr./Abb. 3.7 Rys./Fig./ ./Obr./Abb. 4 Rys./Fig./ ./Obr./Abb. 5 260-540 Rys./Fig./ ./Obr./Abb. 6...
- Page 12 Producent / Manufacturer / / Výrobce / Výrobca / Hersteller: AWENTA Spółka Jawna 05-300 Mińsk Mazowiecki, Stojadła, ul. Warszawska 99, Poland Tel: +48 25 758 52 52, + 48 25 758 93 92 fax: +48 25 758 14 62 e-mail: info@awenta.pl www.awenta.pl...
