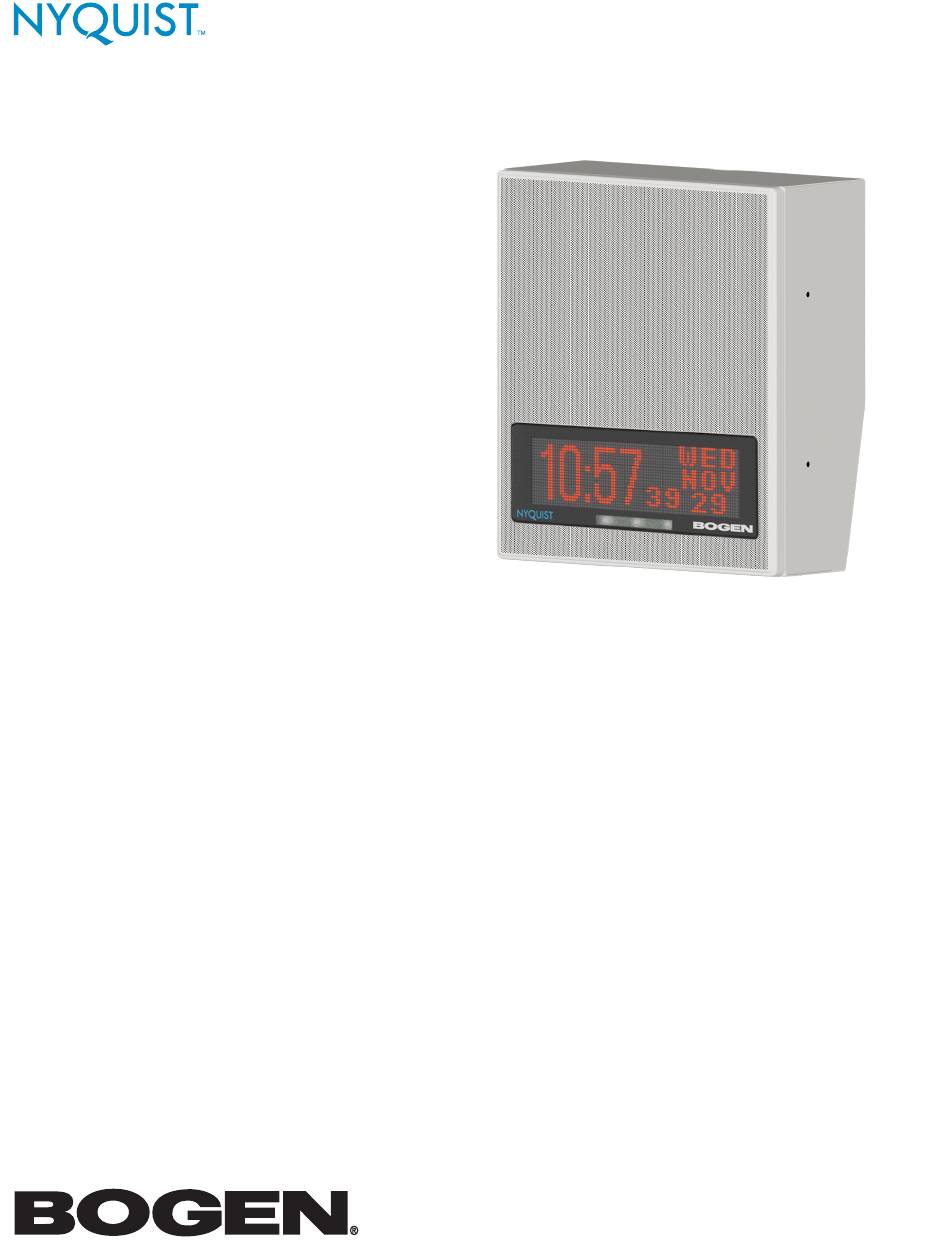

- Page 1 NQ-S1810WBC Nyquist VoIP Wall Baffle Combo Speaker with Integrated LED Message Display and Flasher Installation and Use Guide Specifications are subject to change. © Copyright 2024, Bogen Communications LLC 740-00219A 240401...
-
Page 2: Speaker Layout
NQ-S1810WBC With the Nyquist Series VoIP Wall Baffle Combo Speaker with LED Message Display and Flasher (WBC), there is no need to manually set or adjust external amplifiers, traditional intercom wiring, or transformer taps. Connect the speaker via a Cat 5 or higher cable to a Power-over-Ethernet (PoE or PoE+) switch or injector and it’s ready to use. The WBC features an integrated 10W power amplifier;... -
Page 3: Speaker Installation
2. Select a mounting option from Figures 4–7 and use the appropriate hardware for gang-box mount or wall mount. Bogen provides the screws and washers for mounting on a standard electrical gang box, but when mounting directly to a wall or other surface, you must supply the appropriate Figure 3: Remove cardboard insert from enclosure. -
Page 4: Using The Reset Button
NQ-S1810WBC NOTE: Use of relay contacts is optional and only recommended for connection to 12V/24V circuits, not for 120/240 VAC mains circuits. 6. Use Cat 5 or higher Ethernet cable to connect the speaker. The power is supplied by PoE or PoE+ using an 802.3af–... -
Page 5: Limited Warranty, Exclusion Of Certain Damages
IN NO EVENT SHALL BOGEN BE LIABLE FOR SPE-...
