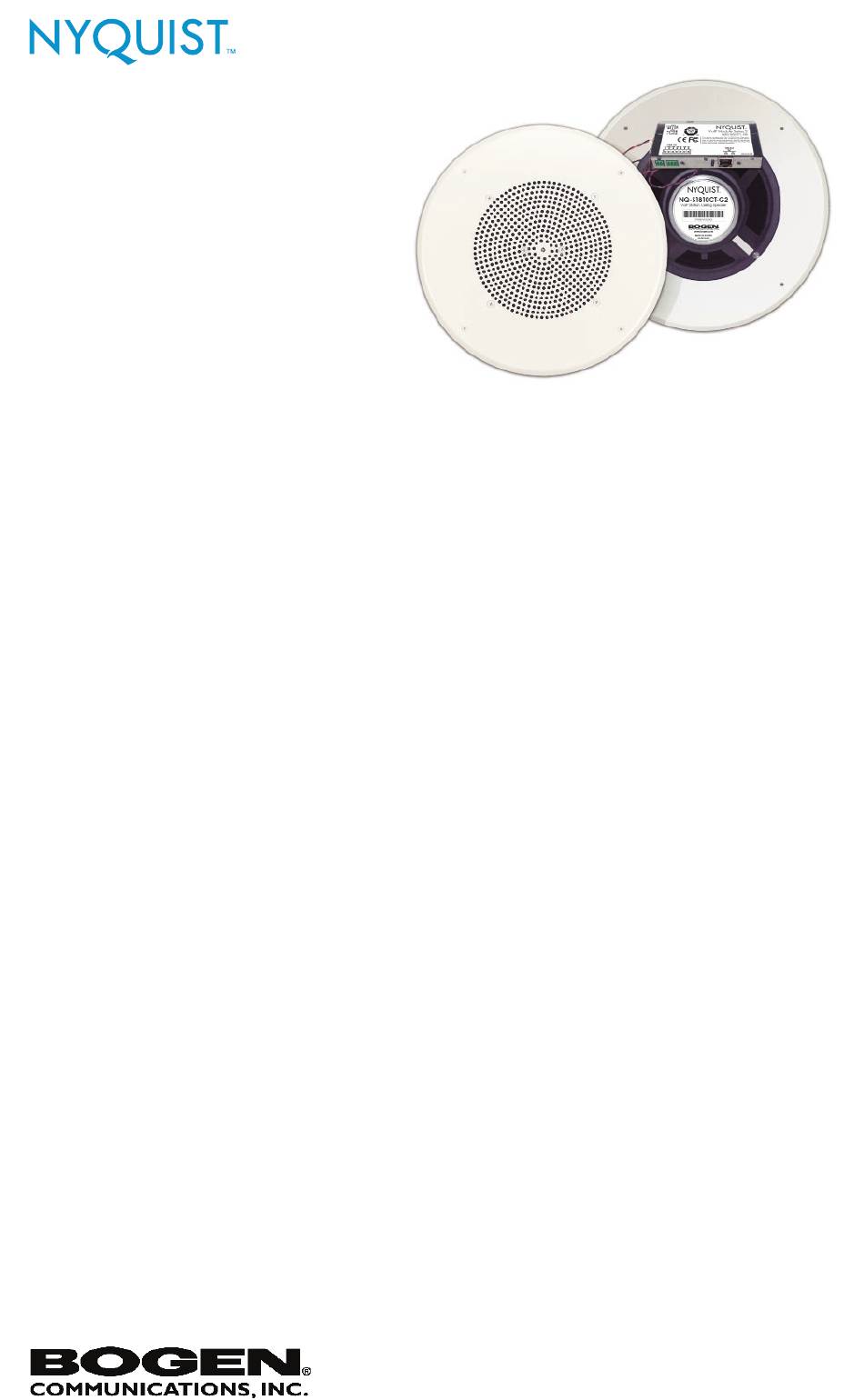

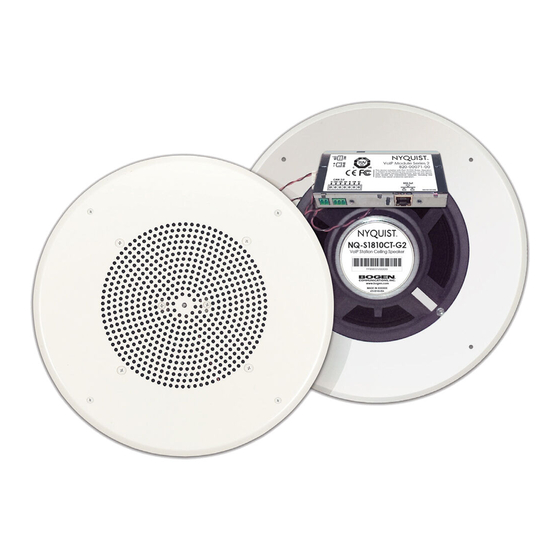

NQ-S1810CT-G2
Nyquist
Gen-2 VoIP
Ceiling Speaker
Installation
With the Nyquist Series Gen-2 VoIP Ceiling
Speaker, there is no need for external amplifi ers,
traditional intercom wiring, or transformer taps
to manually set or adjust. Connect the speaker
via Cat5 to a Power-Over-Ethernet (PoE) Switch
or PoE Injector, and it is ready to use.
The speaker features an integrated 10 watt
power amplifi er, a CAN Bus interface, a MEMS
digital microphone for superior talkback audio,
and a Form C SPDT type 2-amp dry contact relay
for controlling/overriding third-party devices like
AV sources.
The speaker also allows DHCP deployment
for easy installation. You can let your Nyquist
server automatically discover and confi gure
your speaker, or you can manually confi gure it
through the speaker's web-based user interface
Publication Number 740-00123
2006

Advertisement

loading
Need help?

Need help?

Do you have a question about the Nyquist NQ-S1810CT-G2 and is the answer not in the manual?

Questions and answers

Related Manuals for Bogen Nyquist NQ-S1810CT-G2

Summary of Contents for Bogen Nyquist NQ-S1810CT-G2

  • Page 1 NQ-S1810CT-G2 Nyquist Gen-2 VoIP Ceiling Speaker Installation With the Nyquist Series Gen-2 VoIP Ceiling Speaker, there is no need for external amplifi ers, traditional intercom wiring, or transformer taps to manually set or adjust. Connect the speaker via Cat5 to a Power-Over-Ethernet (PoE) Switch or PoE Injector, and it is ready to use.

  • Page 2: Speaker Layout

    UI, refer to the Nyquist Gen-2 VoIP Speakers Confi guration Manual. Speaker Layout The layout of the speakers should be planned before installation begins. Layout starts in one 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 • 1-800-999-2809 © Copyright 2020, Bogen Communications, Inc.
  • Page 3 The spacing of the speak- ers can be adjusted so that the speakers are evenly spaced in a row and are aesthetically pleasing. 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 • 1-800-999-2809 © Copyright 2020, Bogen Communications, Inc.
  • Page 4 MR8 Mounting Ring The MR8 Mounting Ring is a cold-rolled steel unit, which will mount any of the Bogen ceiling grilles, for installations where the RE84 is not used. 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 • 1-800-999-2809...

  • Page 5: Speaker Installation

    NOTE: It can be more effi cient to stack multiple ceiling tiles and then cut the speaker opening in a number of them at one time. Figure 1 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 • 1-800-999-2809 © Copyright 2020, Bogen Communications, Inc.
  • Page 6 4. Using the 4 supplied screws, attach the speaker to the TB8 using the 4 clips in the corners of the opening on the TB8 as nuts. 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 • 1-800-999-2809 © Copyright 2020, Bogen Communications, Inc.
  • Page 7 VoIP Form C Module 820-00071-00 as shown in Figure 3. 6. If the CAN Bus is to be used, ensure CAN_H and CAN_L use (Cat5 10/100) twisted pair cable. 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 • 1-800-999-2809 © Copyright 2020, Bogen Communications, Inc.
  • Page 8 9. Place the entire assembled ceiling tile back into the ceiling grid. NOTE: Refer to the Nyquist Gen-2 VoIP Speak- ers Confi guration Manual or the System Ad- 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 • 1-800-999-2809 © Copyright 2020, Bogen Communications, Inc.

  • Page 9: Additional Accessories

    fi guration settings to the fac- tory default settings. For more information about resetting confi guration settings, refer to Nyquist Gen-2 VoIP Speakers Confi guration Manual. 1200 MacArthur Blvd. Suite 304, Mahwah, NJ 07430 • 1-800-999-2809 © Copyright 2020, Bogen Communications, Inc.
  • Page 10 (as confi rmed by Bogen upon inspection) during the warranty period will be repaired or re- placed by Bogen, at Bogen’s option, with new or re- furbished product, provided the product is shipped insured and prepaid to: Bogen Factory Service 1200 MacArthur Blvd.
  • Page 11 IN NO EVENT SHALL BOGEN BE LIABLE FOR SPECIAL, INCIDEN- TAL OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, LOSS OF...
  • Page 12 Returned products which do not qualify for warranty service, may be repaired or re- placed at Bogen’s option with a previously repaired or refurbished items. The parts and labor involved in these repairs are warranted for 90 days when repaired by the Bogen Factory Service Department.
