- Page 1 NQ-S1810CT-T1 VoIP Ceiling Speaker Installation and Use Guide Specifications are subject to change. © Copyright 2022–2023, Bogen Communications LLC 740-00156D 230316...

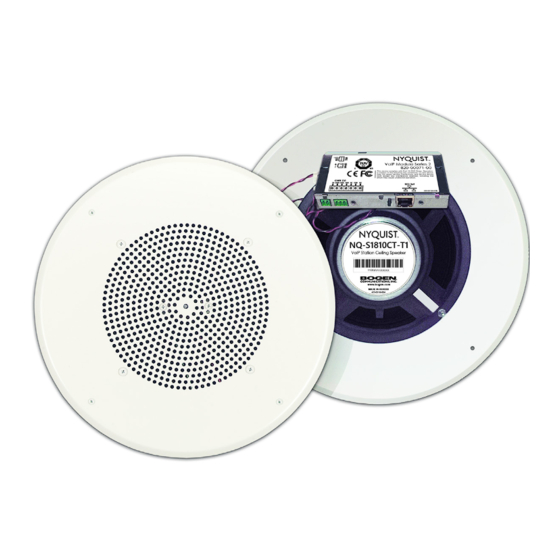

- Page 2 NQ-S1810CT-T1 With the Nyquist S1810CT-T1 VoIP Ceiling Speaker, there is no need for external amplifiers, traditional intercom wiring, or transformer taps to manually set or adjust. Connect the speaker via Cat5-or-better cabling to a Pow- er-Over-Ethernet (PoE) Switch or PoE Injector, and it is ready to use. The speaker features an integrated 10W power amplifier, a CAN Bus interface, a MEMS digital microphone for su- perior talkback audio, a 25V- or 70V-output-capable transformer for supporting up to four additional loudspeakers and a Form C SPDT-type 2A dry-contact relay for controlling/overriding third-party devices like AV sources.
- Page 3 The TB8 is required for each speak- er assembly installed. MR8 Mounting Ring The MR8 Mounting Ring is a cold-rolled steel unit, which will mount any of the Bogen ceiling grilles for installations where the RE84 is not used. Speaker Installation 1.
- Page 4 9. If the NQ-S1810CT-T1 is to be used with auxiliary speakers, all the auxiliary speakers should be configured for either 25V or 70V taps. The maximum power output of the NQ-S1810CT-T1 auxiliary transformer is 4W. The recommended loudspeakers are Bogen Series S1810T725PG8W. For 25V taps, connect the auxiliary speakers to the brown...
- Page 5 NQ-S1810CT-T1 Additional Accessories The Nyquist NQ-S1810CT-T1 VoIP Ceiling Speaker can be used with the Nyquist Digital Call Switch NQ-E7020. Refer to the NQ-E7020 Digital Call Switch Quick Start Guide. NQ-E7020-G2 Digital Call Switches Relay Satellite Speakers Bogen S810T725PG8W Series) IEEE 802.3af-compliant...
- Page 6 IN NO EVENT SHALL BOGEN BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, LOSS OF PROF- ITS, LOSS OF DATA OR LOSS OF USE DAMAGES) ARISING OUT OF THE MANUFACTURE, SALE OR SUPPLYING OF PRODUCTS, EVEN IF BOGEN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSSES.
