INSTALLATION

Set the unit so that its DIN rail adapter is at the bottom. When the unit is installed to an Installation Base (model M6DBS),
refer to its instruction manual.

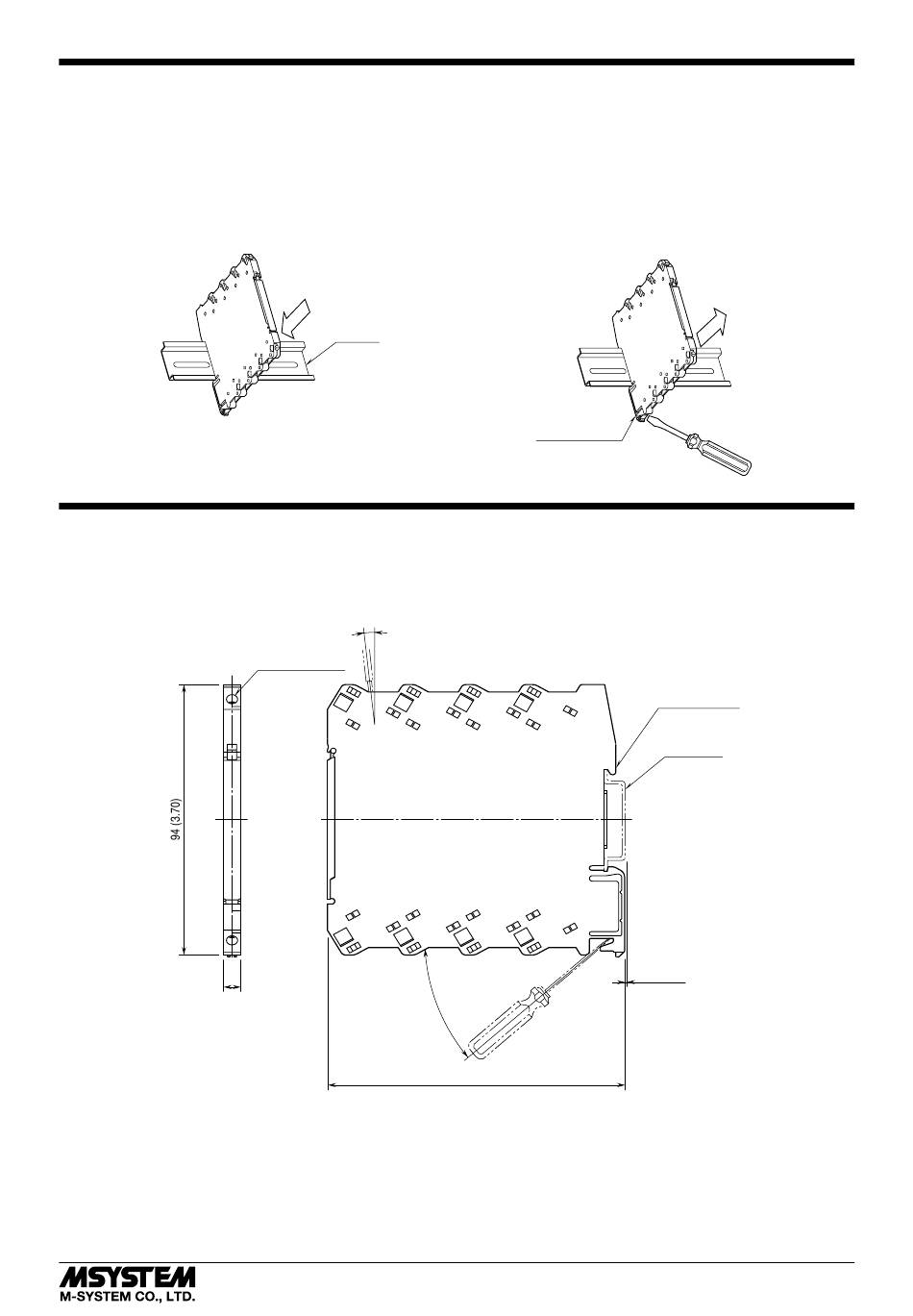

■ MOUNTING THE UNIT ON A DIN RAIL
A) Hang the upper hook at the rear side of unit on the DIN
rail.
B) Push in the lower in keeping pressing the unit to the DIN
rail.
A

TERMINAL CONNECTIONS

Connect the unit as in the diagram below or refer to the connection diagram on the side of the unit.
■ EXTERNAL DIMENSIONS unit: mm (inch)
5.9 (.23)
B
DIN Rail
WIRE INSERTION ANGLE: approx. 7°
8–M3
EURO TERMINAL
5 6
1 2
• When mounting, no extra space is needed between units.
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
■ REMOVING THE UNIT
A) Pull down the DIN rail adaptor using a minus screwdriv-
er.
B) Pull out the lower part of the unit.
C) Remove the upper part from the DIN rail.
C
DIN Rail Adaptor
7 8
3 4
SCREWDRIVER
INSERTION ANGLE
: approx. 40°
102 (4.02)
M6DXF2
B
A
DIN RAIL HOOK
DIN RAIL
35mm wide
[0.5 (.02)]
