Mounting
Wall mounting

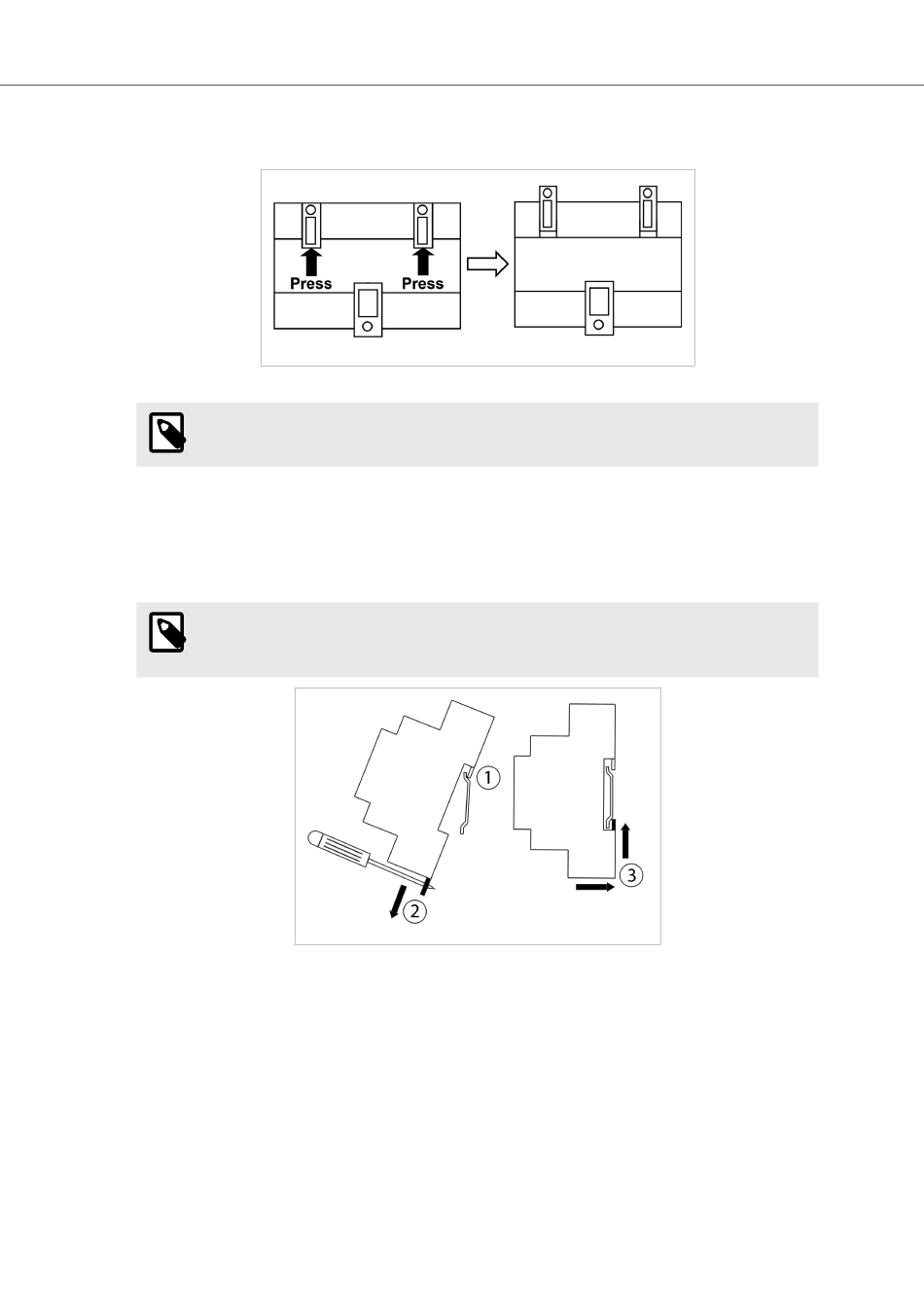

1. Press the top side mobile clips in the rear panel until you hear a click.
2. Use the clip holes to fix the gateway on the wall using screws.
NOTE
Use M3 screws, 25 mm (1") length.
3. Make sure the gateway is firmly fixed.
DIN rail mounting
1. Fit the gateway's top-side clips in the upper edge of the DIN rail.
2. Press the low side of the gateway gently to lock it in the DIN rail.
3. Make sure the gateway is firmly fixed.
NOTE
For some DIN rails, to complete step 2, you may need a small screwdriver or similar to pull the
bottom clip down.
