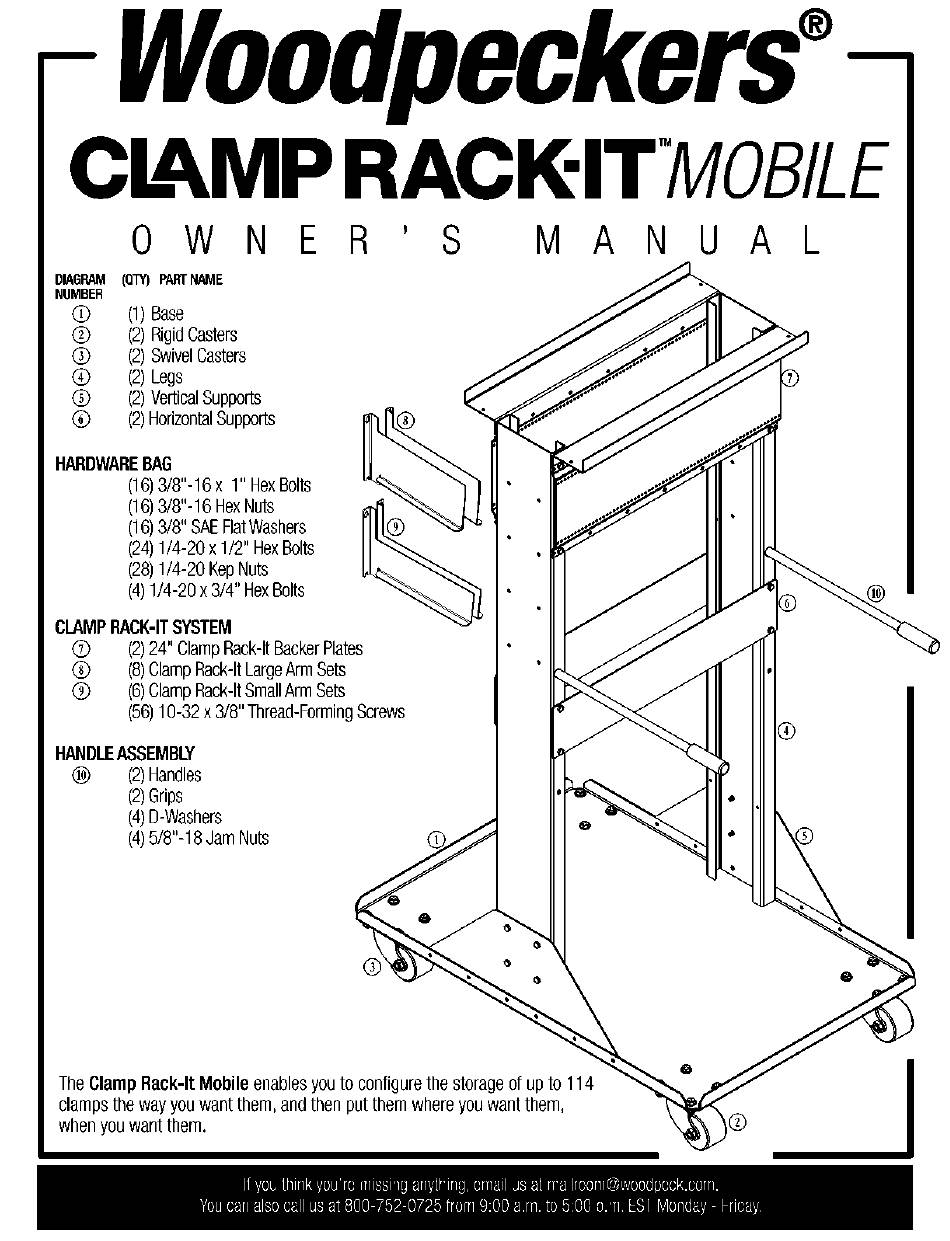

Woodpeckers OneTime Tool CLAMP RACK-IT MOBILE Owner's Manual

oodpeckers
IAMP RA K - IT MOBILE

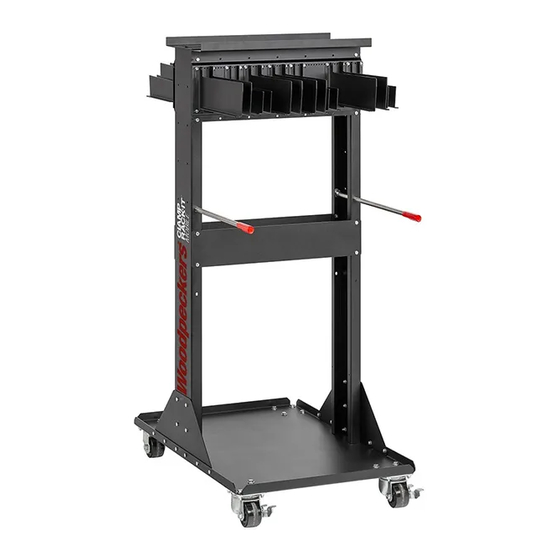

he lamp Rack-lt Mobile enables you to configure the storage of up to 114
clamps the way you want them, and then put them where you want them,
when you want them.
If you think you ' re missing anything, email us at mailroom@woodpeck.com .
You can also call us at 800-752-0725 from 9:00 a.m. to 5:00 p.m. ES Monday - Friday.
DIAGRAM
NUMBER
(QTY) PART NAME
1 ( 1) Base
2 (2) Rigid Casters
3
(2) Swivel Casters
4 (2) Legs
5 (2) Vertical Supports
6
(2) Horizontal Supports
HARDW A R E B A G
(16 ) 3/8"-16 x 1" Hex Bolts
(16 ) 3/8"-16 Hex Nuts
(16 ) 3/8" SAE Flat Washers
(24 ) 1/4-20 x 1/2" Hex Bolts
(28 ) 1/4-20 Kep Nuts
(4) 1/4-20 x 3/4 " Hex Bolts
LAMP R A K - I T S Y S T E M
7 (2) 24" Clamp Rack-lt Backer Plates
8 (8) Clamp Rack-lt Large Arm Sets
9 (6) Clamp Rack-lt Small Arm Sets
(56 ) 10-32 x 3/8" hread-Forming Screws
HANDLE
10 (2) Handles
(2) Grips
(4) D-Washers
(4) 5/8"-18 Jam Nuts
OWNER ' S MANUAL
