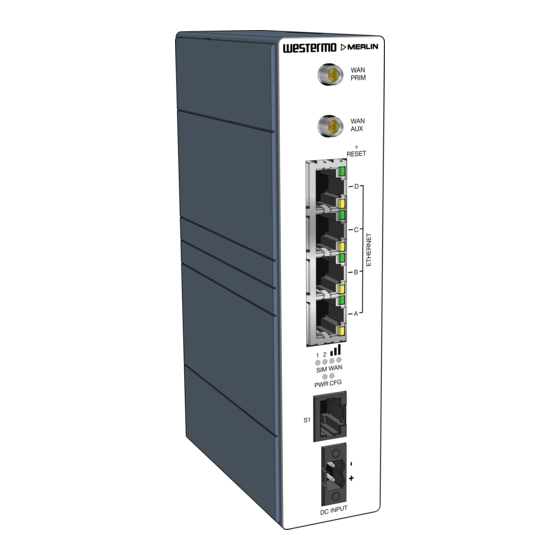

Westermo Merlin 4100 Series User Manual

Westermo Merlin 4100 Series User Manual

Industrial cellular router

Advertisement

Quick Links

www.wester mo.com
Merlin 4100 Series
Industrial Cellular Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Merlin 4100 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Westermo Merlin 4100 Series

  • Page 1 Merlin 4100 Series Industrial Cellular Router...
  • Page 2: Table Of Contents

    4.5.1. Inserting SIM 1 Card ................... 14 4.5.2. Inserting SIM 2 Card ................... 14 4.6. Powering Up ......................14 5. Specifications ........................15 5.1. Interface Specifications ..................15 5.2. Type Tests and Environmental Conditions ............... 16 6. Revision Notes ........................ 17 Merlin 4100 Series...
  • Page 3: General Information

    Westermo reserves the right to revise this document or withdraw it at any time without prior notice. Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.
  • Page 4: Safety And Regulations

    Provides information in order to avoid No personal injury Minor damage to the product misuse of the product, confusion or misunderstanding NOTICE Used for highlighting general, but No personal injury Minor damage to the product important information NOTE Table 1. Warning levels Merlin 4100 Series...
  • Page 5: Safety Information

    (only valid for metallic housings). Westermo recommends a cross-sectional area of at least 4 mm Upon removal of the product, disconnect the product from the power supply and all other communication ports before disconnecting the protective earthing conductor.
  • Page 6: Care Recommendations

    If the product is used in a manner not according to specification, the protection provided by the equipment may be impaired. If the product is not working properly, contact the place of purchase, the nearest Westermo distributor office or Westermo technical support.
  • Page 7: Compliance Information

    2.5. Compliance Information 2.5.1. Simplified Declaration of Conformity Hereby, Westermo declares that this product is in compliance with applicable EU directives and UK legislations. The full declaration of conformity and other detailed information is available at www.westermo.com/support/ product-support. Figure 2. The European Conformity and the UK Conformity Assessment markings...
  • Page 8: Product Description

    This compact unit is suited to tight spaces. Its high MTBF, wide temperature range and voltage supply ensure the Merlin 4100 can deal with the demands of industrial and utility applications. 3.2. Available Models See datasheet for full list of models available Merlin 4100 Series...
  • Page 9: Hardware Overview

    + pin and the return to the - pin on the power input. NOTICE - POWER SUPPLY Where an AC/DC-adapter has not been supplied, a power supply of no greater than 100 W should be used, with a current limit of 1 Amp. Merlin 4100 Series...
  • Page 10: Serial Port

    The pin numbering of the RJ45 socket, when viewed from the front of the unit, is as shown below. Illustration Pin no. Signal Direction Description Input Input. Default value is zero when nothing is fitted to port Ground Signal Ground, not chassis ground Table 4. Digital input port Merlin 4100 Series...
  • Page 11: Reset Button

    Flashing slowly Releasing 20-30 seconds reboots the router to recovery mode. Only to be done in case of emergency and under the guidance of Westermo support staff. Note: this may wipe the configurations, both config1 and config2. > 30 seconds Solid on Releasing after 30 seconds performs a normal reset.
  • Page 12: Ethernet Port Led Behaviour

    Data is being transmitted or received over the link SPEED LED Link operating at 100 Mbps Link operating at 10 Mbps (amber) Table 7. Ethernet LED behaviour and descriptions 3.7. Dimensions Dimensions are stated in millimetres and are regardless of model. Figure 6. Dimensional drawing Merlin 4100 Series...
  • Page 13: Installation

    On the rear side of the router there are two SIM slots. To access the SIM cards, first remove the SIM cover using a suitable screwdriver (not supplied). Only the proper driver can drive a specific head size without risk of damaging the driver or screw. Merlin 4100 Series...
  • Page 14: Inserting Sim 1 Card

    Plug the power cable first into the device and then to a suitable power source. The router takes less than a minute to boot up. During this time, the power LED flashes. Other LEDs display different diagnostic patterns during boot up. Booting is complete when the power LED stops flashing and stays on steady. Merlin 4100 Series...
  • Page 15: Specifications

    7 or 8 data bits, odd, even or none parity, 1 or 2 stop bits (2 stop bits only when no parity is set) Circuit type TNV-1 Transmission range RS-232: 15 m/49 ft Number of ports Connection RJ-45 according to EIA-561 RJ-45 shielded cable Digital input Mode of operation Dry contact only Connection RJ-45 shielded cable Merlin 4100 Series...
  • Page 16: Type Tests And Environmental Conditions

    Operational 5-95 % relative humidity MTBF Telcordia Ground benign, 25°C 1,700,000 hours Enclosure EN 62368-1 Fire enclosure Weight Approx 280 g Cooling Convection Refer to "Safety Information" chapter regarding touch temperature Table 9. Environmental and mechanical conditions Merlin 4100 Series...
  • Page 17: Revision Notes

    Detailed pin-out of digital input port Rev. C 2023-07-12 Removed list of models, refer to datasheet instead Rev. D 2023-11-27 Removed devName column from section of serial port Rev. E 2024-01-05 Refresh of content in Type Tests Merlin 4100 Series...
  • Page 18 EN_REV E 2024 01 @ Westermo Network Technologies AB, Sweden...

This manual is also suitable for:

Merlin-4106-t4-s1-di1Merlin-4106-t4-s1-di1-qft
