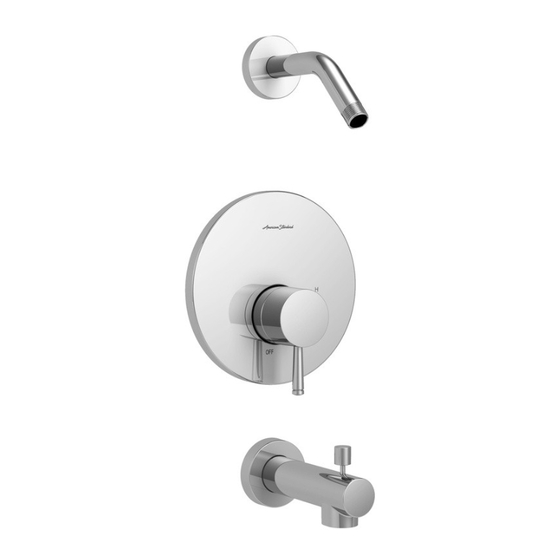

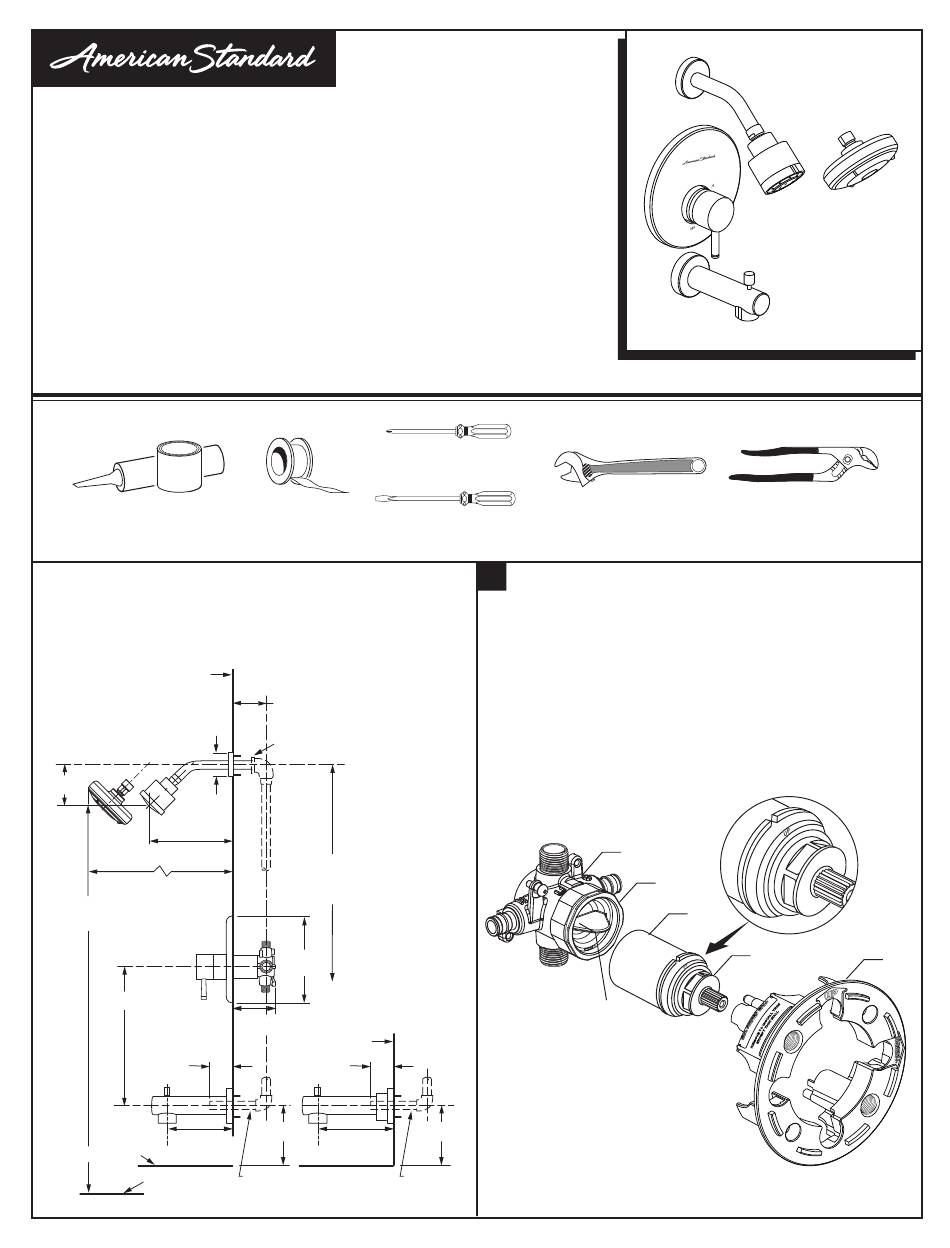

Serin
®
Pressure Balancing
Bath and Shower Trim Kit
Thank you for selecting American Standard...
the benchmark of fine quality for over 140 years.
To ensure that your installation proceeds smoothly-please
read these instructions carefully before you begin.
For use with shower heads rated at 4.9 L/min (1.3 gpm) or higher.
RECOMMENDED TOOLS
Plumbers' Putty
or Caulking
ROUGHING-IN DIMENSIONS
• To assure proper positioning in relation to wall.
Note roughing-in dimensions.
FINISHED WALL
5-5/8" REF.
(143 mm)
2-3/8"
(60 mm)
8-1/8" REF.
(206mm)
8-3/8" REF.
(213 mm)
74" (1880 mm)
FOR HEAD
CLEARANCE
18" OPTIONAL
1 -3/4"
(44 mm)
4-7/8" REF.
(124 mm)
TOP OF TUB RIM
BOTTOM OF TUB
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
INSTALLATION
INSTRUCTIONS
TU064501WDXH
TU064502WDXH
Phillips Screwdriver
Teflon Tape
Flat Blade Screwdriver
1-5/8" TO 3-1/4"
(41 TO 83 mm)
1/2" ( 13 mm) NPT
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 80''
(1651 AND 2032 mm)
7-1/4" DIA.
(184mm)
2-3/4" MAX. (69 mm)
1-3/4" MIN. (45 mm)
FINISHED WALL
1 -3/4"
(44 mm)
4"
(102 mm)
5-7/16" REF.
(141 mm)
1/2" COPPER
1/2" COPPER
TU06450X
Adjustable Wrench
1
CARTRIDGE INSTALLATION
• Remove PLASTER GUARD (6)
(Keep it installed for thin wall Installation).
• Remove BONNET NUT (1) by unthreading it
Counter clockwise. Remove test CAP (2).
• Remove PROTECTIVE HOUSING (3) from
CARTRIDGE (4). Install with "UP" text on top.
• Reinstall BONNET NUT (1) onto VALVE BODY (5)
and tighten firmly with 12 Nm or 9 lbs/ft.
2
4"
(102 mm)
NOTE: Specified tightening torque
of BONNET NUT (1) is critical to
assure sealing function.
- 1 -
Channel Locks
5
1
3
4
6
M965939 (8/18)
Advertisement
Related Manuals for American Standard Serin TU064501WDXH
Summary of Contents for American Standard Serin TU064501WDXH
- Page 1 TU064501WDXH Pressure Balancing TU064502WDXH Bath and Shower Trim Kit Thank you for selecting American Standard... the benchmark of fine quality for over 140 years. To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin. For use with shower heads rated at 4.9 L/min (1.3 gpm) or higher.
- Page 2 INSTALL VALVE TRIM (STANDARD WALL INSTALLATION) • Figure 1. Push CAP (1) over VALVE CARTRIDGE (2) until seated against stop. PLASTER GUARD • Figure 2. Make sure O-RING (6) is secure within ESCUTCHEON HOLDER (3). Push ESCUTCHEON HOLDER (3) onto CAP (1) and attach with LONG SCREWS (4). Mount ESCUTCHEON SUPPORT (5) to ESCUTCHEON HOLDER (3) with 4 SHORT SCREWS (8).
-
Page 3: Safety Stop
INSTALL, TUB SPOUT, SHOWER HEAD, APPLY SEALANT OR SHOWER ARM WITH FLANGE TEFLON TAPE TO THREADS Protect finish on SHOWER HEAD CAUTION and TUB SPOUT when installing. Note: Apply sealant or Teflon Tape to shower arm. • Remove PIPE PLUG and CAP (1, 2) from shower pipe and tub filler pipe. -
Page 4: Care Instructions
SERVICE TO GAIN ACCESS TO VALVE FOR SERVICING Turn off hot and cold water CAUTION supplies before beginning. • Remove HANDLE (see step 3 and reverse). • Remove ESCUTCHEON and CARTRIDGE CAP (see step 1 and reverse). VALVE LEAKS WHEN SHUT OFF •... - Page 5 Serin ® Pressure Balancing Bath and Shower Trim Kit MODEL NUMBER TU06450X TU064501WDXH TU064502WDXH A912632-0070A O-RING M962493-YYY0A SHOWER ARM & FLANGE 1660652.YYY SHOWER HEAD (1.8 GPM) M953540-YYY0A SHOWER HEAD (2.5 GPM) M970410-0070A CARTRIDGE M970484-0070A MOUNTING PLATE M909338-0070A EXTENSION DECAL FOR THE WD VERSION M907053-YYY0A CARTRIDGE CAP M962642-0070A...
