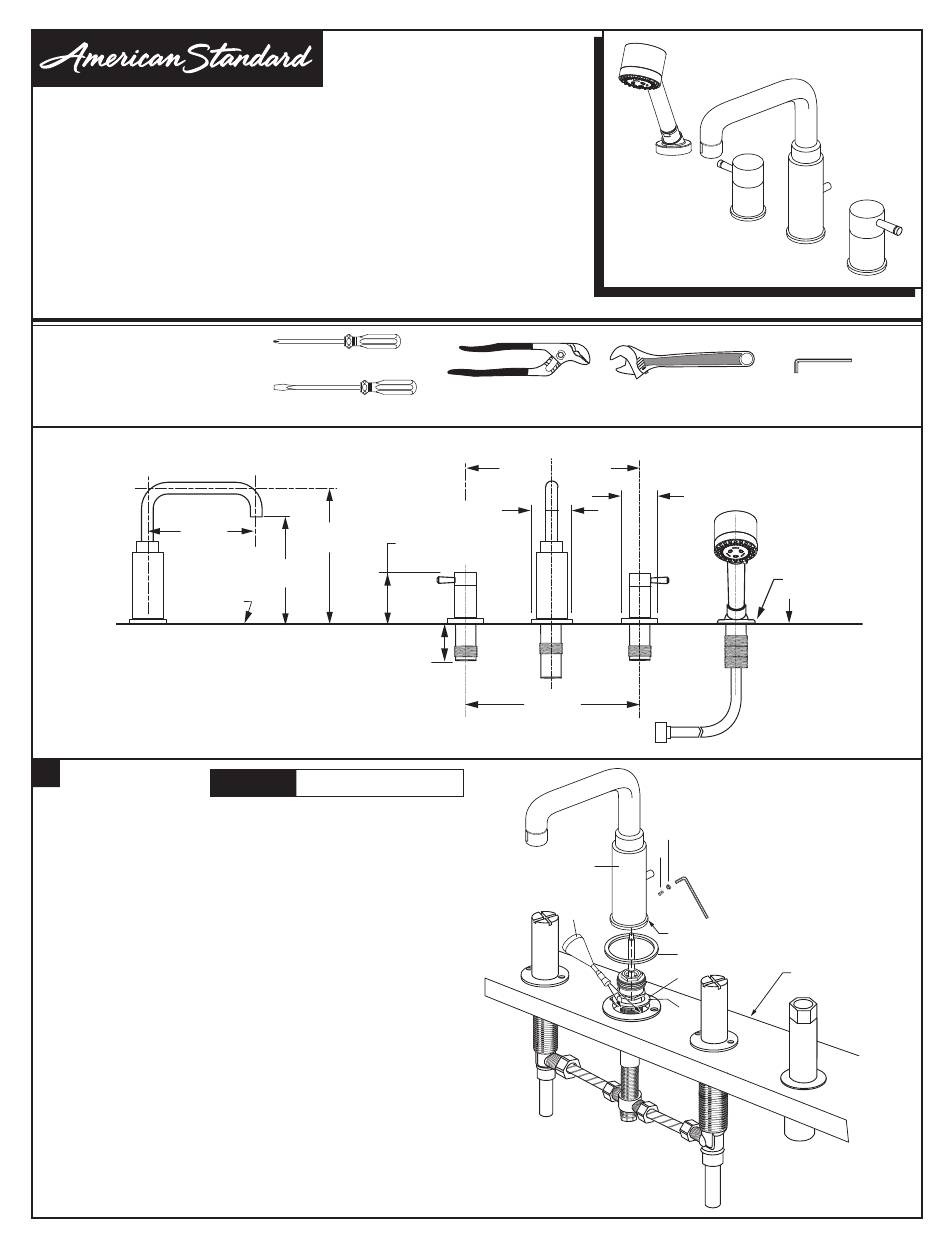

American Standard Serin T064900 Installation Instructions

Serin
™

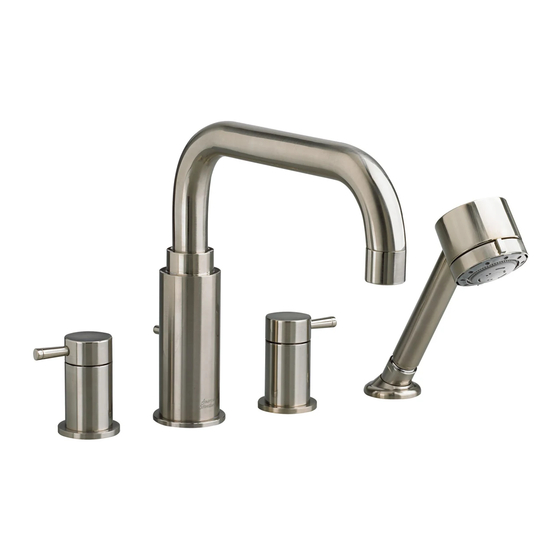

Roman Tub Filler
Thank you for selecting American Standard...
the benchmark of fine quality for over 140 years.
To ensure that your installation proceeds smoothly-please read
these instructions carefully before you begin.
RECOMMENDED TOOLS
ROUGHING-IN DIMENSIONS
9-1/2"
(240mm)
MOUNTING
SURFACE
1

INSTALL SPOUT

• Apply 4-5 drops of THREADLOCKER (1)
on DIVERTER INSERT (2) threads (supplied).
NOTE: If installing on finished deck, install DIVERTER
INSERT (2) through WASHER (7).
• Thread DIVERTER INSERT (2) carefully until it touches the
installation surface, be sure the RUBBER RING (5)
is properly seated in it's RECESS at the base of the
SPOUT (3).
• Thread SET SCREW (4) using 5 mm hex wrench supplied.
Make certain SET SCREW (4) is properly aligned and tight
so that SPOUT (3) is locked in place.
• Install PLUG BUTTON (6).
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
INSTALLATION
INSTRUCTIONS
Phillips Screwdriver
Flat Blade Screwdriver
9-3/4"
(247mm)
6-3/4"
(170mm)
1" MAX.
(25 mm)
Turn off hot and cold water
CAUTION
supplies before begining.
T064900
T064901
Channel Locks
6-1/2" to 12"
(165mm to 305mm)
3-1/4" D.
(82mm) D.
2-3/4"
(71mm)
8" TO 16"
FLEXIBLE INSTALLATION
(203 TO 406 mm)
1
- 1 -
Certified to comply with ANSI A112.18.1M
Adjustable Wrench
2" D.
(52mm) D.
6
4
3
Hex wench
(supplied)
RECESS
5
2
7
Hex Wench
(supplied)
2-1/16" D.
(52mm) D.
MOUNTING
SURFACE
M965946 (8/18)
