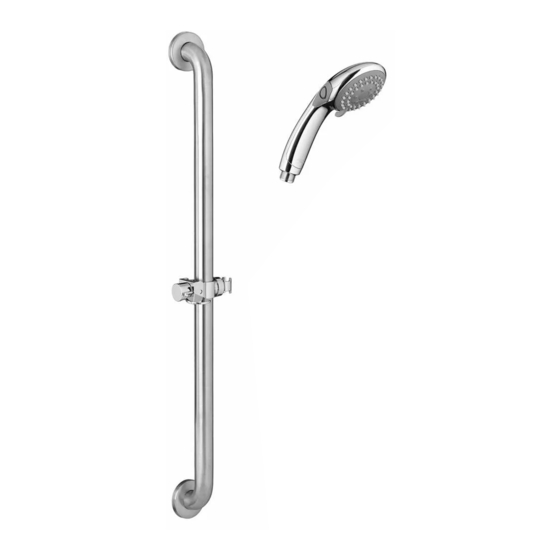

COMMERCIAL SHOWER
SYSTEM KITS:
1.5 gpm & 2.5 gpm
Thank you for selecting American Standard...
the benchmark of fine quality for over 140 years.
To ensure that your installation proceeds smoothly-please read
these instructions carefully before you begin.
Installation must conform to all local building codes.
RECOMMENDED TOOLS & MATERIALS
Phillips Screwdriver
Pipe Wrench

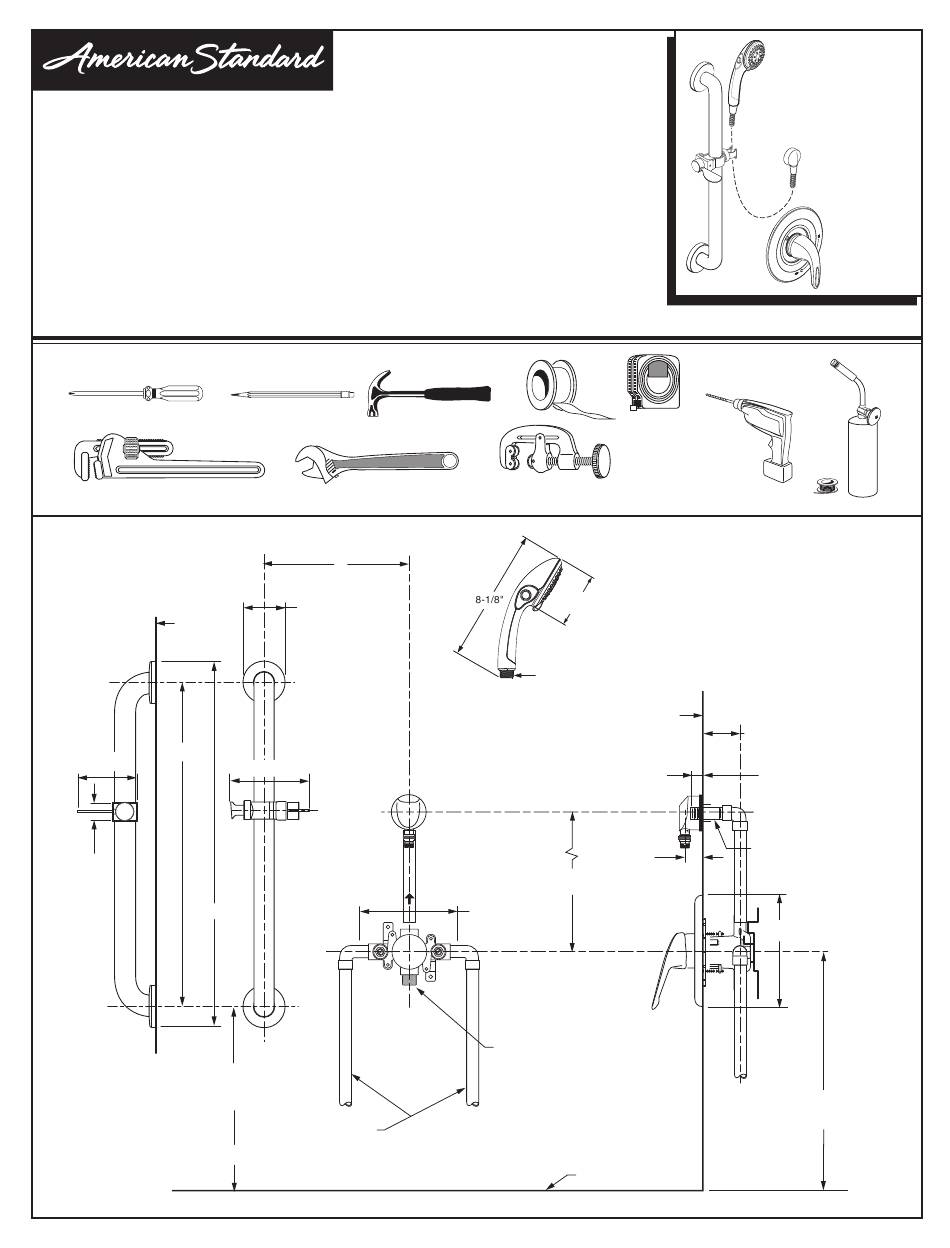

ROUGHING-IN DIMENSIONS
FINISHED
WALL
36"
3-1/8" DIA.
1-5/8"
37-1/2"
OPTIONAL TO FINISHED FLOOR
USUALLY BETWEEN
36"
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2019
Pencil
Adjustable Wrench
8"
OPTIONAL
3-1/8" DIA.
3-1/8" DIA.
TO
60"
1/2" SUPPLIES
48"
Universal Inlets / Outlets:
1/2" NOM Copper Sweat or 1/2" NPT
INSTALLATION
INSTRUCTIONS
TU662SG.211
TU662SG.221
Sealing Tape
Hammer
Tubing Cutter
3-5/16"
1660766.002
1660767.002
1/2" NPSM
FINISHED WALL
12"
OPTIONAL
5-7/8"
PLUG TUB
OUTLET
BOTTOM OF SHOWER
- 1 -
TU662SG.211 (1.5gpm)
TU662SG.221 (2.5gpm)
Certified to comply with ANSI A112.18.1
10'
Tape Measure
6 mm (15/64")
Drill Bit
Electric Drill
(1.5 gpm)
(2.5 gpm)
1-5/8" TO 3-1/4"
1/2"
1/2" NPT
1-1/4"
6" DIA.
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 48" TO 54"
Torch
M985023 (5/19)
