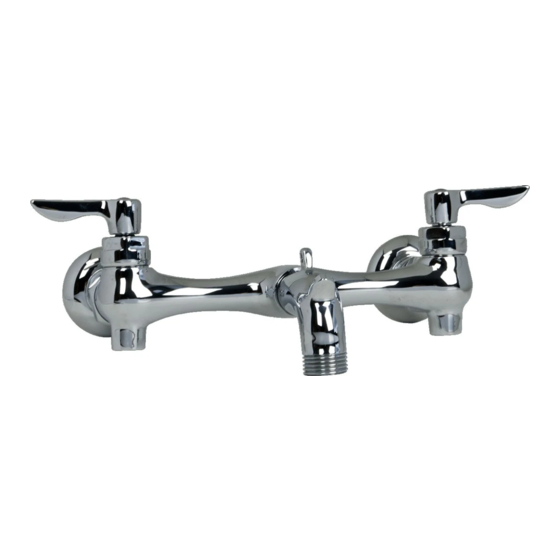

Exposed Yoke Wall Mount
Utility Faucet
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
RECOMMENDED TOOLS
Channel Locks
ROUGHING-IN DIMENSIONS
2-1/2"
(100mm)
HOT
2-1/2"
(63mm)
HOT
1
ROUGH-IN
Prepare water supply lines per "Roughing-in
Dimensions". Install 1/2" NPT. SUPPLY NIPPLES
Installation
Instructions
8350.235
8350.243
Adjustable Wrench
12-1/2"
(317mm)
8"
(203mm)
COLD
3/4" HOSE
TREADS
12-1/2"
(317mm)
8"
(203mm)
COLD
3/4" HOSE
TREADS
1/2 NPT. FEMALE THREADS
1/2 NPT. SUPPLY NIPPLE
Certified to comply with ANSI A112.18.1M
Plumbers' Putty or Caulking
8350.243
BACKFLOW
PREVENTER
6-6/8"
(173mm)
8350.235
6-1/2"
(164mm)
FINISHED WALL
8350.243
8350.235
M 9 6 5 0 4 1 R ev 1. 3
Phillips Screwdriver
OFFSET
SHANKS
2-3/8" DIA.
(60mm)
1/2 N.P.T.
FEMALE
BACKFLOW
PREVENTER
OFFSET
SHANKS
2-3/8" DIA.
(60mm)
1/2 N.P.T.
FEMALE
1-1/4 DIA. OPENING
1/2 to 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for American Standard 8350.235
Summary of Contents for American Standard 8350.235
- Page 1 Installation 8350.243 Instructions 8350.235 Exposed Yoke Wall Mount 8350.243 Utility Faucet Thank you for selecting American-Standard... 8350.235 the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly-- Certified to comply with ANSI A112.18.1M please read these instructions carefully before you begin.
- Page 2 FINISH INSTALLATION Slide COUPLING NUTS (5) onto INLET SHANKS (3). Thread ESCUTCHEONS (2) fully onto INLET SHANKS (3). Thread INLET SHANKS (3) onto SUPPLY NIPPLES (1). Distance between INLET SHANK (3) outlets must be 8" to match the VALVE. Insert RUBBER WASHERS (4) into INLET SHANK (3). Attach VALVE (6) to INLET SHANKS (3).
- Page 3 Exposed Yoke Wall Mount Utility Faucet MODEL NUMBER 8350.235 8350.243 8350.235 051322-0020A HANDLE SCREW 051210-0020A 051211-0070A LEVER HANDLE INDEX KIT (PAIR) M962952-0020A VACUUM BREAKER REPAIR KIT M918014-0070A ADAPTER A904939-0020A BONNET NUT 951764-0070A CARTRIDGE M911631-0070A GASKET M962962-YYYOA FEMALE ECCENTRIC SHANK W/ECUTCHEON 8350.243...
