INSTALLATION INSTRUCTIONS
Passage
™
Shower Subway Tile Wall Collection
Nominal Dimensions: 60 x 32 x 72
Model: P2969SWT
Visit http://www.americanstandard-us.com/passage-collection for coordinating products.
American Standard Passage Shower Walls are designed to be installed together with the American Standard Passage
Shower Base. If your specific installation does not include a Passage Shower Base, you will need to adjust the width of your
shower alcove to 59-1/4" (1505 mm) to ensure correct fit with installed substrate (see Illustration 1).
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years.
To ensure this product is installed properly, please read these instructions carefully before you begin.
Certain installations may require professional help.
REQUIRED TOOLS AND MATERIALS
TOOLS:
Tape Measure
Caulking Gun
Masking Tape
Hole Saw
Jig Saw with fine tooth blade
BEFORE YOU BEGIN....
Local building codes vary by location. Observe all local plumbing and building codes.
Unpack your new shower walls and inspect them carefully for damage. Verify that the walls are the correct size for your installation.
NOTE: Take extra care in handling the front surfaces of the walls. Use only non-abrasive cloths to avoid scratching.
STEP 1: PREPARATION
Do not install directly to studs.
Passage Shower Walls must be installed over a solid, water resistant substrate such as greenboard.
If alcove opening is larger than rough-in opening (see Illustration 1) there will be a visible gap between
rear corners. Fir-out studding if necessary before installing substrate to provide correct alcove opening for
panels. Ensure alcove is plumb and square.
1) ROUGH PLUMBING & FITTINGS MUST
BE INSTALLED BEFORE WALLS
2) WALL SURFACE PREPARATION
Ensure wall surface is dry, smooth, and free of dust, soap
scum, mold or other contaminants. Wipe wall surfaces
with a damp cloth and allow to dry.
TIP: Priming wall substrate improves shower
wall adhesion. Wall surface must be dry before
panels can be applied.
NOTE: IF YOU PLAN TO INSTALL A SHOWER DOOR
Follow manufacturer's instructions and prepare
stud wall accordingly.
Product names listed herein are trademarks of AS America Inc.
© AS America Inc. 2019
MATERIALS:
Suction Cups - optional
Drill
Level
Square
Pencil
SOLD SEPARATELY:
x8 Tubes Waterproof Instant Grab
x2 Tubes Tub & Tile Sealant

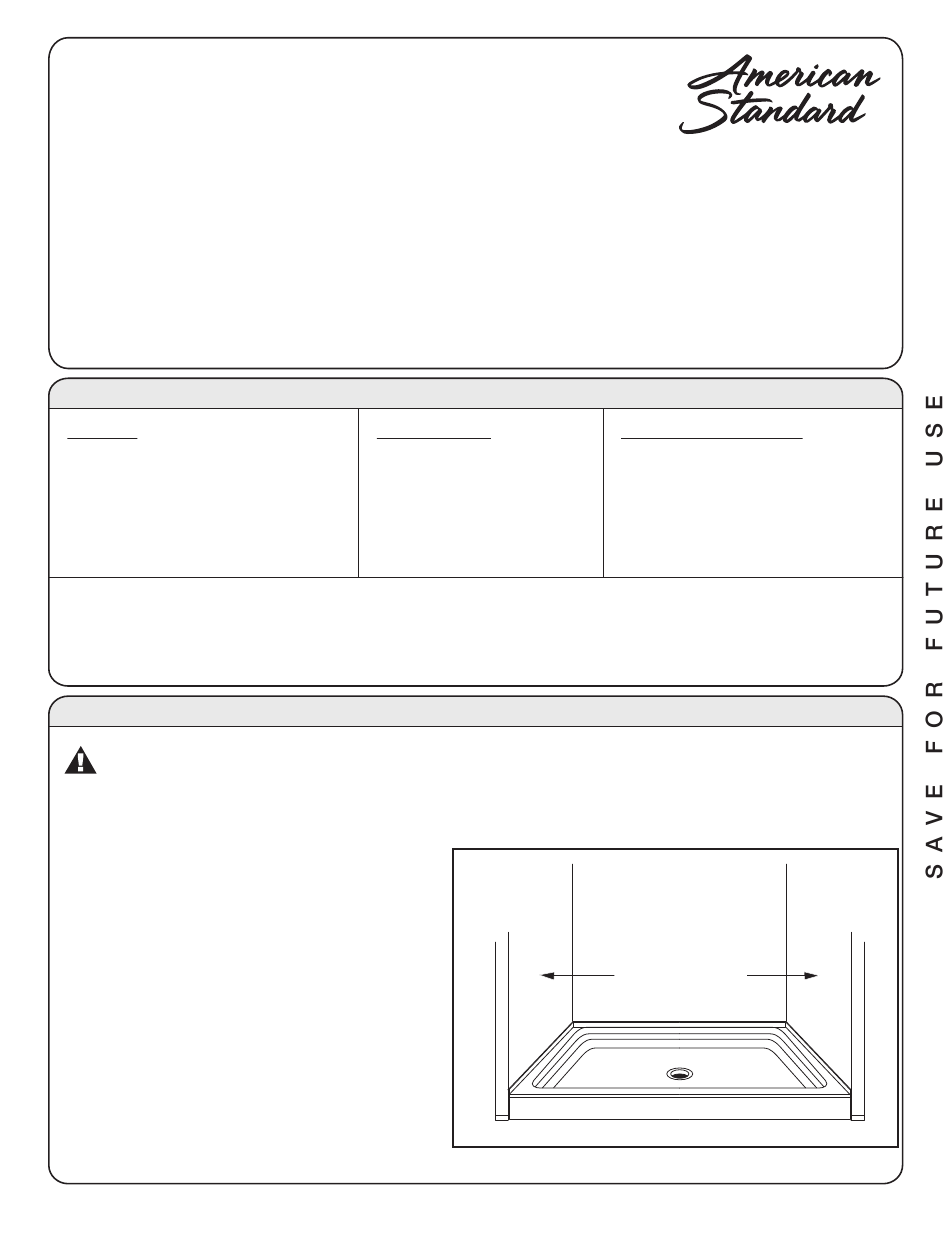

59-1/4" (1505mm)
Illustration 1
- 1 -
Construction Adhesive
755796-100 Rev. 1 8/19
