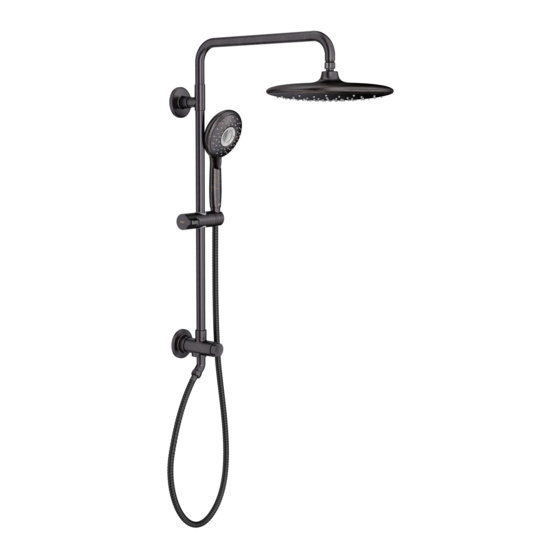

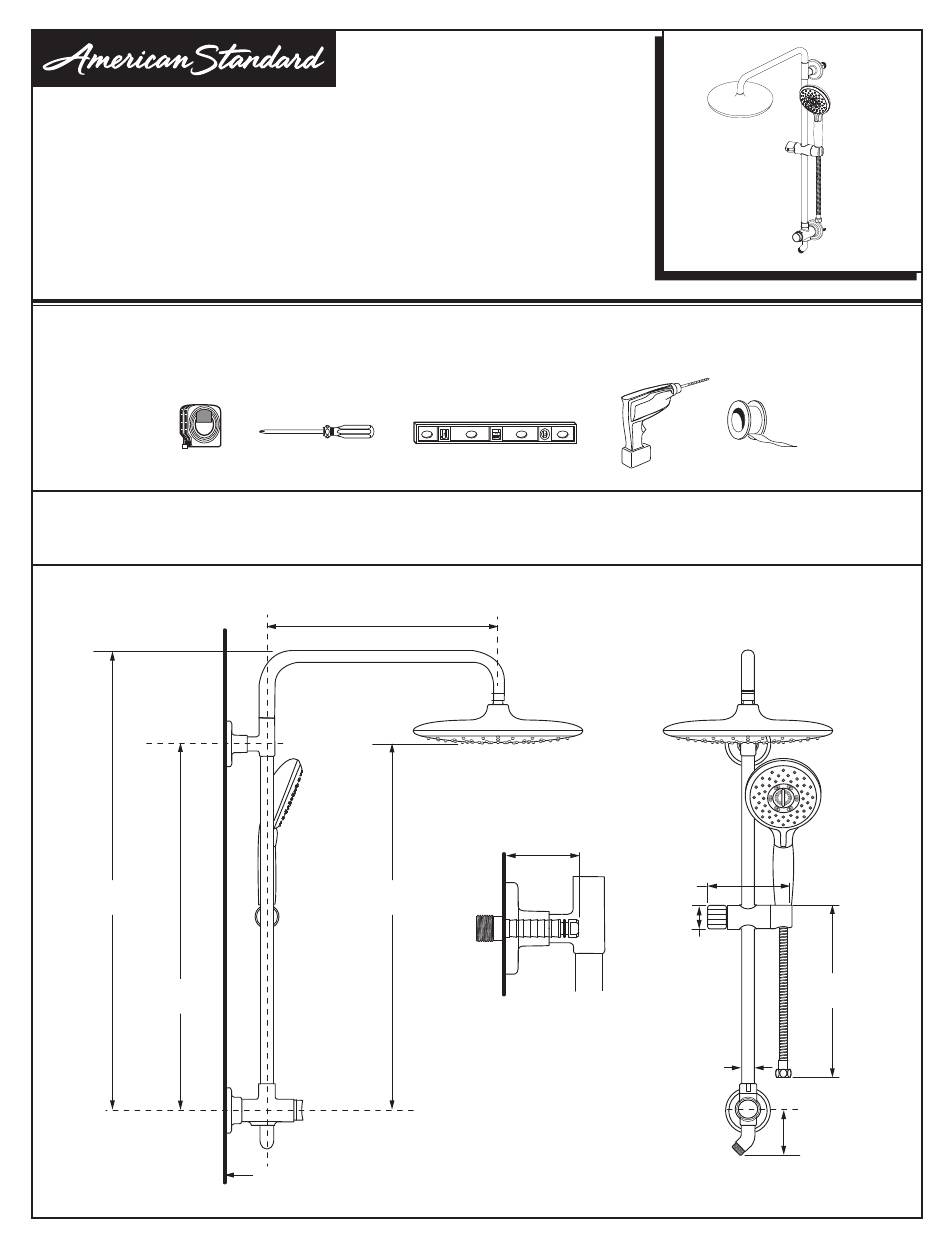

Spectra Versa
Shower System
Thank you for selecting American Standard...
the benchmark of fine quality for over 140 years.
To ensure that your installation proceeds smoothly-please
read these instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
10'
Tape Measure
CARE AND CLEANING
Do: Simply rinse the product clean with clear water, dry with a soft cotton flannel cloth.
Do Not: Clean the product with soaps, acid, polish, abrasives, harsh cleaners, or a cloth with a coarse surface.
ROUGHING-IN DIMENSIONS:
• For reference
29-15/16±3/16"
(761±4 mm)
24±1/8"
(610±3 mm)
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2019
INSTRUCTIONS
™
Phillips Head Screwdriver
14-7/8±1/16"
(378±2 mm)
23-7/8"
(606.6 mm)
FINISHED
WALL
INSTALLATION
9038804
(1.8gpm)
9035804
(2.5gpm)
Level
MIN. 1" – MAX. 2-5/16"
(25 – 58 mm)
- 1 -
Certified to comply with ANSI A112.18.1M
Drill
Plumbers Tape
O-Ring Grease
1-1/2"
(38.8 mm)
69"
(1753 mm)
Ø 7/8"
(22 mm)
2-15/16"
(74.6 mm)
M985008 (2/19)
Advertisement
Table of Contents
Related Manuals for American Standard Spectra Versa 9038804
Summary of Contents for American Standard Spectra Versa 9038804
- Page 1 ™ 9038804 Shower System (1.8gpm) 9035804 Thank you for selecting American Standard... (2.5gpm) the benchmark of fine quality for over 140 years. To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin. Certified to comply with ANSI A112.18.1M...
- Page 2 INSTALL WALL ANCHORS • Remove Old Shower Arm (1). • STEP 1a Install adapter (3) by screwing it onto the pipe. Optional: Adapter (3) must protrude from the wall a minimum distance of 1" (25 mm) and a maximum distance of 2-5/16"...
- Page 3 INSTALL SHOWER BAR • Slide Escutcheon (1) and (2) onto the Shower Bar (5). • Apply o-ring grease to the two o-rings on Adapter (3). • Install Shower Bar (5) onto Adapter (3) and (4). • Tighten Set Screws (6). •...
- Page 4 INSTALL SHOWER ARM AND SHOWER HEAD • Slide shower Arm (1) into T-Holder (2). Optional: Slide 5" Extension Rod (5) into T-holder (2) and slide Shower Arm (1) into 5" Extension Rod (5). • Secure Shower Arm (1) with Set Screw (3). •...
- Page 5 THREAD HOSE • Thread Hose (1) onto shower bar. • Direct Spray into tub and turn hand shower valve on to clear any debris. • Thread Hose (1) into Hand Shower (2). • Use KNOB (3) on HOLDER (4) to adjust hand Shower (2) height on the slide bar. •...
