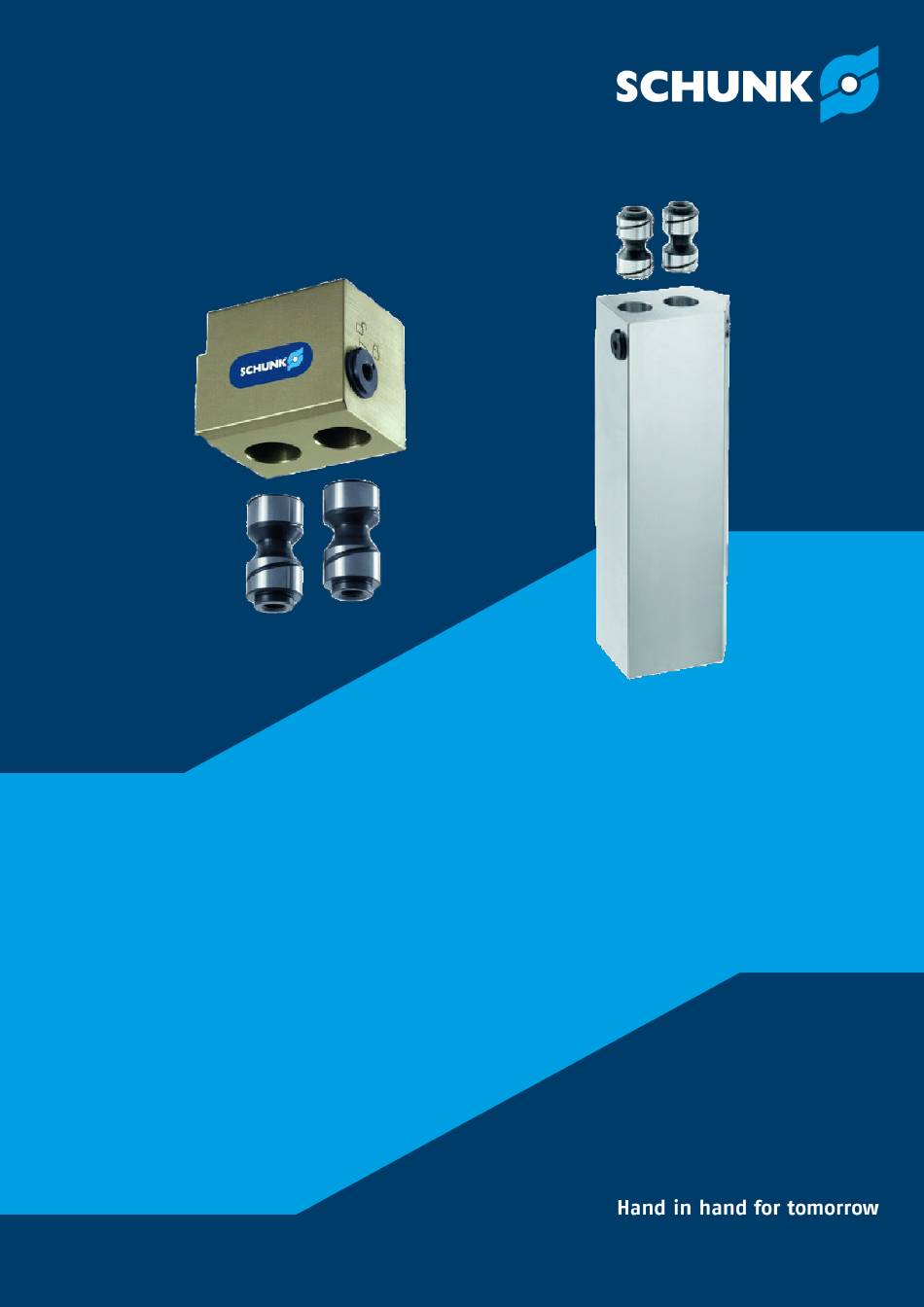

- Page 1 Assembly and Operating Manual BSWS Jaw-Quick-Change Translation of the original manual...
- Page 2 Imprint Imprint Copyright: This manual is protected by copyright. The author is SCHUNK SE & Co. KG. All rights reserved. Technical changes: We reserve the right to make alterations for the purpose of technical improvement. Document number: 0389702 Version: 06.00 | 01/02/2024 | en...
-
Page 3: Table Of Contents
5.2.2 Assembling the top jaw on the gripper ........... 22 5.3 Assembly of the kit for customer-specific top jaws ........23 5.3.1 Notes on producing customer-specific top jaws ........ 23 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... - Page 4 6.4 Maintenance of quick-change jaw system without additional height ..... 28 6.4.1 Disassembling the top jaw ............28 6.4.2 Servicing and assembling the top jaw..........29 6.5 Maintenance of the kit for customer-specific top jaws ........ 29 06.00 | BSWS | Assembly and Operating Manual | en | 0389702...
-
Page 5: General
Dangers for persons! Non-observance can lead to irreversible injury and even death. CAUTION Dangers for persons! Non-observance can cause minor injuries. CAUTION Material damage! Information about avoiding material damage. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 6: Applicable Documents
Observe the specified maintenance and lubrication intervals Observe the ambient conditions and operating conditions Parts touching the workpiece and wear parts are not included in the warranty. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 7: Scope Of Delivery
A wide range of accessories are available for this product For information regarding which accessory articles can be used with the corresponding product variants, see catalog data sheet. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 8: Basic Safety Notes
Use of unauthorized spare parts Using unauthorized spare parts can endanger personnel and damage the product or cause it to malfunction. Use only original spare parts or spares authorized by SCHUNK. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 9: Gripper Fingers
Due to their technical training, knowledge and experience, trained electricians are able to work on electrical systems, recognize and avoid possible dangers and know the relevant standards and regulations. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 10: Personal Protective Equipment
Wear protective gloves and safety goggles when handling hazardous substances. Wear close-fitting protective clothing and also wear long hair in a hairnet when dealing with moving components. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 11: Notes On Safe Operation
Falling and violently ejected components can cause serious injuries and even death. Take appropriate protective measures to secure the danger zone. Never step into the danger zone during operation. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 12: Protection Against Dangerous Movements
Before starting up the machine or automated system, check that the EMERGENCY STOP system is working. Prevent operation of the machine if this protective equipment does not function correctly. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 13: Technical Data
Ambient conditions and operating conditions Designation BSWS Ambient temperature [°C] min. max. +130 More technical data is included in the catalog data sheet. Whichever is the latest version. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 14: Design And Description

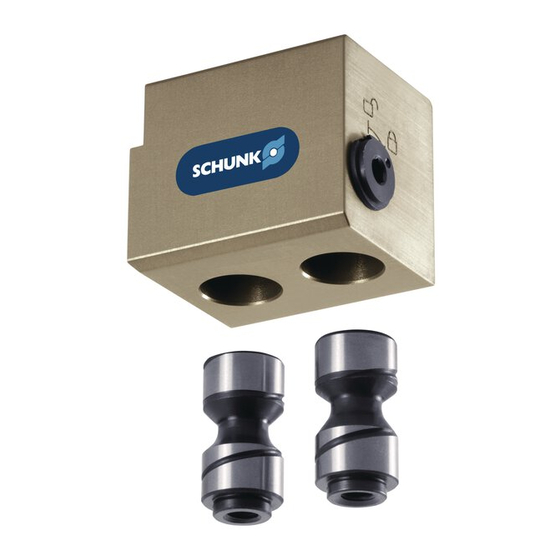

4.1 Quick-change jaw system (BSWS-A with BSWS-B) Quick-change jaw system Base (BSWS-B) Adapter (BSWS-A) The quick-change jaw system consists of two adapters (BSWS-A) and a base with change system (BSWS-B) per base jaw on the gripper, } 1.4 [/ 7]. NOTE The base with change system (BSWS-B) cannot be combined with the adapters (BSWS-AR). -
Page 15: Quick-Change Jaw System Without Additional Height (Bsws-Ar With Bsws-Abr Or Bsws-Sbr)
(BSWS-ABR) or steel (BSWS-SBR) per base jaw on the gripper, } 1.4 [/ 7]. NOTE The top jaw with change system made of aluminum (BSWS-ABR) or steel (BSWS-SBR) cannot be combined with the adapters (BSWS-A). 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 16: Kit For Customer-Specific Top Jaws (Bsws-Ur)
} 1.4 [/ 7]. Two adapters (BSWS-AR) are required for assembly on the gripper. NOTE The customer-specific top jaw with the kit (BSWS-UR) cannot be combined with the adapters (BSWS-A). 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 17: Assembly
Property damage due to incorrect top jaws! When using top jaws, the maximum permissible length and the maximum weight must not be exceeded. Observe the catalog data sheet. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 18: Assembly Of Quick-Change Jaw System
For the "SD" (dustproof) gripper variant, the screws are too short. Use longer screws for variant "SD". These are not included in the scope of delivery. Tightening torque Size Tightening torque [Nm] Tab.: Mounting screws, base 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 19: Assembling The Adapter On The Top Jaw
Assembling the adapter on the top jaw Fasten both adapters (1) to the top jaw (2) with screws (3). ð Secure the screws with Loctite No. 243. ð Observe the tightening torque. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 20: Assembling The Top Jaw On The Base
ð Das Symbol gibt ausschließlich die Drehrichtung vor. Die Markierung muss nicht genau bei stehen. ð Anzugsdrehmoment beachten. Tightening torque Size Tightening torque [Nm] Tab.: Lock bolt (2) 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 21: Assembly Of Quick-Change Jaw System Without Additional Height
For the "SD" (dustproof) gripper variant, the screws are too short. Use longer screws for variant "SD". These are not included in the scope of delivery. Tightening torque Size Tightening torque [Nm] Tab.: Mounting screws, adapter 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 22: Assembling The Top Jaw On The Gripper
ð Das Symbol gibt ausschließlich die Drehrichtung vor. Die Markierung muss nicht genau bei stehen. ð Anzugsdrehmoment beachten. Tightening torque Size Tightening torque [Nm] Tab.: Lock bolt (2) 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 23: Assembly Of The Kit For Customer-Specific Top Jaws
(7) of the top jaw (2) must point toward the center of the gripper, the tool center point (8). Installing the locking mechanism in a reversed ("mirrored") position is not possible. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 24: Assembling The Locking Mechanism In The Top Jaw
5.3.4 Assembling the top jaw on the gripper The top jaws are assembled on the gripper in the same way as for the quick-change jaw system without additional height, } 5.2.2 [/ 22]. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 25: Maintenance
NOTE Do not lubricate or oil the points on the lock bolt (1) and on the adapters (2) marked gray in the drawing. Areas not to be lubricated 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 26: Maintenance Of Quick-Change Jaw System
ð Baugröße 200 bis 300: Federndes Druckstück (10) herausdrehen. Remove the safety ring and retaining ring (1 and 4). Pull the lock bolt (3) out of the housing of the base (2). 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 27: Servicing And Assembling The Base
– Secure the pressure piece with Loctite No. 243. – Observe the depth of engagement. Depth of engagement Type Depth of engagement [mm] (Tolerance ±0.1 mm) BSWS 200 BSWS 240 BSWS 300 13.4 Tab.: Pressure piece 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 28: Maintenance Of Quick-Change Jaw System Without Additional Height
Screw out set-screw (5) and remove spring (4) and thrust bolt (3). Remove the safety ring/retaining ring (2). Pull the lock bolt (7) out of the top jaw (6). Remove the retaining ring (8). 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... -
Page 29: Servicing And Assembling The Top Jaw
6.5 Maintenance of the kit for customer-specific top jaws The top jaws are disassembled, serviced and assembled in the same way as for the jaw quick-change system without additional height, } 6.4 [/ 28]. 06.00 | BSWS | Assembly and Operating Manual | en | 0389702... - Page 30 06.00 | BSWS | Assembly and Operating Manual | en | 0389702...
- Page 31 06.00 | BSWS | Assembly and Operating Manual | en | 0389702...
- Page 32 SCHUNK SE & Co. KG Toolholding and Workholding | Gripping Technology | Automation Technology Bahnhofstr. 106 - 134 D-74348 Lauffen/Neckar Tel. +49-7133-103-0 info@de.schunk.com schunk.com Folgen Sie uns I Follow us Wir drucken nachhaltig I We print sustainable...
