Summary of Contents for Bay Tek Games TOWER OF TICKETS RELOAD

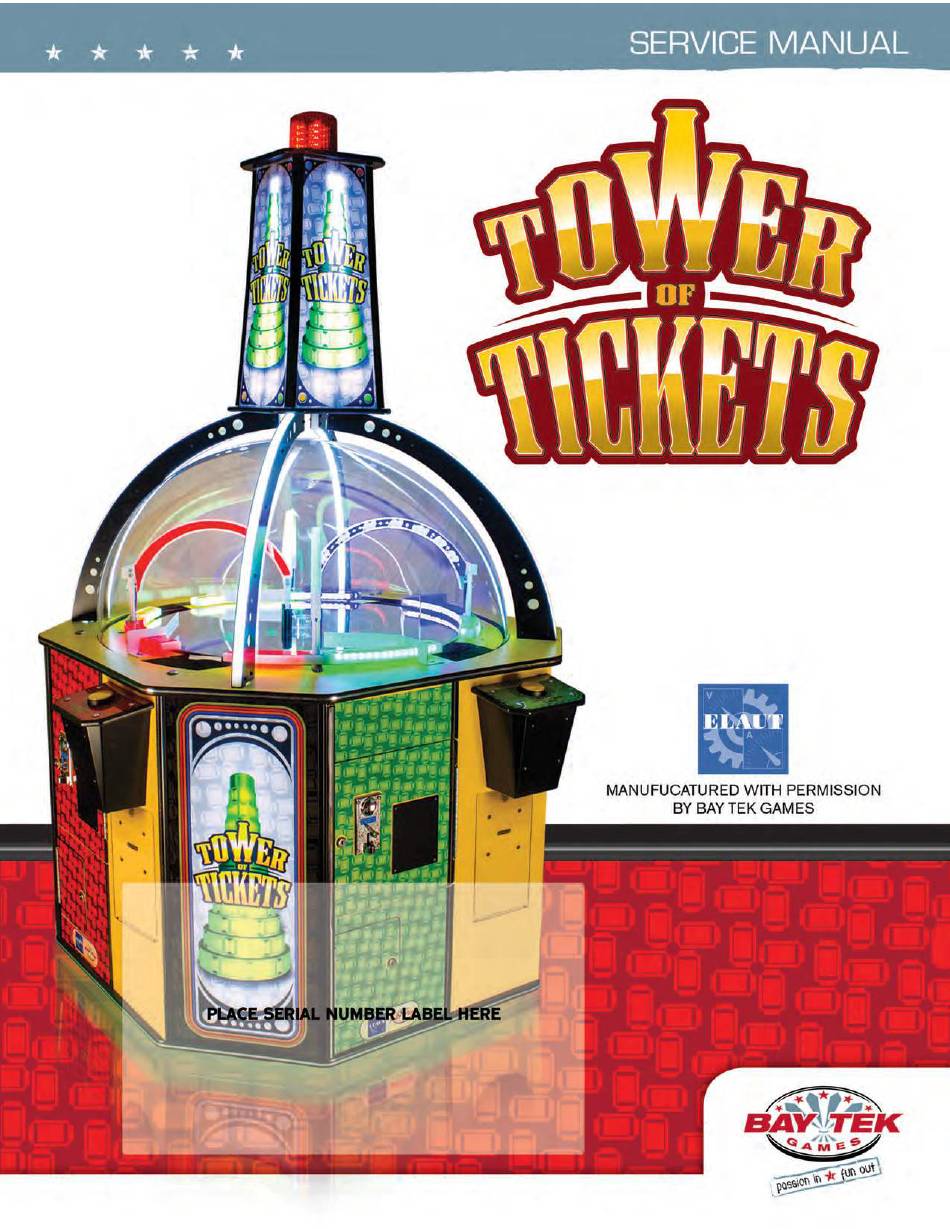

  • Page 1 RELOAD...

  • Page 2: Factory Contact Information

    FACTORY CONTACT INFORMATION BAY TEK GAMES INC. TOWER OF TICKETS IS AN ELAUT Pulaski Industrial Park GAME, BUILT WITH PERMISSION 1077 East. Glenbrook Drive BY BAY TEK GAMES. Pulaski, WI 54162 USA JOIN OUR SERVICE FIRST NETWORK! This free service is intended to keep you up to date on the latest game information, early noti昀椀cation of parts specials, pertinent technical...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS FACTORY CONTACT INFORMATION ......2 WELCOME TO: Tower of Tickets: RELOAD ......4 HOW TO PLAY .
  • Page 4 Your Friends at Bay Tek Games GAME INSPECTION Inspect the game for any damaged, loose, or missing parts. If damage is found, please contact your freight carrier 昀椀rst. Then, contact Bay Tek Games’ Service Department at 920.822.3951 or e-mail them at service@baytekgames.com for further assistance.

  • Page 5: How To Play

    HOW TO PLAY Choose one of the four brightly-colored player sta- tions. Simply press the button to activate the swinging arm. Time your move just right to push a Tower of Tickets off the rotating platform... Score tickets when the Tower lands on the platform!

  • Page 6: Specifications

    GAME SPECIFICATIONS WEIGHT POWER REQUIREMENTS INPUT VOLTAGE 100 to 120 220 to 240 NET WEIGHT 480 lbs. RANGE SHIP WEIGHT 540 lbs. INPUT FREQUENCY 50 HZ 60 HZ DIMENSIONS RANGE WIDTH 55” MAXIMUM CURRENT DEPTH 55” 5.5 AMPS @ 115 VAC HEIGHT 85”...

  • Page 7: Game Settings

    GAME SETTINGS The volume adjust knobs and dip switch bank are located on the mainboard, inside the RED door. *factory default settings are highlighted below GAME VOLUME ALARM VOLUME* (TILT BOB) DO NOT REMOVE THE A5MB5150 FROM THE MAIN BOARD! SWITCH DESCRIPTION Credits per Play adjust...

  • Page 8: Set Up Guide

    QUICK SET UP GUIDE Place the game near its final location. Unlock the dome and open (see page 11); remove and unpackage the four button boxes. The hardware packet is located in the red station cashbox. Attach the four button boxes to the sides of the cabinet using included washers and lock nuts.
  • Page 9 QUICK SET UP GUIDE Remove the plastic top of the red beacon (found inside the dome) by turning it counter-clockwise. Plug in the beacon cable at the top of the marquee and place the beacon so that the red button is aligned with the cut out area (button should NOT be pressed in).
  • Page 10 QUICK SET UP GUIDE Evenly distribute the ticket tower kit across the mirror. See page 11 for information about the ticket tower rolls. Close the dome and secure the three latches. Plug power cord into a standard electrical outlet and turn the power switch on the outlet strip (inside the red station door) to ON.
  • Page 11 TICKET TOWER ROLL KITS To order replacement RFID Ticket Tower rolls, contact: Bay Tek Games: 920-822-3951 and order part number A5TT5155/R A full Ticket Tower roll kit consists of: 40- 150 POINT ROLLS 2- 300 POINT ROLLS 1- 500 POINT ROLL...

  • Page 12: How To: Open Dome

    HOW TO: OPEN DOME Open the Red, Green and Orange doors, and unhook the latches directly above the lock brackets. Lift the dome from the Red side; it will hinge back and rest in an open position. HOW TO: ACCESS COMPONENTS Unlock and open the Red access door.
  • Page 13 HOW TO: ACCESS INTERNAL WIRING/MOTORS Open the dome (see page 11), and remove the 4 screws securing the playfield. Disconnect each of the 5 motor cables and lift the playfield off of the cabinet. You now have access to the turntable motor, the arm motors, the win spot motors/RFID and the player button assemblies.
  • Page 14 MAINBOARD PINOUT (AAMB5150) To Power Board Beacon Tilt Bob ACE5192 ACE5175 AACE5153 Main Board AAMB5150 Marquee Speaker ACE5159 Station Speakers 1-4 AACE5159 Power Supply Station 4 Ribbon AACE5167 Station 1 Ribbon AACE5167 Station 3 Ribbon Station 2 Ribbon AACE5167 AACE5167...
  • Page 15 DOOR BOARD PINOUT (AAMB5155) X 4 Power In Side Cabinet AACE5191 Tickets Support LED Support LED Counters AACE5184 AACE5154 AACE5178 AACE5162 AACE5156 Arm Motor AACE5168 DOOR BOARD AACB5155 Reload Motor AACE5184 Coin Main Board Ribbon AACE5157 AACE5167 LowTix Light AACE5187 Low TixSwitch Menu Button Arm LED...
  • Page 16 POWER DIST. BOARD PINOUT Main Board To Door Board To Door Board AACE5191 AACE5191 To Door Board To Door Board AACE5191 AACE5191 Power Supply Power Supply...
  • Page 17 WIRING DIAGRAMS (DOOR BOARD) ARM MOTOR, COUNTERS, TICKET MECH, COIN COMP, BUTTON A5TD1 A5CM-AS-COMP Ticket Mech AAMO5150                            Arm Motor    AACE5157                                AACO1000 Coin Cable  Counters AACE5184                                AACE5156                                Ticket Ticket Cable  Counter Cable  Counter Game Counter A5PB7300 AACE5155                                 Player Bu�on Cable   ...
  • Page 18 WIRING DIAGRAMS (DOOR BOARD) RETURN MOTOR, SENSORS, DBA, MENU BUTTONS, LEDs A5MO5155                               Reload Motor         Marquee                                  Support                                      AACE5173                              Arms    LED light strip  AACE5178/5162              AACE5185                           Reload Motor  Cable        AACE5190                           Reload Motor  Sensor       AACE5188                           Motor Sensor  Cable        AACE5166                                Playeld Light Jumper  AACE5169 To Bill Acceptor (Part # A5AC9091) Optional –...
  • Page 19 WIRING DIAGRAMS (DOOR BOARD) POWER IN, LOW TICKET SWITCH & INDICATOR A5MO5155                               Power Board         A5MO5191                               Power Board     Cable        ...
  • Page 20 WIRING DIAGRAM (MAIN BOARD) Under Glow Lights  AACE5171  Beacon          Plumb Bob     AABA0002  A5TI1001  Under Glow  Cable AACE5171  Beacon Cable  AACE5182  AACE5153                                   Plumb Bob Cable  Marquee Lights  Main Ground Lug                AACE5172  A�ached = AACE5168 (4)         AACE5181(1)  AACE5170                                 Marquee Cable  Speaker Speaker Power Supply AAPS1008-TOT Speaker Speaker AC Power to Power Supply Speaker         AACE8811  A5CORD5    ...

  • Page 21: Wiring Diagrams

    WIRING DIAGRAMS POWER IN, MARQUEE SPEAKER Speaker          AACE8811  Speaker AACE5175                                Marquee Speaker  Cable  Power Supply Plug In From Power Supply...
  • Page 22 WIRING DIAGRAMS AC POWER SUPPLY IN & OUT, POWER BOARD Power to Main Board  AACE 5168                             Sensor Cable  AACE5191                                Power Out to Door  Boards  AC Power to Power Supply Bill Acceptor AAPS1008-TOT AACE2316   AC Power to Power Supply Line Filter A5CORD5 A5FI9010 Power Supply Cord      ...

  • Page 23: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Troubleshooting Strategy Use common sense and a systematic method of troubleshooting to determine the exact problem, probable cause and remedy. Use the process of elimination to find the faulty component. Always check for the simple and obvious causes first such as unplugged, loose or broken wires and bad sensors, bent, pinched, stuck or jammed components.  Problem Probable Cause Remedy...
  • Page 24 TROUBLESHOOTING GUIDE Problem Probable Cause Remedy Main Board and WIRING TO Power Supply OK. No Communication between boards. Check green LED’s on Central Main board. “Power” Blinking ON If “Power” is not blinking ON If Led’s are not on    ...
  • Page 25 TROUBLESHOOTING GUIDE Problem Probable Cause Remedy Playfield Arms moving too Home / Away Sensor under A. Adjust Sensors in and out to stop arm far in/out playfield is faulty movement. Sensor wiring broken B. Trace wiring from Sensors to Door Board.
  • Page 26 TROUBLESHOOTING GUIDE Problem Probable Cause Remedy Marquee Lights are out A. Trace wiring from the corner of the Ensure Marquee Cable is cabinet to the Power Supply. The power plugged in at the inter- section between the supply is the feed for power on these dome and cabinet, by the lights.

  • Page 27: Bill Acceptor Diagnostics

    BILL ACCEPTOR DIAGNOSTICS Note: There are many different models and brands of Bill Acceptors that are used on redemption games. Your Bill Acceptor may differ from the unit shown. A “Upstacker” should be used for clearance issues. Standard DBA is MEI # AE2431-D5E Part # A5AC9091 Determine if Bill Acceptor has power: Turn game ON—The bill acceptor should make noise as stacker cycles and green lights on outside bezel should flash.

  • Page 28: Software Updates

    SOFTWARE UPDATE 1.  With the game power on, locate the Central Main Board, USB Input and Boot Bu�on  (Red).   2.  Plug the new so�ware loaded onto the USB s�ck into the port provided.  3. Tap the Boot Bu�on (Red), watch the Led on the board as it goes off,  and comes back on.  It should then blink three �mes, then go to a steady ashing. Take the USB s�ck out. The  game will boot up normally from here.  4. The game is now ready for play and has the newest version so�ware loaded . ...

  • Page 29: Decal Identification

    DECAL IDENTIFICATION A5DE5150_TOT_MarqueePanels A5DE5169_TOT_RingGreen A5DE5157_TOT_ArmLtBlue A5DE5178_TOT_ArmRtRed A5DE5179_TOT_RingRed A5DE5159_TOT_RingBlue A5DE5176_TOT_ControlPanelRed A5DE5161_TOT_CabTopGreen A5DE5171_TOT_CabTopRed A5DE5166_TOT_ControlPanelGreen A5DE5172_TOT_CabMidRed A5DE5173_TOT_CabBottomRed A5DE5174_TOT_CashDoorRed A5DE5162_TOT_CabMidGreen A5DE5165_TOT_CabPrizeDoorGreen A5DE5175_TOT_CabPrizeDoorRed A5DE5163_TOT_CabBottomGreen A5DE5160_TOT_CornerPanels A5DE5164_TOT_CashDoorGreen NOT VISIBLE ON PHOTO: A5DE5151_TOT_CabTopBlue A5DE5167_TOT_ArmLtGreen A5DE5185_TOT_CabPrizeDoorYellow A5DE5152_TOT_CabMidBlue A5DE5168_TOT_ArmRtGreen A5DE5186_TOT_ControlPanelYellow A5DE5153_TOT_CabBottomBlue A5DE5177_TOT_ArmLtRed A5DE5187_TOT_ArmLtYellow A5DE5154_TOT_CashDoorBlue A5DE5181_TOT_CabTopYellow A5DE5188_TOT_ArmRtYellow A5DE5155_TOT_CabPrizeDoorBlue A5DE5182_TOT_CabMidYellow A5DE5189_TOT_RingYellow A5DE5156_TOT_ControlPanelBlue A5DE5183_TOT_CabBottomYellow A5DE5158_TOT_ArmRtBlue...

  • Page 30: Dimensions

    THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF FINISH BAY TEK GAMES. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF BAY TEK GAMES SCALE: 1:1.25 WEIGHT: SHEET 1 OF 1 IS PROHIBITED.

  • Page 31: Maintenance Log

    MAINTENANCE LOG If repairs are necessary, it is good practice to keep a log of repairs done and parts ordered. The chart below will assist you in tracking your game’s maintenance. DATE MAINTENANCE PERFORMED PARTS ORDERED INITIALS...

  • Page 32: Technical Support

    Bay Tek games. Many of our games share the same main-board electronics. This means you can buy one set of spare electronics to support many of your Bay Tek games. Spare boards allow you to get your game up and running the quickest and provide you a valuable troubleshooting option. Call our...

  • Page 33: Warranty

    WARRANTY Bay Tek Games warrants to the original purchaser that all game components will be free of defects in workmanship and materials for a period of 6 months from the date of purchase. If you 昀椀ll out the registration card in the cashbox of the game, Bay Tek will add another 3 months to your warranty, free of charge.
