SETUP
NOTICE! If you don't do this adjustment, there's a risk that the drawbar can loosen, or that operations can be
louder than normal.
1. Examine the space between the hex head screw on the Power Drawbar cylinder's rod and the top of the
drawbar.

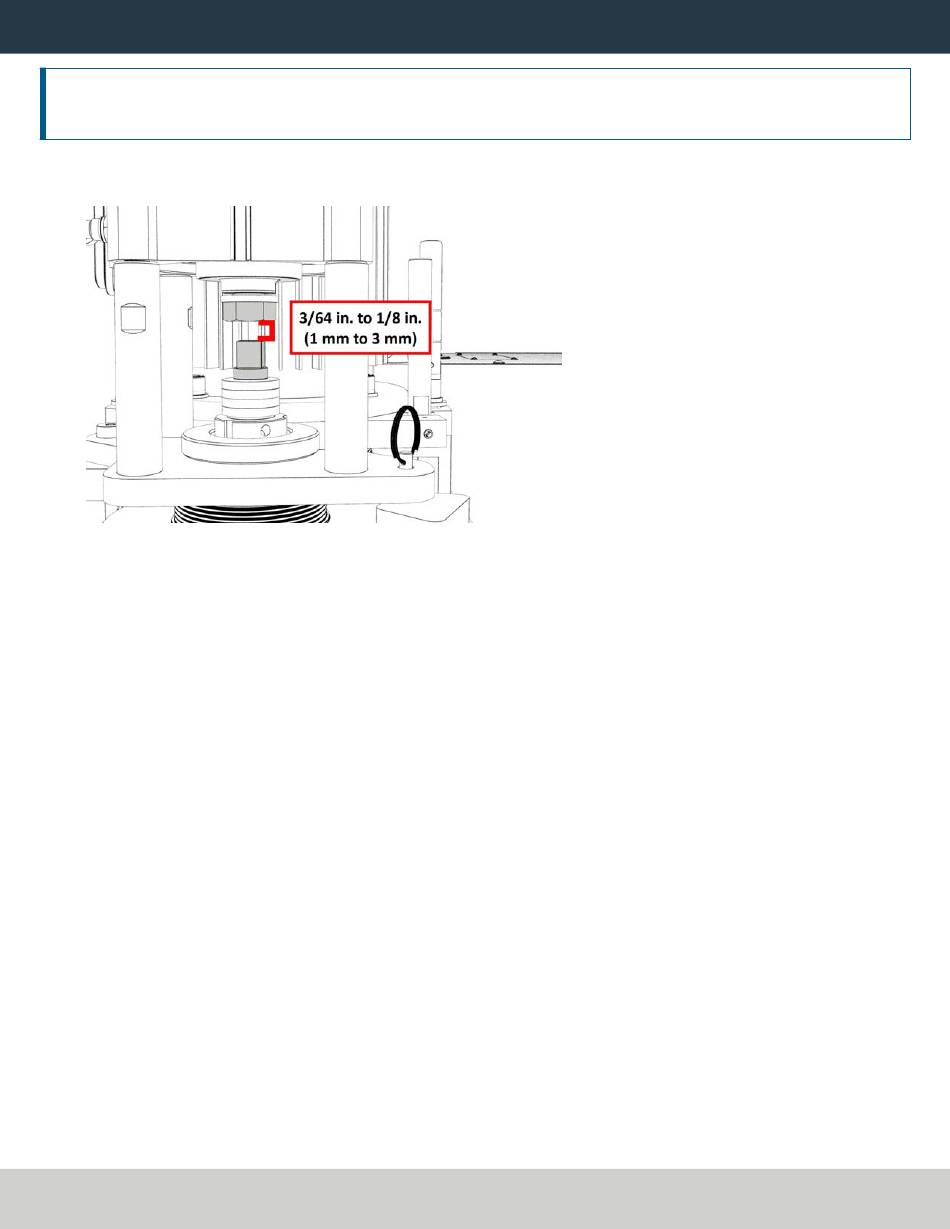

Figure 17: Correctly spaced drawbar and Power Drawbar cylinder.
2. Verify that the gap is between 3/64 in. and 1/8 in. (1 mm and 3 mm). Depending on the size of the gap, do
one of the following:
Between 3/64 in. and 1/8 in. (1 mm and 3 mm) You have completed adjusting the initial setup. Go
l
to Operation.
Less Than 3/64 in. (1 mm) Go to Step 3.
l
3. Disconnect the shop's air supply from the Power Drawbar button.
4. Pull out the quick-release pin.
