Ruckus Wireless Unleashed M510 Quick Setup Manual

Unleashed M510
Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to set up
your Ruckus Networks Unleashed M510 Dual Band 802.11ac Wi-Fi + LTE
Access Point.
After completing the steps described in this guide, you will be able to place
the Access Point (AP) at your site and begin providing wireless network
access to users.
For detailed information on configuration and administration of your
Ruckus Unleashed M510 AP, refer to the Unleashed Online Help, available
from https://docs.ruckuswireless.com/unleashed/200.7/index.html.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
https://
support.ruckuswireless.com.
• Vous trouverez la version française de ce guide à l'adresse suivante
https://support.ruckuswireless.com.
• このガイドの日本語版は
https://support.ruckuswireless.com
ください。
• 이 가이드의 한국어 버전은 웹 사이트
(https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de esta guía en
support.ruckuswireless.com.
Before You Begin
Before deploying Ruckus Wireless products, please check for the latest
software and the release documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at http://support.ruckuswireless.com/
software.
• Open source information is available at http://
opensource.ruckuswireless.com.
• Software license and limited warranty information are available at
http://support.ruckuswireless.com/warranty.
Unleashed M510 Package Contents
The Unleashed M510 Access Point installation package includes all of the
following:
• M510 Dual-Band 802.11ac Wave 2 Access Point with LTE Backhaul
• GPS antenna
• 2 LTE antennas
Copyright © 2024 CommScope, Inc. All rights reserved.
Published March 2024, Part Number 800-71989-001 Rev B
• T-bar mounting bracket and T-bar mounting clip
• 2 plastic wall anchors and #8 mounting screws
• Unit removal pin
• Service Level Agreement/Limited Warranty Statement
• Declaration of Conformity, Regulatory Statement
• This Quick Setup Guide

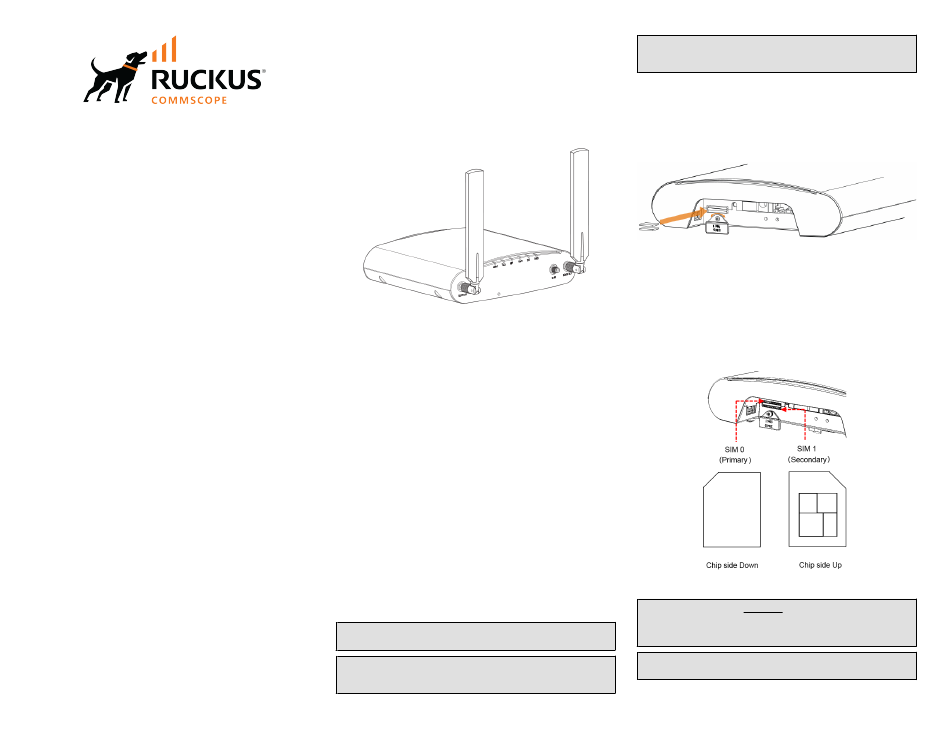

FIGURE 1 M510 Access Point
Sold Separately
The following optional accessories are sold separately.
• 12V DC power supply
• Flange Mount Bracket Kit
でご覧
Required Hardware and Tools
• No. 2 Phillips screwdriver
• T8 Security Torx driver for SIM slot cover
https:// • 802.3af or 802.3at-compliant Power over Ethernet (PoE) switch or PoE
injector for PoE power
https:// • Electric drill with drill bit for flat-surface mounting
Initial Setup
Perform the initial setup depending on your deployment scenario.
The M510 can be connected to WAN via LTE or via Ethernet (with the LTE
connection as a backup for WAN failover).
http://
Attach the two LTE antennas and (optionally) the GPS antenna, and
perform the initial setup according to your deployment scenario:
• Mobile Environment: M510 configured as Master AP in Gateway Mode
with an LTE connection as the uplink WAN port.
• LTE Backup Environment: M510 in Gateway Mode with the Ethernet
port as the WAN port and the LTE connection as the backup WAN port,
only one of which can be active at any time. If the Ethernet connection
goes down, the LTE connection becomes active to provide a backup
internet uplink.
NOTE: If you are using Ethernet as the primary WAN link with LTE as a
backup, connect an Ethernet cable to the WAN port.
NOTE: M510 does not support deployment as the Master AP in Bridge
mode or as a member AP. Only Master AP in Gateway mode is
supported.
NOTE: Write down the IMEI number of the M510, printed on the gift
box, and also on the AP. This may be required by your mobile service
provider to activate your data plan.
Inserting the SIM Cards
Plug an activated SIM card into the primary slot, and optionally, a second
SIM card into secondary slot for redundancy.
FIGURE 2 Rotate SIM card cover, insert SIM card(s)
a) Insert the Primary SIM card into the top slot (when the AP is upright).
Ensure that you insert the Primary SIM card with the copper side
facing down, and the notch to the left side.
b) Insert the Secondary SIM card into the bottom slot. Ensure that you
insert the secondary SIM card with the copper side facing up, and the
notch to the right side.
FIGURE 3 The orientation of the two SIM cards is reversed, be sure to
insert them correctly
NOTE: The M510 supports Micro-SIM sized SIM cards only. The
orientation of the SIM cards is different, be sure to insert the SIM cards
correctly. Inserting the SIM cards incorrectly will result in the inability to
use the LTE functionality.
NOTE: If the SIM card is inserted or replaced after bootup, a reboot is
required.
