T310d Access Point
Quick Setup Guide
CAUTION! The minimum software revision for the
T310d is ZoneDirector (ZD) 10.1 or later, or SmartZone (SZ)
3.6 or later, or standalone AP firmware 108.0 or later.
This Quick Setup Guide provides step-by-step instructions on how to
field-install the Ruckus Wireless T310d access point (AP).
For detailed information on planning the installation, performing a site
survey, and operating the T310d, refer to the Outdoor Access Point
User Guide, available at https://support.ruckuswireless.com.
WARNING: Only trained and qualified personnel should be allowed to
install, replace, or service this equipment.
WARNING: Installation of this equipment must comply with local and
national electrical codes.
CAUTION: Make sure that you form a 80mm - 130mm (3"-5") drip
loop in any cable that is attached to the AP or the building. This will
prevent water from running along the cable and entering the AP or the
building where the cable terminates.
CAUTION: Be sure that grounding is available and that it meets local
and national electrical codes. For additional lightning protection, use
lightning rods and lightning arrestors.
CAUTION: Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
WARNING: Ruckus Wireless strongly recommends that you wear eye
protection before mounting the T310d.
Copyright © 2017 Ruckus Wireless, Inc.
Published July 2017, Part Number 800-71482-001 Rev A
T G O L
HIS UIDE IN THER ANGUAGES
请从以下网站获得该指南的简体中文版
https://support.ruckuswireless.com.
Vous trouverez la version française de ce guide à l'adresse suivante
https://support.ruckuswireless.com.
こ の ガ イ ド の⽇本語版は
https://support.ruckuswireless.com
で ご 覧 く だ さ い。
이 가이드의 한국어 버전은 웹 사이트
(https://support.ruckuswireless.com) 에서 확인하시기 바랍니다 .
Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía en
https://support.ruckuswireless.com.
B Y B
EFORE OU EGIN
Before deploying your Ruckus Wireless T310d, verify that all items
listed in Package Contents are included in the package. If any item is
damaged or missing, notify your authorized Ruckus Wireless sales
representative. Also, make sure that you have the required hardware
and tools.
R H T
EQUIRED ARDWARE AND OOLS
• No. 2 Phillips screwdriver
• Small flat-blade screwdriver
• Torque wrench or torque screwdriver with sockets
• Long-nose pliers
• Electrical wire stripping and terminal crimping pliers
• Pipe or pole --OR-- a sturdy flat surface
• Electric drill with drill bits and customer-supplied wall anchors, flat
washers, and hex nuts for flat-surface mount
P C
ACKAGE ONTENTS
A complete T310d field installation package includes all of the items
listed below (see Figure 1for illustrations):
• T310d Access Point (A)
• Two M25 data cable glands (B)
• Ground wire with lug (C)
• Pole/Wall Mount Bracket Kit (D)
• Two steel pipe clamps
• Service Level Agreement/Limited Warranty Statement
• Declaration of Conformity
• Regulatory Statement
• Ruckus Wireless AP Getting Started Guide
• This Quick Setup Guide

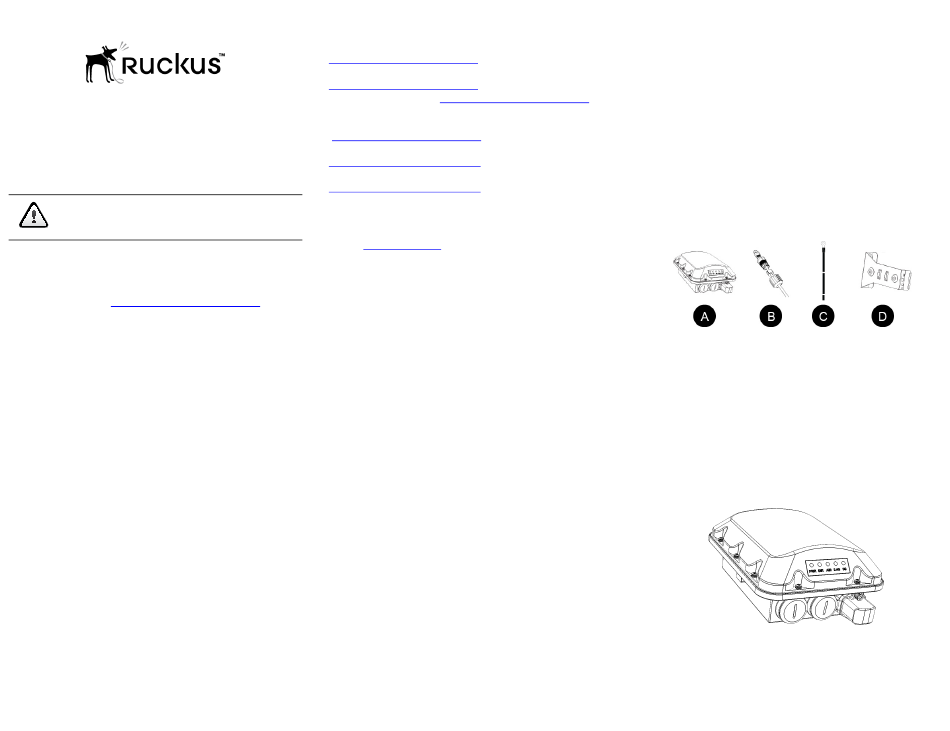

Figure 1: Package Contents
M I
OUNTING NSTRUCTIONS
S 1: C S
TEP ONNECTING AND EALING THE
C
ABLES
Connect and seal the RJ-45 cable(s) using the M25 data cable gland
as shown in Figure 3.
WARNING: Do not use any PoE injector not tested and approved by
Ruckus Wireless to power the T310d Access Point.

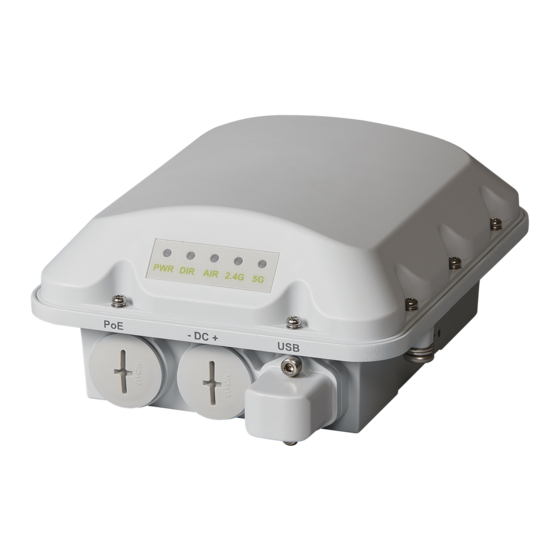

Figure 2: T310d LEDs and Ports
RJ-45
