Ruckus Wireless R610 Quick Setup Manual

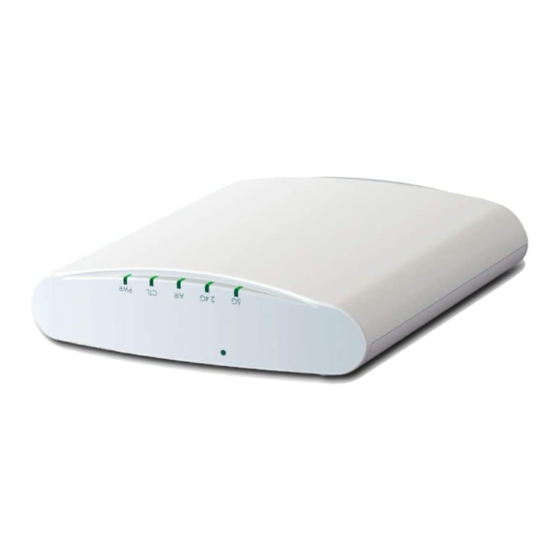

Unleashed R610 Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step
instructions on how to set up your Ruckus Wireless
Unleashed R610 Dual Band 802.11ac Multimedia Wi-Fi
Access Point (AP).
For detailed information on configuration and
administration of your Unleashed R610, refer to the
Unleashed Online Help, available from https://
docs.ruckuswireless.com/unleashed/200.4/index.html.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
.
https://support.ruckuswireless.com
• Vous trouverez la version française de ce guide à
l'adresse suivante
https://support.ruckuswireless.com
こ の ガ イ ド の⽇本語版は
•
https://support.ruckuswireless.com
で ご 覧 く だ さ い。
이 가이드의 한국어 버전은 웹 사이트
•
( ) 에서 확인하시기 바랍니다 .
https://support.ruckuswireless.com
• Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de
esta guía en
https://support.ruckuswireless.com.
Before You Begin
Before deploying Ruckus Wireless products, please
check for the latest software and the release
documentation.
• User Guides and Release Notes are available at
.
http://support.ruckuswireless.com/documents
• Software Upgrades are available at
.
http://support.ruckuswireless.com/software
• Open Source information is available at
.
http://opensource.ruckuswireless.com
• Software License and Limited Warranty are available
at
.
http://support.ruckuswireless.com/warranty
Copyright © 2017 Ruckus Wireless, Inc.
Published September 2017, Part Number 800-71495-001 Rev C
Package Contents
• R610 Access Point
• One wall-mount anchor kit, including two 1" No. 8
steel panhead Phillips sheet metal screws, one 5mm
M2.5 x 1.06 Torx security screw, and wall-mount
anchors
• One external T-bar bracket (two unassembled parts)
• One unit removal pin
• Regulatory flyer
• Product warranty statement
• Declaration of Conformity, if required
• This Quick Setup Guide
Step 1: Collect Tools and Setup Requirements
• A computer running Windows 7, 8, 10 or Mac OS X
(procedures for other OS's are similar)
• Two Cat 5e Ethernet cables
• No. 2 Phillips screwdriver and T8 Torx driver for wall
mounting anchor kit
• An AC power adapter (sold separately), or
• An 802.3af or 802.3at -compliant Power over
Ethernet (PoE) switch or PoE injector
• When mounting the R610 to a truss or pole, two
customer-supplied cable ties
.
Step 2: Connect the AP to Power and Your
Network

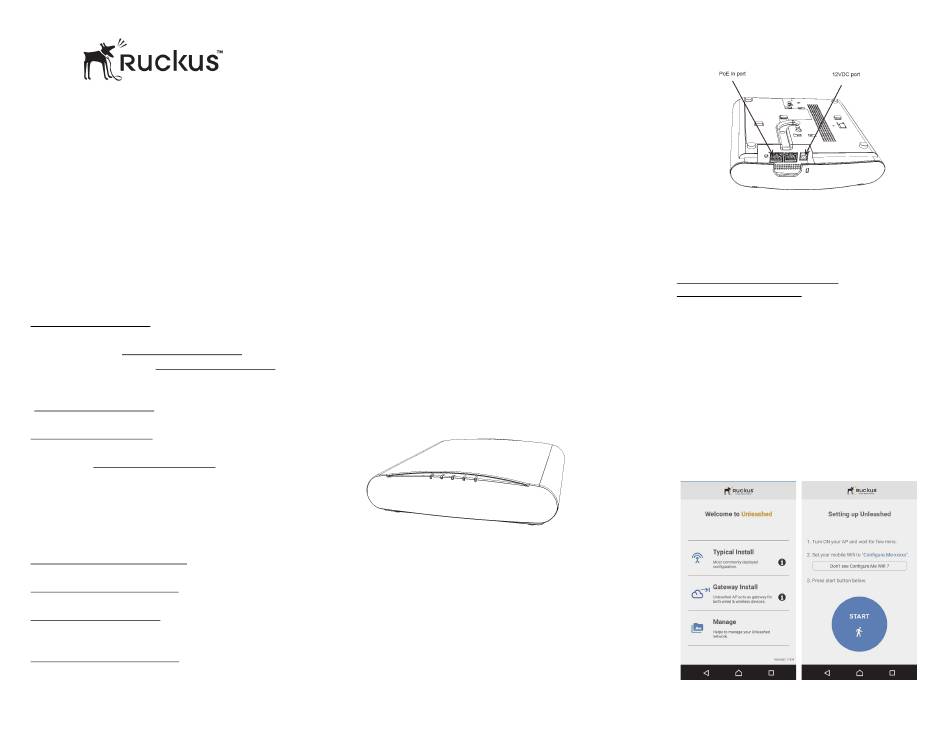

Figure 1: Top view
1 After removing your Unleashed AP from its package,
connect it to your network switch or router using an
Ethernet cable.
Using an AC adapter (sold separately), connect the
2
AP 12VDC port to a protected power source.
Alternatively, connect the 10/100/1000
a PoE injector or switch for both power and network
connectivity.
3 Verify that the Power LED on the external enclosure is a
steady green.
Figure 2: Bottom view
S 3: C
TEP ONFIGURE
Unleashed can be deployed using either a Mobile App, available for both iOS and
Android, or using your PC's web browser. Refer to the relevant section depending on
which method you prefer to use:
• Step 3a: Setup Using the Unleashed Mobile App
• Step 3b: Setup Using a Web Browser
Step 3a: Setup Using the Unleashed Mobile App
To perform setup using the Unleashed Mobile App, download the iOS or Android app
from the app store.
1
As soon as the Unleashed AP is powered on and connected
to the local network, it boots up and begins broadcasting a
temporary unencrypted WLAN named "Configure.Me-
[xxxxxx]" from both radios.
2
Using your client's Wi-Fi connection settings, select and
associate to the "Configure.Me-[xxxxxx]" WLAN.
3 Launch the app, and follow the on-screen instructions to
configure your Unleashed network(s).
Figure 3. Unleashed Mobile App for iOS and Android
port to
POE In
Y U N
OUR NLEASHED ETWORK
Page 1 of 4
