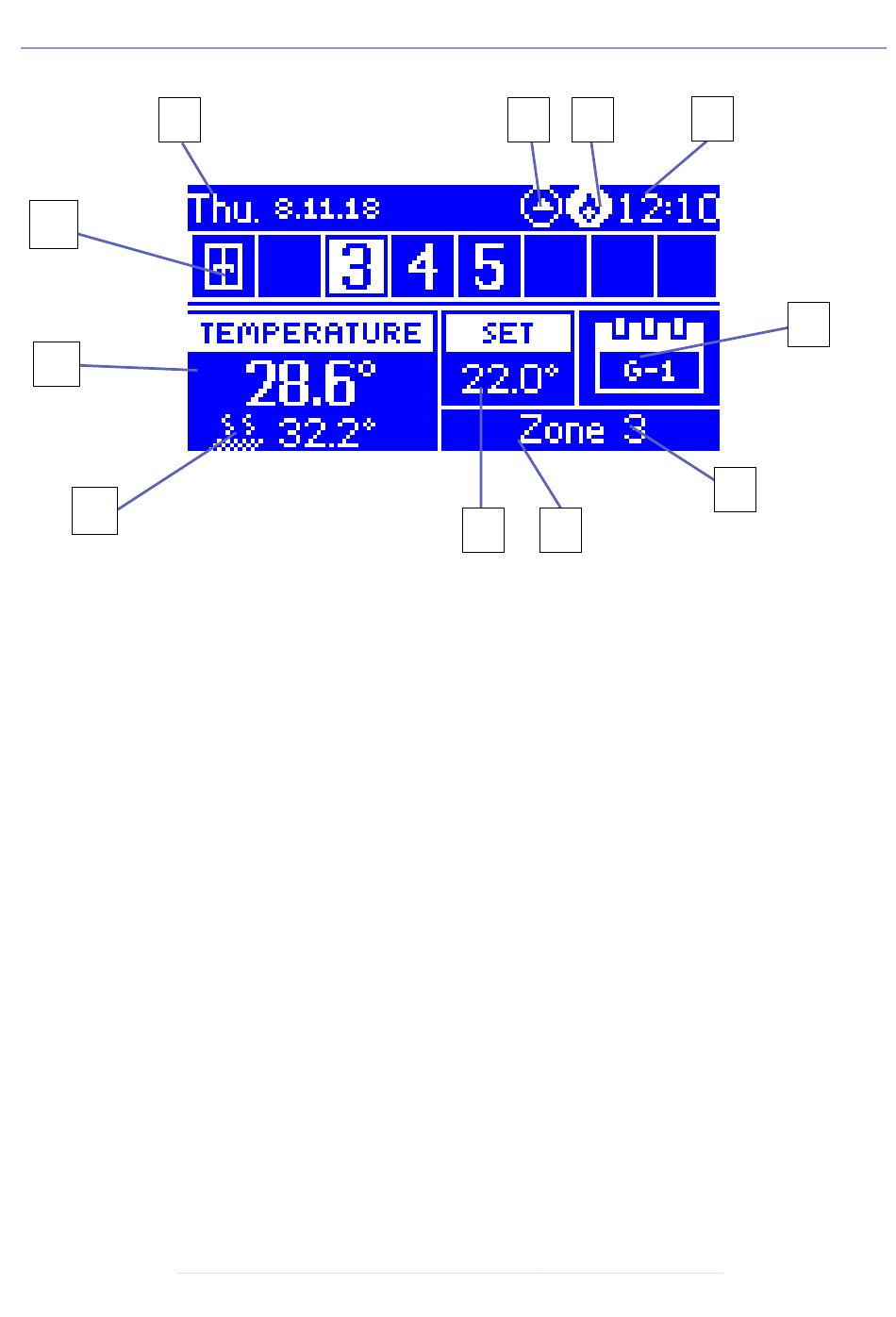

ZONE SCREEN
1
11
10
9
1. Current day of the week
2. Pump ON
3. Voltage-free contact ON
4. Current time
5. Current weekly schedule
6. C-8r battery level in a given zone (backlit numer in the zone bar – see: description np.12)
7. C-8r sensor signal strength in a given zone (backlit numer in the zone bar – see: description no.12)
8. Pre-set temperature in a given zone (blacklit numer in the zone bar – description no.12)
9. Current temperature of C-8f floor sensor in a given zone (blacklit numer in the zone bar – see: description no.12)
10. Current temperature of C-8r room sensor in a given zone (blacklit numer in the zone bar – see: description no.12)
11. Zone information:
•
The digit displayed indicates that the corresponding room sensor is connected and sends current temperature
information. If the zone temperature is too low, the digit flashes. In the event of a zone alarm, an exclamation
marki s displayed instead of the digit .
• In order to view the operation parameters of a given zone, select its numer using ▲ or ▼
2 3
8 7
15
4
5
6
