SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

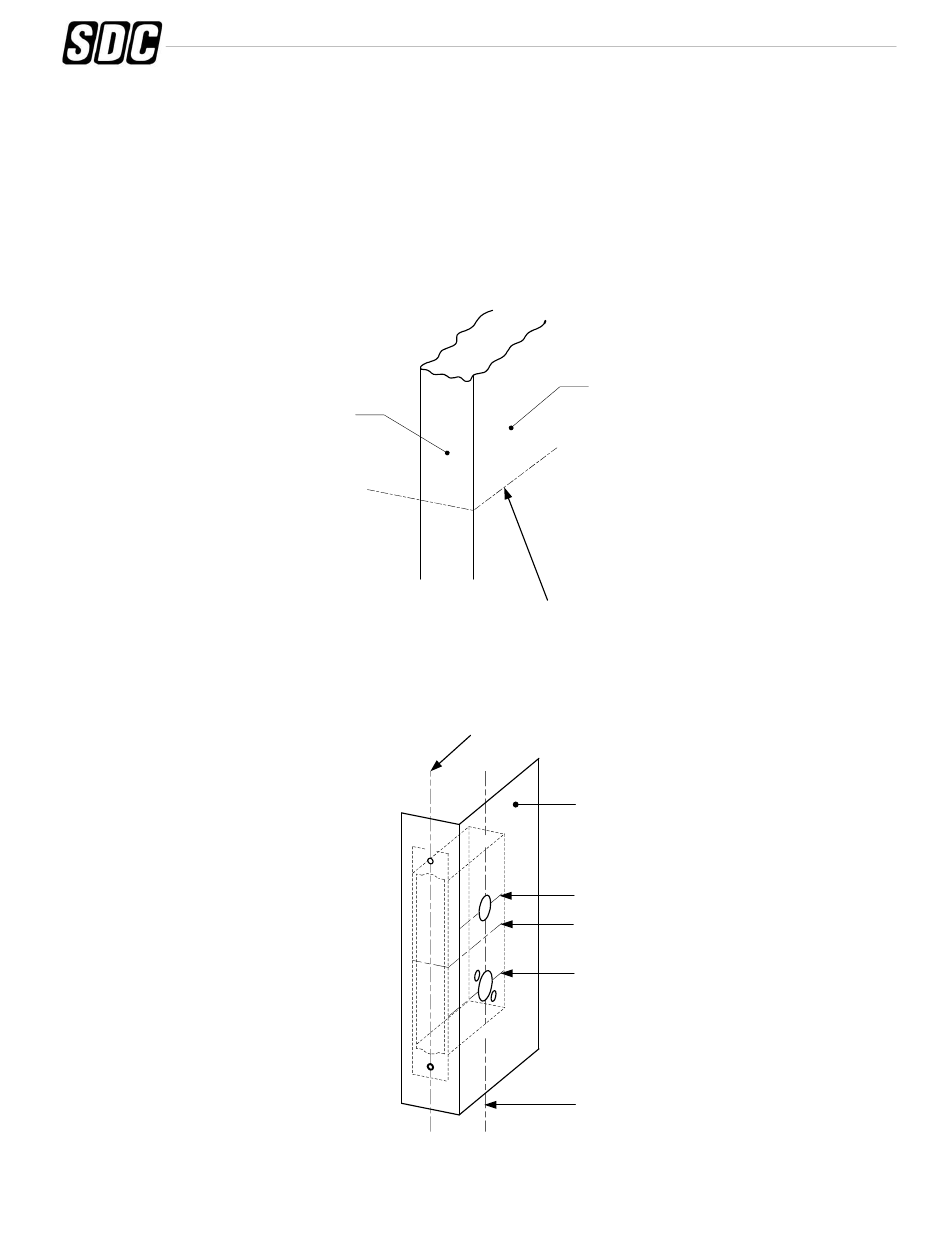

A. Door Preparation:
1. Measure desired height from finished floor and mark a horizontal line on door face and door edge.
2. Place template on edge of door as shown and align lever centerline with marked height line on door. Check the
chart for drilling trim holes on template and only mark holes for lock function being installed.
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7800_70_72_80_82
INSTALLATION INSTRUCTIONS
Z7870/72 & Z7880/82 PRO SERIES
SOLENOID CONTROLED
MORTISE DEADBOLT LOCKSET
Door Edge
Height line
Door Face
C L of Lever
C L
of Door Edge
Installation Template
C L
of Thumbturn
C L
of Lockcase
C L
of Lever
(rose trim mounting
holes shown)
Vertical Centerline
Any suggestions or comments to this instruction or
REV H
07-23
Page 1
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Related Manuals for SDC Z7870 PRO Series
Summary of Contents for SDC Z7870 PRO Series
- Page 1 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 INSTALLATION INSTRUCTIONS Z7870/72 & Z7880/82 PRO SERIES SOLENOID CONTROLED MORTISE DEADBOLT LOCKSET A. Door Preparation: 1.
- Page 2 3. Mortise door edge according to measurements on installation template and drill proper holes for trim. Dimensions for face plate recess: L 8-1/32" x W 1-5/16" x D 7/32". 1-5/16" 1-5/16" 7/32" Wire Raceway suggested for wood doors. Optional: SDC Door Core Drill Guide Kit P/N: 7000-DGK 8-1/32" 8-1/32" Rose Trim Escutcheon Trim Mounting Prep Mounting Prep B.
- Page 3 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 INSIDE OF DOOR Right Hand Left Hand C. Install Lockcase 1. Verify Handing Make sure the lock hand matches the door hand, use the following diagram to determine the hand of door.
- Page 4 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 C. Install Lockcase (Continued) 2. Change REX Handing (For devices with REX option only) To switch the handing for the REX option, follow the instructions below.
- Page 5 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 C. Install Lockcase (Continued) 3. Connect wires as shown on the lock cover diagram (or refer to page 8 of instructions). 4.
- Page 6 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 D. Install for 07 Lever Trim 1. Install the Outside Lever Assembly first. 2. Insert Spindle into the outside side of mortise lockset. 3.
- Page 7 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 D. Install for Escutcheon Lever Trim 1. Install the Outside Lever first. 2. Place Spindle Spring over outside Spindle, then insert Spindle into the outside sides of lockset. 3.
- Page 8 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 INSTALLATION WIRE DIAGRAM Model 7870/72 & 7880/82 Series STANDARD WIRING 12 or 24VDC (Locks are voltage specific) 12VDC@.6AMP;...
- Page 9 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 Z7870 (Failsafe) Lock Power (12VDC) Z7872 (Failsecure) Lock Power (12VDC) Access control always engages outside lever. *Install MOV Access control always engages outside lever.
-
Page 10: Standard Wiring
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 INSTALLATION WIRE DIAGRAM Models with optional cable connectors STANDARD WIRING (NO OPTIONS) 4 PIN CONECTOR MOV* *Install MOV across each coil to protect ACS electronics.
