SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

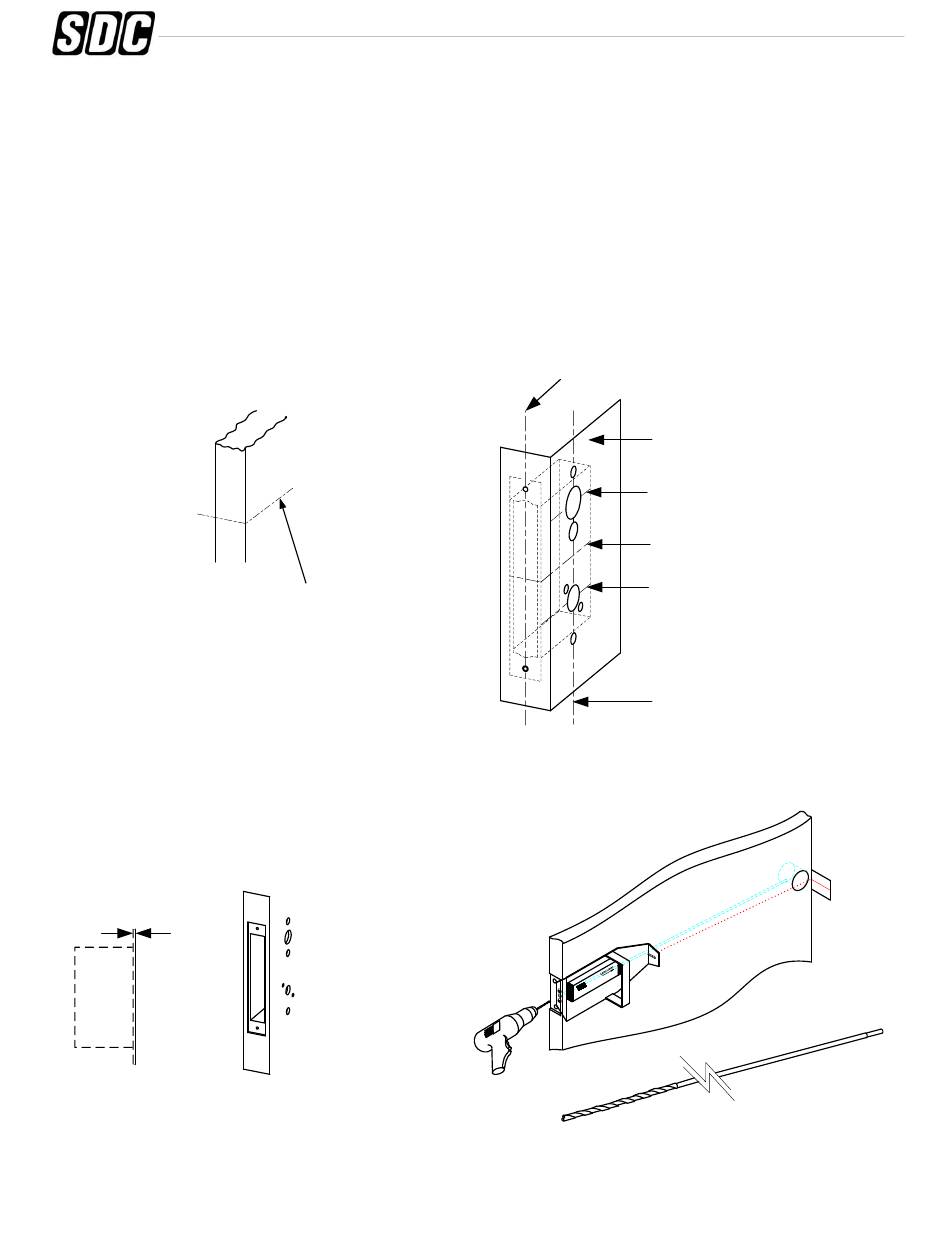

A. Door Preparation:
1. Measure desired height from finished floor, mark a horizontal line on door and door edge.
2. Align template on edge of door with applicable horizontal at height line. Check the chart for drilling trim
holes on template and mark only holes for lock function being installed.
Height
line
3. Mortise door edge according to measurements on
installation template and drill proper holes for trim.
4. Recess for face plate, the dimension is:
L 8-1/32" x W 1-5/16" x D 7/32".
7/32"
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7800_70_72_80_82
INSTALLATION INSTRUCTIONS
Z7870/72 & Z7880/Z7882
MORTISE LOCK
C L
of lever
or knob
C
L of
door edge
Installation
C L
C L
C L
OPTIONAL
DOOR CORE DRILLING GUIDE
#7000-DG
REV E
09-21
Page 1
template
of cylinder
of lockcase
of lever
or knob
Vertical centerline
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SDC Z7870
Summary of Contents for SDC Z7870
- Page 1 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 INSTALLATION INSTRUCTIONS Z7870/72 & Z7880/Z7882 MORTISE LOCK A. Door Preparation: 1. Measure desired height from finished floor, mark a horizontal line on door and door edge.
-
Page 2: Strike Installation
SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 B. Strike Installation: Align strike template on jamb. Be sure to keep 3/8" distance between lock centerline and strike centerline. - Page 3 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 C Install Lockcase (Continued) Instructions for changing lock hand: REX option Locksets are factory set per handing and can’t be changed in the field. 1.
- Page 4 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 C. Install Lockcase (Continued) 3. Connect wires as shown on the lock cover diagram. 4.
- Page 5 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 E. Install Lever trim (continued) 6. Screw inside lever into position and tighten lever collar with supplied spanner wrench. Spanner wrench Spanner wrench F.
- Page 6 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 E. Install for 07 lever trim Place the spring, collar and then reversible spring cage onto the outside lever assembly with arrows pointing in direction of lever rotation.
- Page 7 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 INSTALLATION WIRE DIAGRAM Model 7870/72 & 7880/82 Series STANDARD WIRING 12 or 24VDC (Locks are voltage specific) 12VDC@.6AMP;...
- Page 8 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 Z7870 (Failsafe) Lock Power (12VDC) Z7872 (Failsecure) Lock Power (12VDC) Access control always engages outside lever. *Install MOV Access control always engages outside lever.
- Page 9 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 INSTALLATION WIRE DIAGRAM Models with optional connectors STANDARD WIRING (NO OPTIONS) 4 PIN CONECTOR MOV* *Install MOV across each coil to protect ACS electronics.
