6 Permanent Field Installation

Mount the 130-SMHR-C Wedge Anchor

Assuming you have obtained or made up all the required cables, proceed to mount, level and
connect the GPS to the 130-SMHR-C.
The 130-SMHR-C must be firmly mounted to a surface and leveled using the single pivot bolt and
the three point leveling screws shown in the exploded 130-SMHR-C view.

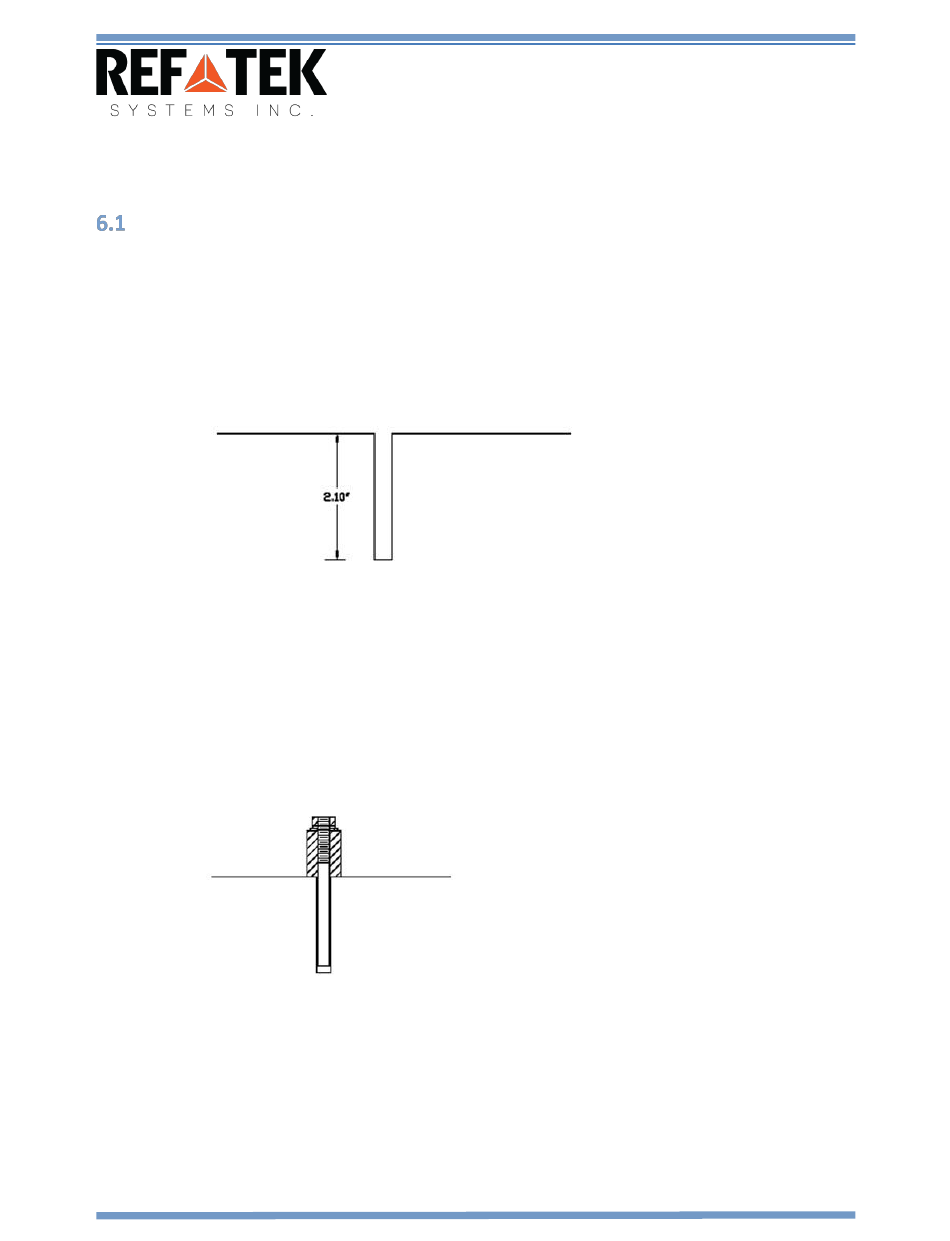

1. Use a 1/4"-masonry drill to drill a hole in the base material for the Wedge Anchor 2.1" deep as shown
below.
2. Remove lock-washer, washer, and nut from the supplied Wedge Anchor.
3. Place the Wedge Anchor through the supplied 1" setting spacer.
4. Place washer, lock-washer, and nut back on the Wedge Anchor and make the nut flush with the top
of the Wedge Anchor.
5. Insert the complete assembly in the drilled hole as shown below.
6. Strike the anchor flush to the top of the spacer using a hammer.
7. Torque the anchor nut to 96-in/lbs.
8. Tighten the leveling screws all the way into the base plate (Item 13).
