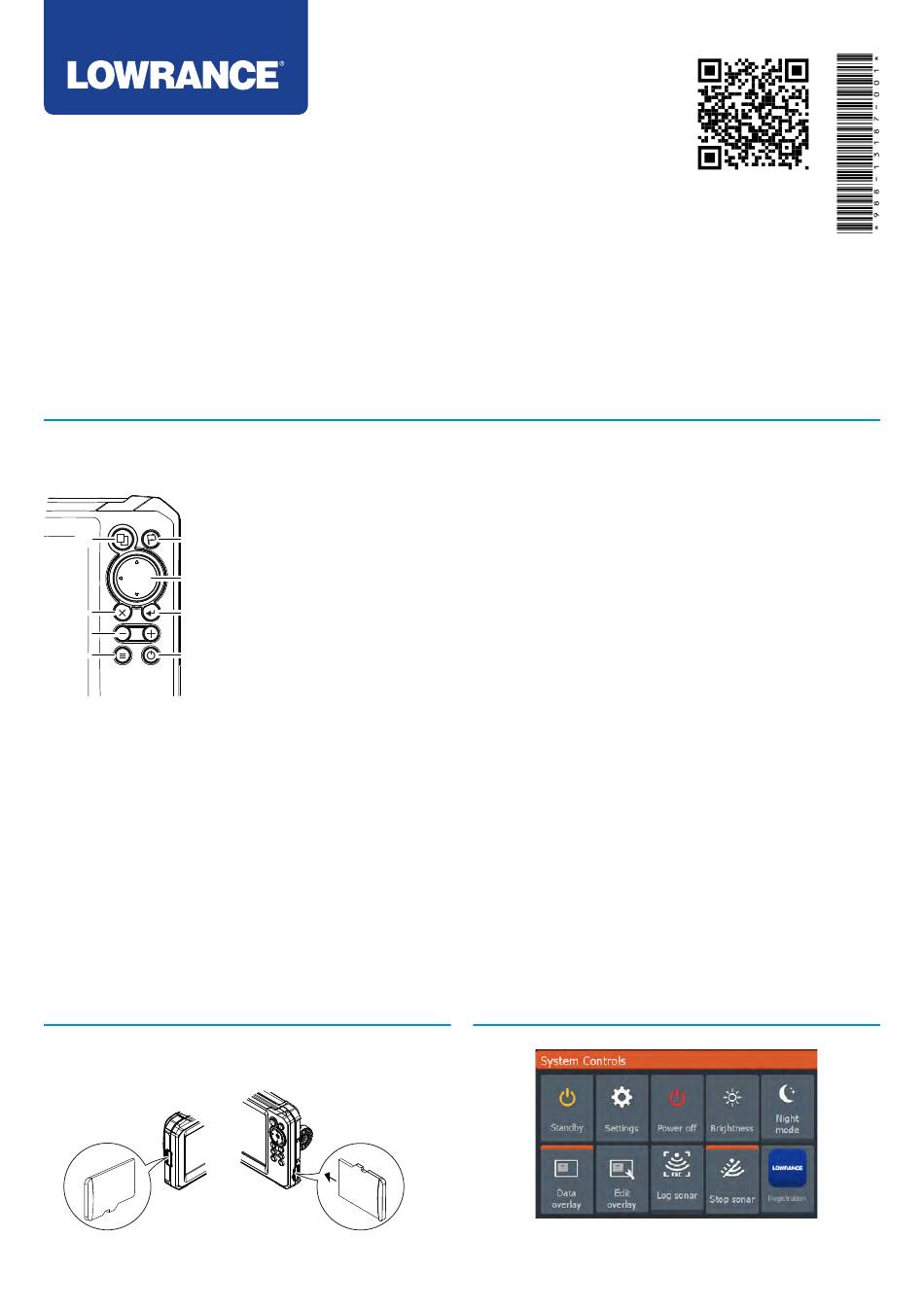

EAGLE
®
Quick start guide
Lowrance
Eagle

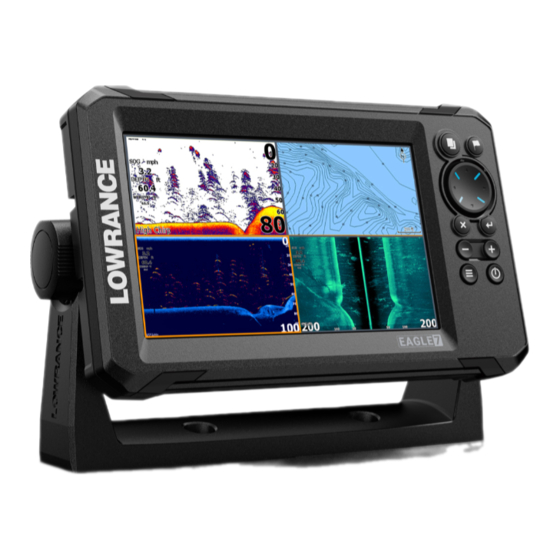

multi-function display (MFD) is available in multiple sizes. This document describes the basic controls of
®
®
the unit.
For the latest version of this document and the full operator manual, visit: www.lowrance.com/downloads/eagle.
Note: Refer to the enclosed Installation Manual before you turn on the unit.
¼
Physical control keys
A
B
C
D
E
F
G
H
Card reader
Carefully slide a microSD
®
side of the device. To remove the microSD
the card.
A Pages
Press to activate the home screen.
B Waypoint
Press to open the new waypoint dialog.
Press twice to save a waypoint.
Press and hold to access the find dialog.
C Arrows
On full screen pages:
Press to position the cursor.
Press to pan the image in any direction.
On multi-panel pages:
Press to select a panel.
On menus:
Press to navigate.
D Exit
On a maximized, mutli-panel page:
Press to return to the multi-panel page.
In menus and dialogs:
Press to return to the previous menu
level and to exit a dialog.
into the card reader slot on the
card, gently pull
®
E Enter
On multi-panel pages:
Press to maximize the current selected
panel.
In menus and dialogs:
Press to confirm a selection.
F Zoom
Press to zoom the image.
Press both keys together to create a
MOB (Crew Overboard) waypoint at
your position.
G Menu
Press to display the menu on full screen
pages.
H Power
Press once to display the System
Controls dialog.
Press and hold to power the unit on /off.
Repeat short presses to cycle the
backlight brightness.
System controls
Press the power key once to view the System Controls dialog.
Note: The content of the System Controls dialog depends
¼
on connected equipment and the active panel.
Scan here
to save a copy

Advertisement

loading
Need help?

Need help?

Do you have a question about the EAGLE and is the answer not in the manual?

Questions and answers

Summary of Contents for Lowrance EAGLE

  • Page 1 (MFD) is available in multiple sizes. This document describes the basic controls of ® ® the unit. For the latest version of this document and the full operator manual, visit: www.lowrance.com/downloads/eagle. Note: Refer to the enclosed Installation Manual before you turn on the unit. ¼ Physical control keys...
  • Page 2 Multi-panel pages Active options are orange in the System Controls dialog. • The active panel is indicated by an orange border. • Press the arrow keys to change active panels. • Press the enter key to maximize the active panel. Press the exit key to return to the multi-panel page.
  • Page 3 Chart Trails Your unit automatically tracks and draws the vessel’s Use the chart page to navigate to a waypoint, create a route, movement on the chart panel. Trails are managed from the or track your current course. Trails dialog. To display the Trails dialog: 1 Select Waypoints, Routes, Trails from the home screen.
  • Page 4 SideScan By default, your unit is set to Auto mode, and all settings are automated. Select Auto in the panel menu and change to SideScan provides a wide coverage in high detail of the Custom mode to customize the sonar settings. seabed to the sides of your vessel.
