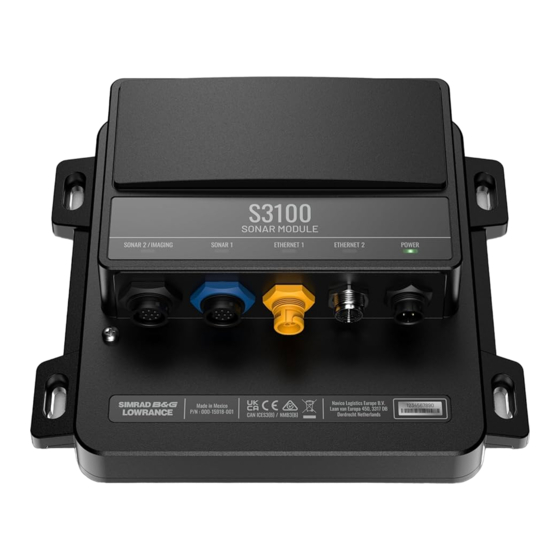

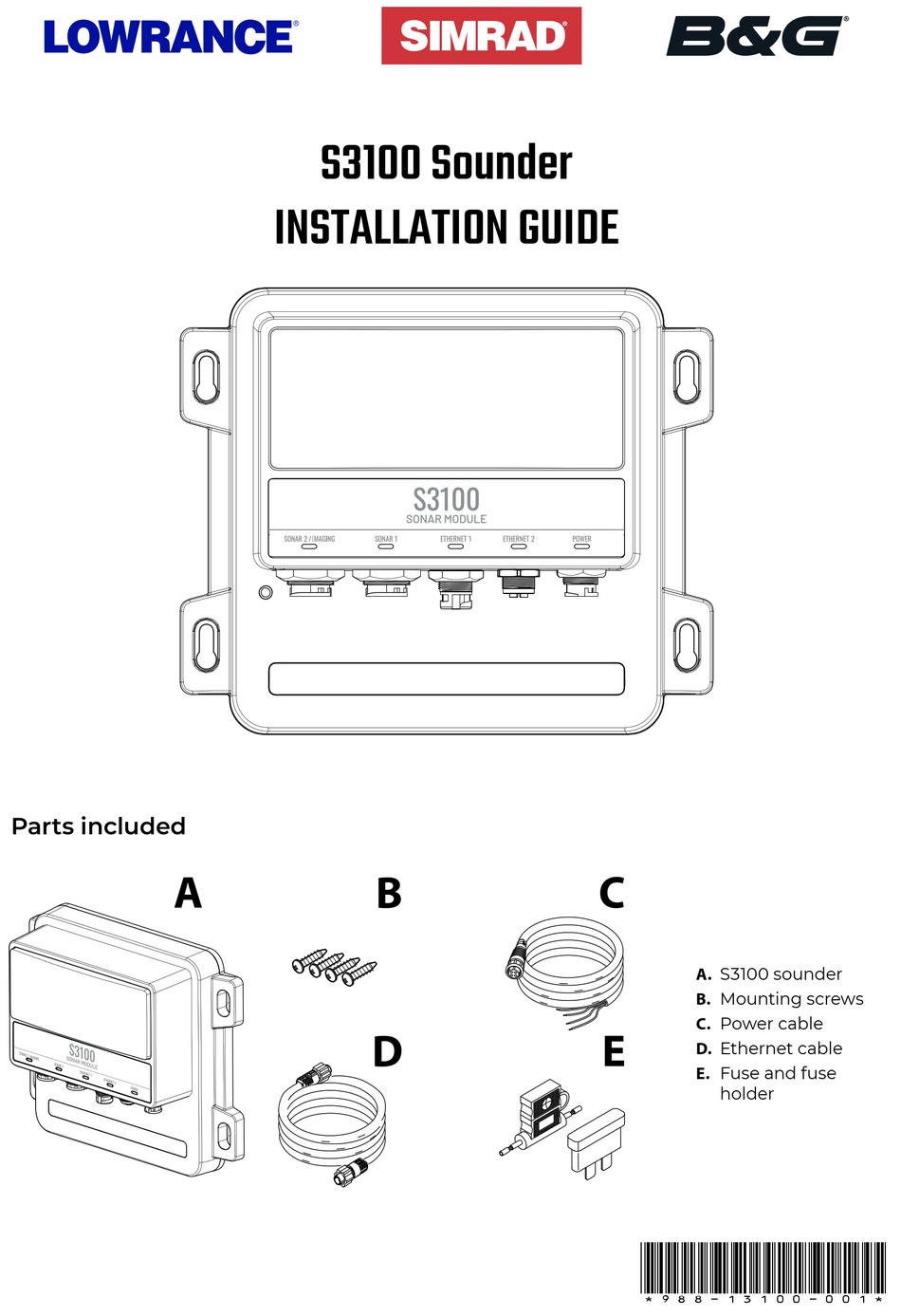

- Page 1 S3100 Sounder INSTALLATION GUIDE Parts included A. S3100 sounder B. Mounting screws C. Power cable D. Ethernet cable E. Fuse and fuse holder *988-13100-001*...
- Page 2 Power A. Ping synchronization (blue) B. Power control (yellow) C. 12/24 V DC (red) D. DC Negative (black) E. Fuse 5 A F. Switch G. Grounding terminal Transducer Ethernet...
- Page 3 Connectors and LEDs Connector LED Status A Sonar 2/ Sounder not operating Imaging Flashing - green Searching for bottom signal (black) System operating with bottom signal B Sonar 1 Sounder not operating (blue) Flashing - green Searching for bottom signal System operating with bottom signal C Ethernet 1 No connection...
- Page 4 Technical specifications Environmental Operating temperature -15° C to 55° C (5° F to 131° F) Storage temperature -20° C to 60° C (4° F to 140° F) Waterproof rating IPX6 and IPX7 Electrical Supply voltage 12 - 24 V DC (10.5 - 31.2 V DC) Recommended fuse rating Reverse polarity protection Power consumption (maximum)
