Mod. 1087 DS1087-002 TASTIERA ACCESSI WIRELESS WIRELESS ACCESS KEYPAD 1087/4 GUIDA INSTALLAZIONE E USO INSTALL AND USER GUIDE Le informazioni contenute in questo manuale possono essere soggette a modifiche senza preavviso. Per gli eventuali aggiornamenti e ulteriori approfondimenti sul sistema, utilizzare...
DESCRIZIONE La tastiera wireless 1087/4 utilizza una frequenza di 868 MHz. L'alimentazione è fornita da 2 batterie e non è necessario alcun cablaggio. Questa tastiera deve essere abbinata al prodotto Easy Door Receiver (versione minima firmware FV1050), che dispone di 2 relè...
Page 3
Quando l'utente inserisce il codice master, la tastiera entra in modalità di programmazione e vi rimane fino a quando l'utente non esce da questa modalità o non viene compiuta nessuna azione per 30 secondi. Buzzer Due brevi segnali acustici vengono generati quando la tastiera passa alla modalità di programmazione (ponticello o codice master). Quando si preme un pulsante, viene generato un breve segnale acustico.
Page 4
Combinazione tra tastiera e ricevitore Easy Door La tastiera Wireless 1087/4 è considerata un telecomando per il ricevitore. Per aggiungere la tastiera al ricevitore: Portare il dipswitch 1 del ricevitore su ON per entrare in modalità di programmazione. Il ricevitore emette un doppio segnale acustico.

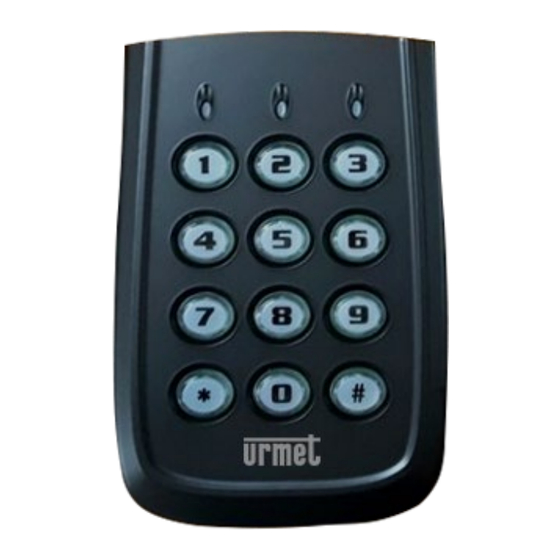

ENGLISH OVERVIEW The Wireless K-PAD is a keypad which works in 868MHz. The power is supplied by 2 batteries so no wiring is needed. This keypad has to be combined with our product Easy Door Receiver (minimum firmware version FV1050) which has 2 relays (1088/2-12) or a IPassan RF receiver (1088/50).
MEMORY ORGANISATION Slot Description Master code (3 to 8 terms) Delete all the access codes Activate / Deactivate the buzzer Activate / Deactivate the back light Activate / Deactivate the tamper 101 to 200 Access codes (3 to 8 terms) PROGRAMMING SEQUENCES Changing the master code There is only one master code per keypad.
SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, URMET S.p.A. declares that the radio equipment type: WIRELESS ACCESS KEYPAD ref. 1087/4 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.urmet.com.
Page 8
DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). The symbol of the crossed-out wheeled bin on the product or on its packaging indicates that this product must not be disposed of with your other household waste.
