X670E Taichi
Step 3
2

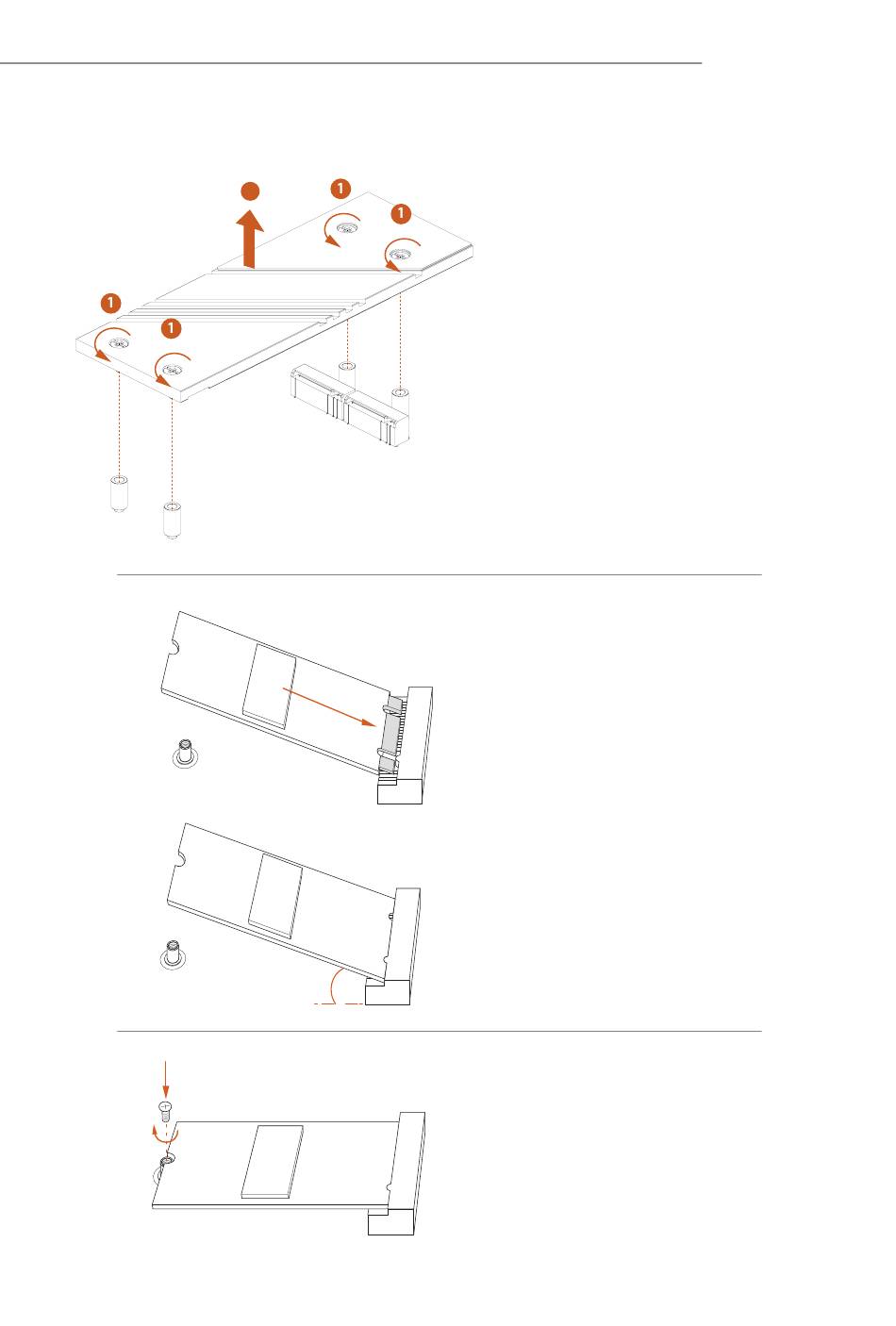

Before installing a M.2 SSD module,
please loosen the screws to remove
the M.2 heatsink.
*Please remove the protective films
on the bottom side of the M.2
heatsink before you install a M.2
SSD module.
Step 4
Align and gently insert the M.2 SSD
module into the M.2 slot. Please be
aware that the M.2 SSD module only
fits in one orientation.
A
A
20
o
Step 5
Tighten the screw that comes with
the package with a screwdriver to
secure the module into place.
NUT2
NUT1
75
