NUT2
NUT1
Dimension: 144.58*36.7*46.9 mm
Fan Speed: 7000 rpm
1
2

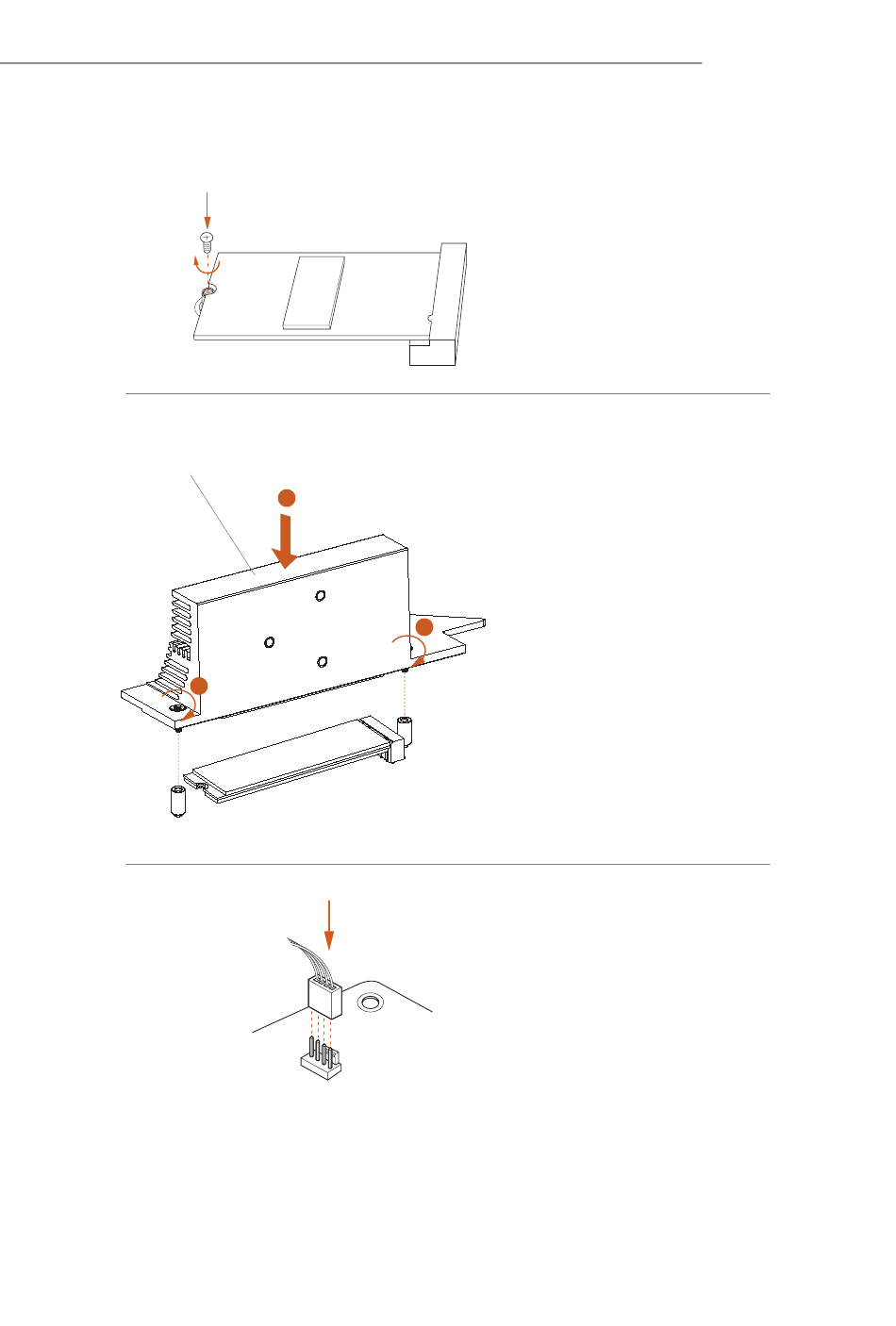

Step 4
Tighten the screw that comes with
the package with a screwdriver to
secure the module into place.
Step 5
Remove the protective films on the
bottom side of Blazing M.2 Gen5
Fan Heatsink.
Tighten the screw with a screwdriver
to secure Blazing M.2 Gen5 Fan
Heatsink into place in the order
3
shown. Tighten screw opposite the
M.2 connector first (2), and then
tighten the one next to the M.2
connector (3).
*Please do not overtighten the screw
as this might damage the module
and M.2 heatsink.
Step 6
Plug the fan cable to a free fan
connector on the motherboard.
X670E Taichi
67
