2.17 M.2 SSD Module Installation Guide (M2_3)
The M.2 is a small size and versatile card edge connector that aims to replace mPCIe and
mSATA. The Hyper M.2 Socket (M2_3, Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s)
mode.
Installing the M.2 SSD Module
No.
Nut Location
PCB Length
Module Type
1
A
8cm
Type2280

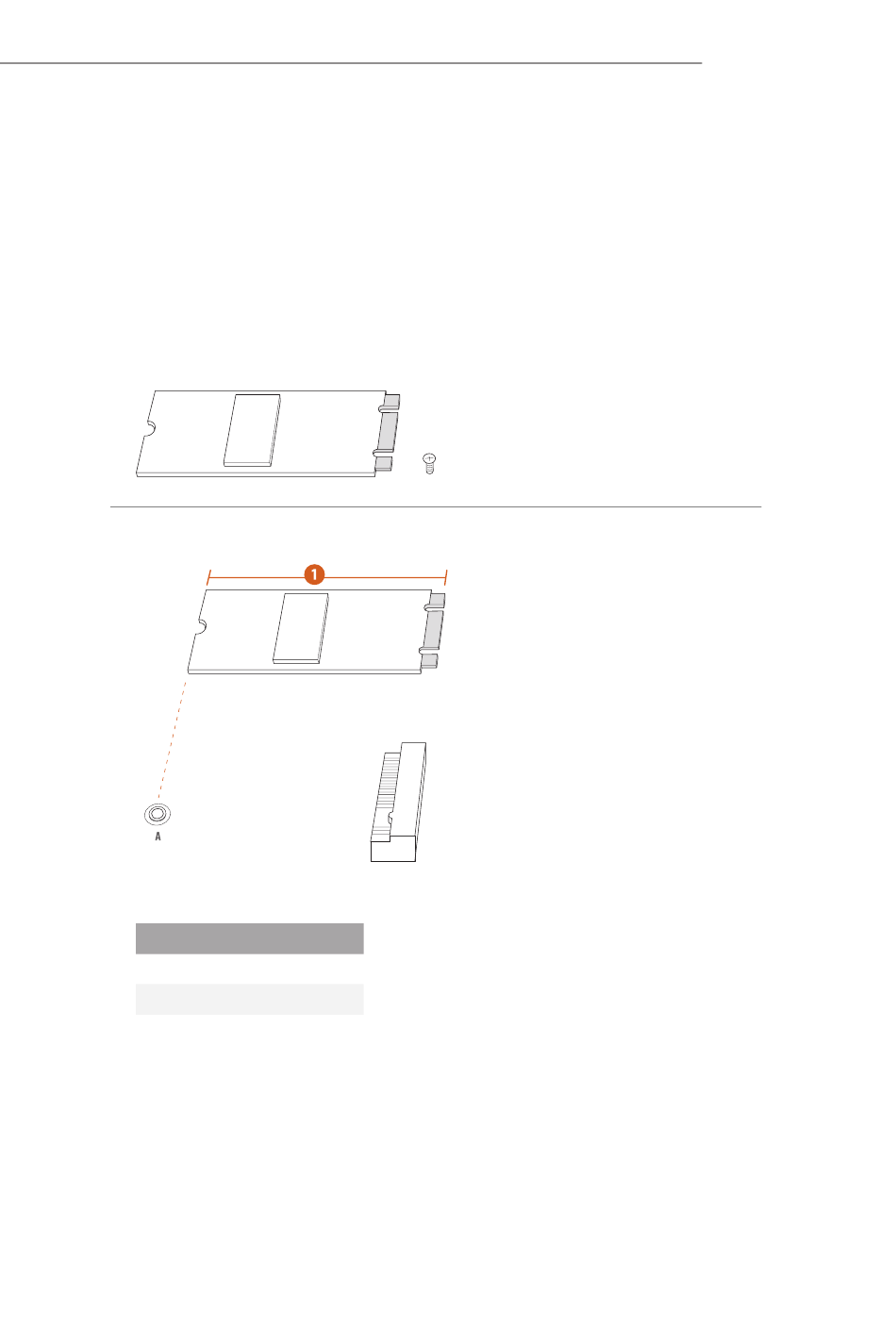

Step 1
Prepare a M.2 SSD module and the
screw.
Step 2
Depending on the PCB type and
length of your M.2 SSD module, find
the corresponding nut location to be
used.
X670E Taichi
71
