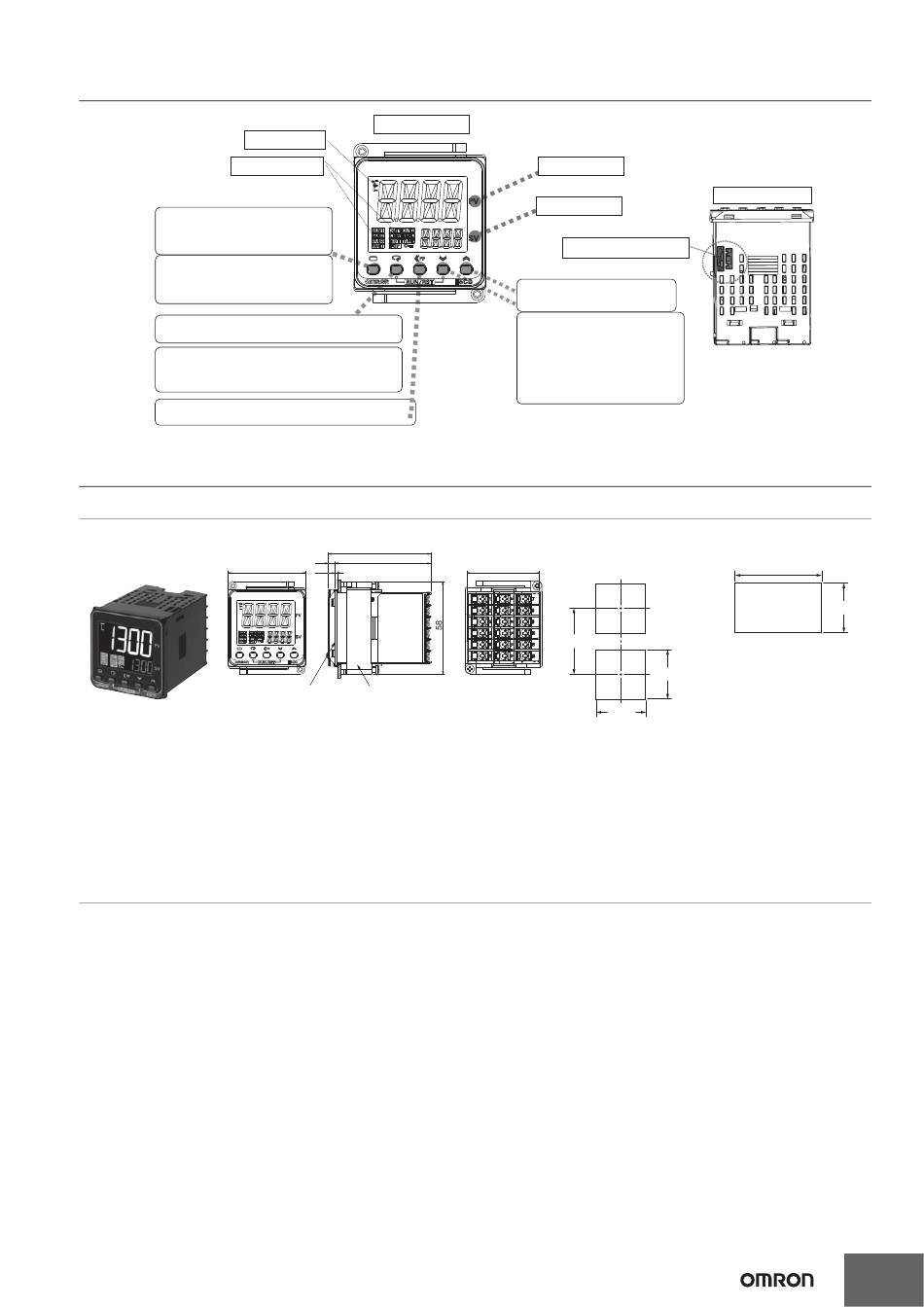

Nomenclature
E5CC-T
Temperature unit
Operation indicators
Press O Key once to go to
Program Setting Level.
Press O Key for at least 3
seconds to go to Initial Setting
Level.
Use the M Key to change to another parameter.
Press M and D Keys simultaneously for at
least 1 second to switch between run and reset
status.
Use S Key to change the digit (default setting).
Dimensions
Controllers
E5CC-T
The Setup Tool port is on the top of the Temperature Controller.
It is used to connect the Temperature Controller to the computer
to use the Setup Tool.
The E58-CIFQ2 USB-Serial Conversion Cable is required to
make the connection.
Refer to the instructions that are provided with the USB-Serial
Conversion Cable for the connection procedure.
Note: Do not leave the USB-Serial Conversion Cable
Front panel
(64)
4 60
48 × 48
1
Waterproof Packing
Mounting Adapter
(Accessory, Y92S-P8 (Accessory, Y92F-49
(also available for (also available for
ordering separately)) ordering separately))
connected when you use the Temperature Controller.
No. 1 display
PV or specified monitor/setting parameter
No. 2 display
SP or specified monitor/parameter value
Top-panel Setup Tool port
UD
Use the Keys to set the
parameter.
U
Press Key for at least 1 second
when Process value/Set point
parameter are displayed in Program
SP Mode to go to Display Segment
Selection parameter in Program
Setting Level.
Mounted Separately
48 × 48
60 min.
+0.6
45
+0.6
45
0
• Recommended panel thickness is 1 to 5 mm.
• Group mounting is not possible in the vertical direction. (Maintain
the specified mounting space between Controllers.)
• To mount the Controller so that it is waterproof, insert the water-
proof packing onto the Controller.
• When two or more Controllers are mounted, make sure that the
surrounding temperature does not exceed the allowable operating
temperature specified in the specifications.
• Use a control panel thickness of 1 to 3 mm if the Y92A-48N and a
USB-Serial Conversion Cable are used together.
E5CC-T
Top View of E5CC-T
(Unit: mm)
Panel Cutout
Group Mounted
(48 × number of units - 2.5)
+0.6
45
Group mounting does not
allow waterproofing.
0
+1.0
0
0
