E5@C/E5@C-T

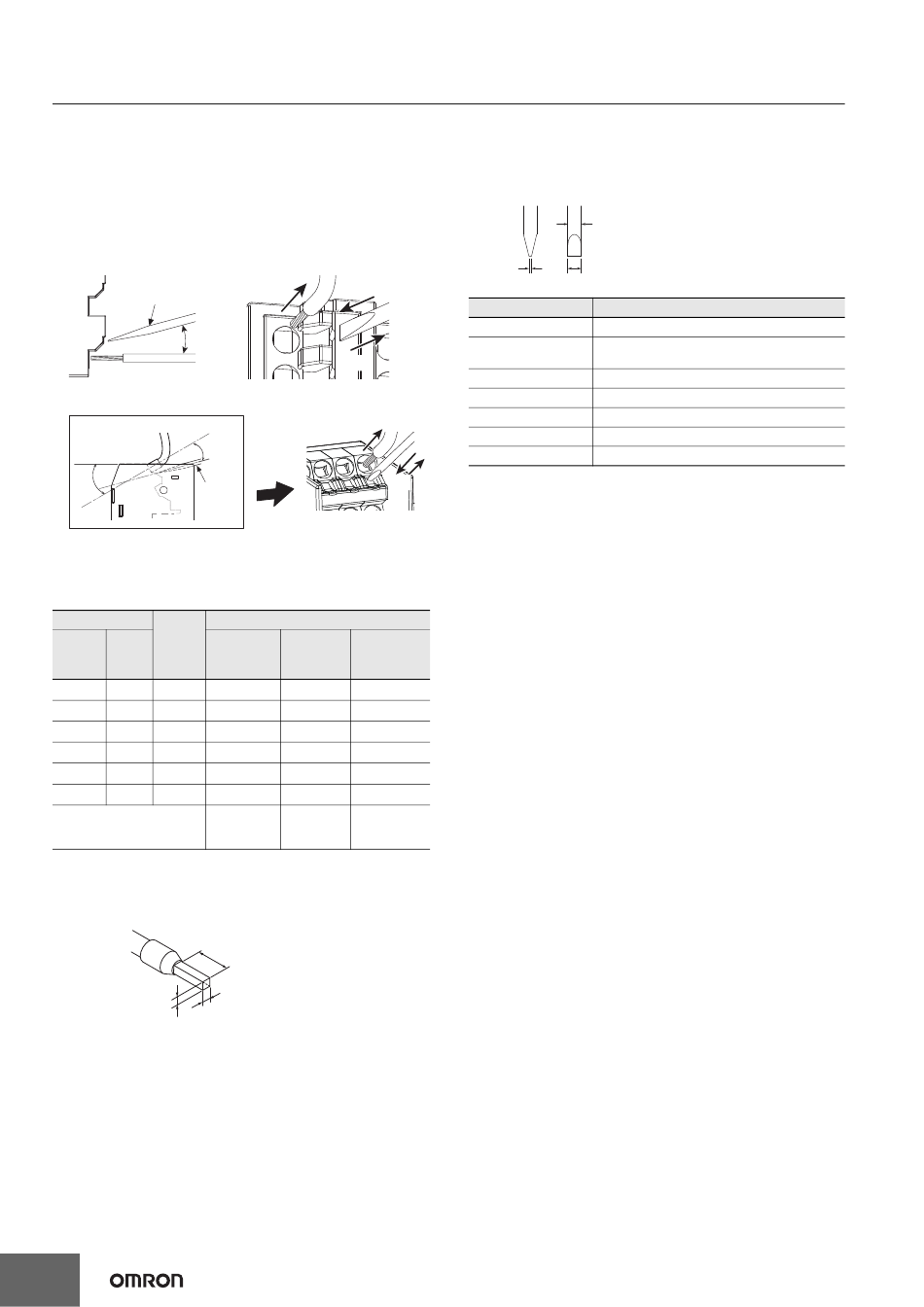

2. Removing Wires from the Push-In Plus Terminal Block

Use the following procedure to remove wires from the terminal block.
The same method is used to remove stranded wires, solid wires, and
ferrules.
1. Hold a flat-blade screwdriver at an angle and insert it into the
release hole.
2. With the flat-blade screwdriver still inserted into the release hole,
remove the wire from the terminal insertion hole.
3. Remove the flat-blade screwdriver from the release hole.
E5CC-B/EC-B
Flat-blade screwdriver
10 to 15°
E5DC-B
∗
Side view of the product
30°
3. Recommended Ferrules and Crimp Tools
Recommended ferrules
Applicable wire Ferrule
Con-
ductor
2
mm AWG
length
(mm)
0.25 24
0.34 22
0.5 20
0.75 18
1 18
1.5 16
Recommended crimp tool
Note: 1. Make sure that the outer diameter of the wire coating is
smaller than the inner diameter of the insulation sleeve of
the recommended ferrule.
2. Make sure that the ferrule processing dimensions conform
to the following figures.
2.1 mm max.
134
(2) (1)
(3)
(2)
10 to 15°
Flat-blade
screwdriver
∗
Side view
of the product
Recommended ferrules
Manufactured Manufactured
Manufactured
by Phoenix by
by Wago
Contact Weidmuller
8 AI0.25-8 H0.25/12 216-301
8 AI0.34-8 H0.34/12 216-302
8 AI0.5-8 H0.5/14 216-201
8 AI0.75-8 H0.75/14 216-202
8 AI1-8 H1.0/14 216-203
8 AI1.5-8 H1.5/14 216-204
CRIMPFOX6
CRIMPFOX6T-F PZ6 roto Variocrimp4
CRIMPFOX10S
8 mm
2.7 mm max.
Recommended Flat-blade Screwdriver
Use a flat-blade screwdriver to connect and remove wires.
Use the following flat-blade screwdriver.
The following table shows manufacturers and models as of 2015/Dec.
Side Front
0.4 mm 2.5 mm
Model
ESD 0,40×2,5
SZS 0,4×2,5
*
SZF 0-0,4×2,5
0.4×2.5×75 302
AEF.2,5×75
210-719
SDIS 0.4×2.5×75
(1)
9900 (-2.5×75)
* OMRON's exclusive purchase model XW4Z-00B is available to
(3)
order as SZF 0-0,4×2,5 (manufactured by Phoenix Contact).
2.5 mm dia.
Manufacturer
Wera
Phoenix Contact
Wiha
Facom
Wago
Weidmuller
Vessel
