  • Page 1 At the end of this document you will find links to products related to this catalog. You can go directly to our shop by clicking HERE. HERE...

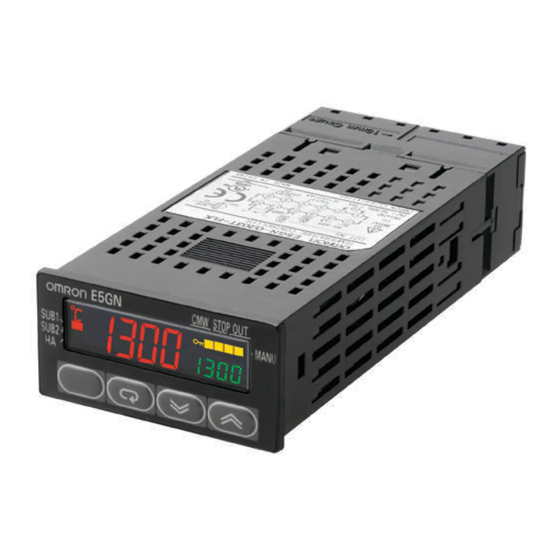

  • Page 2 • Conforms to UL, CSA, and IEC safety standards as well as CE marking. Refer to the “Safety Precautions” on page 16. Model Number Structure Model Number Legend E5GN- @ @ @ @ - @ 1. Output type 4. Input type Relay Thermocouple...

  • Page 3: Specifications

    Power supply Communication Control output Thermocouple model Platinum resistance voltage function thermometer model 1/32 DIN 100 to 240 VAC RS-485 Relay E5GN-R03TC-FLK E5GN-R03P-FLK 48(W) × 24(H) × 100(D) mm Voltage (for driving E5GN-Q03TC-FLK E5GN-Q03P-FLK SSR) 24 VAC/VDC Relay E5GN-R03TC-FLK E5GN-R03P-FLK...
  • Page 4 Applicable standards by input type are as follows: K, J, T, E, N, R, S, B: JIS C1602-1995 L: Fe-CuNi, DIN 43710-1985 U: Cu-CuNi, DIN 43710-1985 JPt100: JIS C1604-1989, JIS C1606-1989 Pt100: JIS C1604-1997, IEC751 Shaded ranges indicate default settings. E5GN Digital Temperature Controllers...
  • Page 5 (For alarm types 1 to 7) The alarm value is set as The alarm value is set as a an absolute value from the deviation from the set point. alarm value of 0°C/F. Alarm value Alarm value Set point 0°C/°F 100°C/°F E5GN Digital Temperature Controllers...
  • Page 6 L thermocouples at any temperature is ± 2 ° C ± 1 digit maximum. The indication of B thermocouples at a temperature of 400 ° C or less is un- restricted. The indication of R and S thermocouples at a temperature of 200 ° C or less is ± 3 ° C ± 1 digit maximum. E5GN Digital Temperature Controllers...

  • Page 7: Wiring Terminals

    12 VDC Voltage output 21 mA (−) − − Thermocouple Infrared temperature sensor Input power supply Temperature-resistance Host thermometer Two input power supplies are available: − 100 to 240 VAC or 24 VAC/VDC (no polarity). Analog input E5GN Digital Temperature Controllers...
  • Page 8 Controller, panel, and adapter. Finally, use the two screws on +0.3 the adapter to secure the unit in place. • To mount the E5GN so that it is waterproof, insert the waterproof packing onto the E5GN. • When two or more E5GN Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature given in the specifications.
  • Page 9 No.2 display. Holding down this key continuously ←→ "communications setting level." decreases values. Mode Key Level + Mode Key Press this key to select parameters This key combination sets the E5GN to the within each level. "protect level." E5GN Digital Temperature Controllers...

  • Page 10: Operation

    2. For the calibration mode, refer to the relevant User's Password input Manual. set value "1201" 3. On the E5GN, the Key is the Key. Control in progress Control stopped Calibration level...
  • Page 11 Alarm 1 type alt1 Move to advanced amo? function setting level Displayed when initial setting/ communications protection is set to 0 To return to the operation level, press the key for longer than one second. E5GN Digital Temperature Controllers...
  • Page 12 "−169" 1 second level can be adjusted by changing the "Move min. Advanced function to protect level time" setting level setting. Password input set value "1201" Control in progress Calibration level Control stopped Level change E5GN Digital Temperature Controllers...
  • Page 13 Input error output Communications sero u-no Unit No. CompoWay/F (SYSWAY) only Cold junction compensation method Baud rate MB command logic switching Data bits rlr? Move to calibration level Stop bits cmo? sbit Communications prty parity e?en E5GN Digital Temperature Controllers...
  • Page 14 Protects changes to setups by operating the front panel keys. Note: These diagrams show all the parameters that may be displayed. Depending on the specifications of the model used, there may be some parameters that are not displayed. E5GN Digital Temperature Controllers...
  • Page 15 Initial setting level Communication Advanced value s setting level function setting level Default setting: 1 : Move to other levels possible X: Move to other levels not possible E5GN Digital Temperature Controllers...
  • Page 16 Communications Setting Level Set the E5GN communications specifications in the communications setting level. For setting communications parameters, use the E5GN panel. The communications parameters and their settings are listed in the following table. Parameter Displayed characters Set (monitor) value Set value u-no Communications unit No.

  • Page 17: Safety Precautions

    To maintain safety in the event of malfunction of the product, take appropriate safety measures, such as installing a monitoring device on a separate line. E5GN Digital Temperature Controllers...
  • Page 18 ON power for the load. (Instead of turning 14. Do not use paint thinner or similar chemical to clean with. Use the Temperature Controller OFF and ON again, switching from standard grade alcohol. STOP mode to RUN mode can also be used.) E5GN Digital Temperature Controllers...
  • Page 19 Pin terminals Mounting 1 to 6 AWG24 to AWG14 2.1 dia. max. 1. Insert the E5GN into the mounting hole in the panel from the 7 to 9 AWG28 to AWG22 1.3 dia. max. front. 2. Push the adapter along the E5GN body from the terminals up to •...
  • Page 20 E5GN Digital Temperature Controllers...

  • Page 21: Warranty And Application Considerations

    CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted. IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE...
  • Page 22 Below is a list of articles with direct links to our shop Electric Automation Network where you can see: • Quote per purchase volume in real time. • Online documentation and datasheets of all products. • Estimated delivery time enquiry in real time. •...
