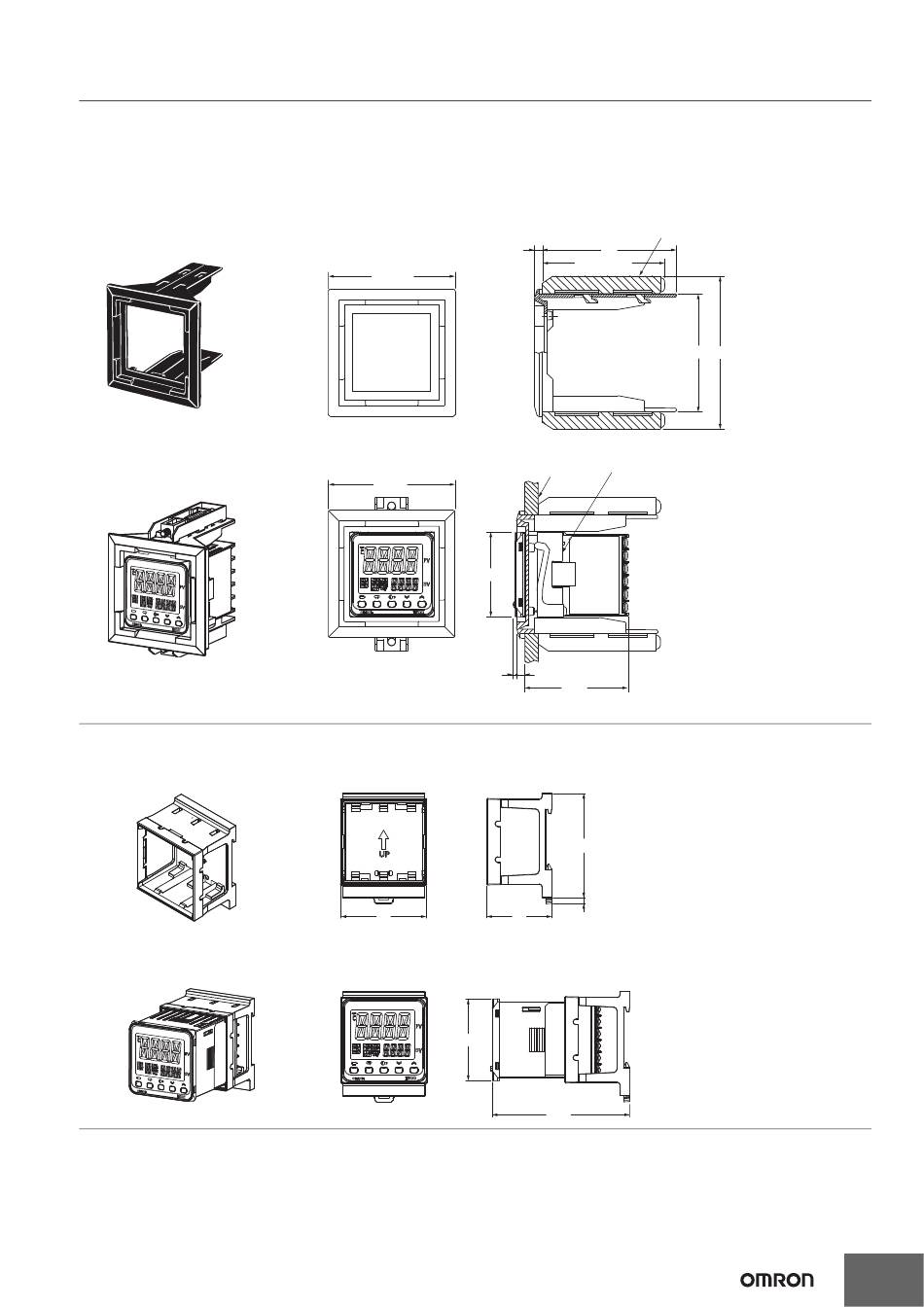

Adapter
Y92F-45
Note: 1. Use this Adapter when the Front Panel has already been prepared for the E5B@.
2. Only black is available.
3. You cannot use the E58-CIFQ2 USB-Serial Conversion Cable if you use the Y92F-45 Adapter. To use the USB-Serial
Conversion Cable to make the settings, do so before you mount the Temperature Controller in the panel.
4. You cannot use it together with the Y92F-49 Adapter that is enclosed with the Controller.
Mounted to E5CC
DIN Track Mounting Adapter
Y92F-52
Note: This Adapter cannot be used together with the Terminal Cover.
Remove the Terminal Cover to use the Adapter.
Mounted to E5CC
4.7
72 × 72
Panel (1 to 8 mm)
72 × 72
48 × 48
2.2 4.7
To back of the E5CC
50 38
48
E5CC/E5CC-B/E5CC-U
Fixture (Accessory)
76
69.6 to 77.6
67 × 67 87
Mounting Adapter
Y92F-30
(Accessory)
62.8
This Adapter is used to mount the
E5CC to a DIN Track.
61
If you use the Adapter, there is no
need for a plate to mount in the
panel or to drill mounting holes in
the panel.
3.5
80.5
