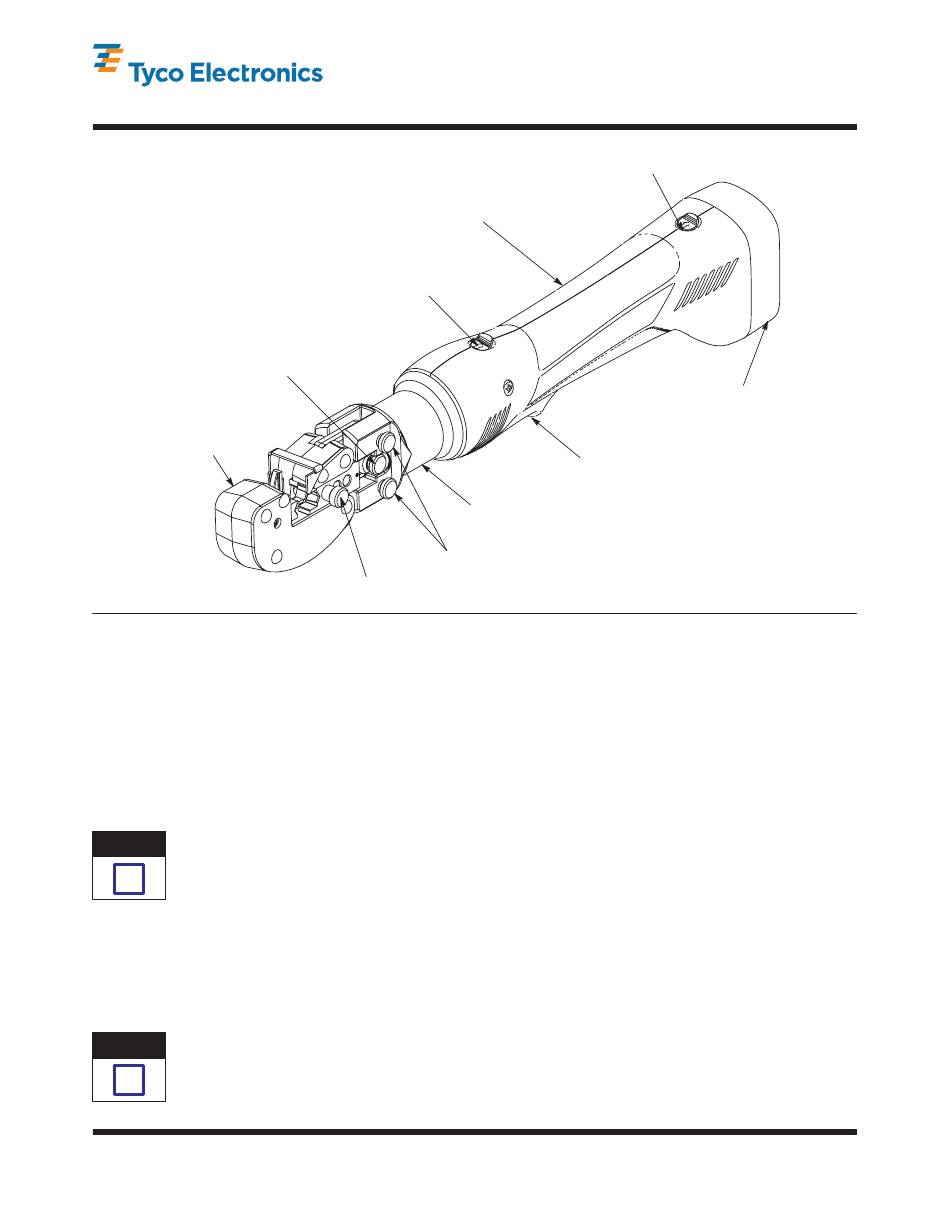

Tyco Electronics PIDG STRATO-THERM 1-576778-0 Instruction Sheet

Quick-Release Pin 217873-4
(Recommended Spare)
Typical Crimping
Head (Ref)
1. INTRODUCTION
Crimping Heads 1–576778–0, 1–576779–0,
1–576780–0, 1–576781–0, and 1–576782–0 are
designed to crimp PIDG STRATO–THERM Terminals
onto solid or stranded copper wire size 24–14 AWG.
Refer to Figure 2. The crimping heads are used with
Heavy Head Battery Powered Hand Tool Kits
1901235–[ ].
NOTE The crimping heads can also be used with the
626 Heavy Head Pneumatic Tool Adapter
i
525432-1.
This instruction sheet provides recommended
procedures for wire preparation, crimping head
installation, crimping, and maintenance and
inspection. For information concerning tool setup and
operation, refer to Customer Manual 409–10068
packaged with the battery tool kit.
Dimensions on this instruction sheet are in
NOTE
millimeters [with inches in brackets]. Figures and
i
illustrations are for identification only and are not
drawn to scale.
E
2007 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PIDG* STRATO-THERM* Terminal
Crimping Heads Used with Heavy Head
Battery Powered Hand Tool Kits 1901235-[ ]
Battery Powered
Crimp Tool
Release Switch
(1901235-1 and -2 Only)
Heavy Head Hand Tool (HHHT) Adapter
Quick-Release Pins 217873-1
(Recommended Spare)
Insulation Crimp Adjusting Pin
Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Battery Lock
Trigger
Reasons for reissue are provided in Section 8,
REVISION SUMMARY.
2. DESCRIPTION
Each crimping head features a head containing two
stationary crimping dies (anvils) and two movable
crimping dies (indenters), a locator, an insulation
crimping adjustment pin, and a battery powered crimp
tool. See Figure 1.
When closed, the crimping dies form one crimping
chamber with two sections: an insulation barrel
section and a wire barrel section. The insulation barrel
section crimps the terminal onto the wire insulation
and, simultaneously, the wire barrel section crimps
the terminal wire barrel onto the stripped wire. The
locator positions the terminal in the crimping chamber.
The insulation crimping adjustment pin is used to
regulate the height of the insulation crimp.
Using Heavy Head Battery Powered Hand Tool Kits
1901235–3 or –4 will ensure full crimping of the
terminal. The rams on tools 1901235–1 and –2 can
be retracted before the terminal is fully crimped.
