Crimp Head
Mounting Holes
Typical DAHT
Crimp Head (Ref)
1. INTRODUCTION
Crimping Heads 1--46673--0, 1--46673--1, and
1--46988--0 are designed to crimp STRATO--THERM
Terminals and Splices onto wire size 26--14 AWG.
Refer to Figure 2. The crimping heads are used with
Double Action Battery Powered Hand Tool Kits
1213804--[ ].
NOTE
The crimping heads can also be used with the
626 Double Action Pneumatic Tool Adapter
i
1213563- - 1.
This instruction sheet provides recommended
procedures for wire preparation, crimping head
installation, crimping, and maintenance and
inspection. For information concerning tool setup and
E2010 Tyco Electronics Corporation, Berwyn, PA
All Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other product names, logos, or company names might be trademarks of their respective owners.
STRATO- THERM* Crimping Heads
Used with Double Action Battery
Powered Hand Tool Kits 1213804- [ ]
Retract Button
DAHT Adapter
Assembly
Quick- - Release
Pins

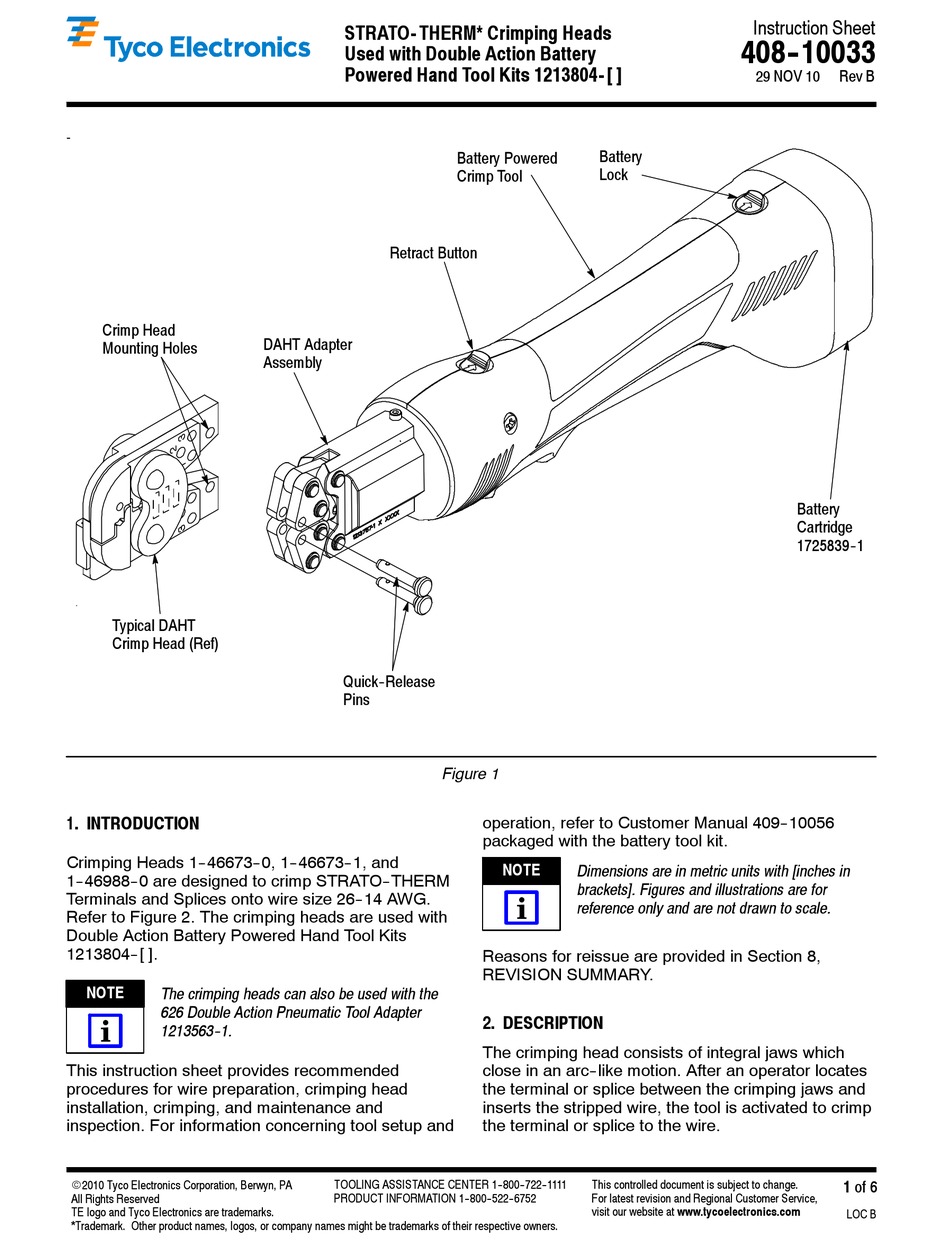

Figure 1
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Battery
Battery Powered
Lock
Crimp Tool
operation, refer to Customer Manual 409--10056
packaged with the battery tool kit.
NOTE
Dimensions are in metric units with [inches in
brackets]. Figures and illustrations are for
i
reference only and are not drawn to scale.
Reasons for reissue are provided in Section 8,
2. DESCRIPTION
The crimping head consists of integral jaws which
close in an arc--like motion. After an operator locates
the terminal or splice between the crimping jaws and
inserts the stripped wire, the tool is activated to crimp
the terminal or splice to the wire.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408- - 10033
29 NOV 10
Rev B
Battery
Cartridge
1725839- - 1
1 of 6
LOC B
Advertisement
Table of Contents
Related Manuals for Tyco Electronics STRATO-THERM 1-46673-0
Summary of Contents for Tyco Electronics STRATO-THERM 1-46673-0
- Page 1 PRODUCT INFORMATION 1- - 800- - 522- - 6752 For latest revision and Regional Customer Service, visit our website at www.tycoelectronics.com TE logo and Tyco Electronics are trademarks. LOC B *Trademark. Other product names, logos, or company names might be trademarks of their respective owners.
- Page 2 NOTE Crimping heads are coated with a preservative to Never place anything within the crimping jaws prevent rust and corrosion. Wipe this preservative except Tyco Electronics terminals or splices. from the head, particularly from the crimping surfaces. 4.1. Crimping Procedure 3.2.
- Page 3 3—Loose. 6. Repeat adjustment as necessary until desired 1. Insert insulation adjustment pins in Position 3. insulation grip is obtained. DO NOT use a tighter See Figure 6. setting than required. Rev B 3 of 6 Tyco Electronics Corporation...
- Page 4 “ACCEPT” column. “REJECT” terminations can be avoided through careful use of instructions in 6.1. Daily Maintenance Section 4, and by performing regular head Tyco Electronics recommends that each operator be maintenance, as described in Section 6. responsible for the following steps of daily maintenance: KKKDamaged product should not be used.
- Page 5 (Radius) good SAE 20 motor oil. If the crimping chamber does not conform to the plug gage conditions, contact your 1--46673--0 1.499--1.506 1.648--1.651 local Tyco Electronics Field Representative or refer to 1--46673--1 [.0590--.0593] [.0649--.0650] 1.57 1.57 Section 7, REPLACEMENT AND REPAIR.
- Page 6 P.O. BOX 3608 HARRISBURG, PA 17105--3608 8. REVISION SUMMARY For further repair and replacement information, call the Tyco Electronics Tooling Assistance Center at Updated document to corporate requirements the number at the bottom of page 1. 6 of 6 Rev B...
