Tyco Electronics 1213850-1 Instruction Sheet

626 pneumatic crimping heads
Hide thumbs

Advertisement

Table of Contents

Tool Holder Assembly
189766-1 or 356303-1
1. INTRODUCTION
Pneumatic Crimping Heads 1213850-1 and -2 are
designed to crimp STRATO-THERM non-insulated
terminals and splices with insulation support on wire
sizes 22 to 14 AWG. The crimping heads are used with
626 Pneumatic Tool Holder Assemblies. Figure 1
shows the tool holder assemblies, and lists the
pneumatic tooling assemblies for the crimping heads.
This instruction sheet provides recommended
procedures for insulation crimp adjustments, wire
preparation, crimp head installation, crimping, and
maintenance and inspection. For information
concerning tool setup and operation, refer to customer
manual 409-5862. Product specifications and part
numbers are available in Tyco Electronics Catalogs.
See Figure 1.
Read these instructions thoroughly before proceeding.
Measurements are in metric units [followed by U.S.
NOTE
customary units in brackets]. Figures are for
i
reference only and are not drawn to scale.
2. DESCRIPTION
(Figure 1)
The pneumatic crimping heads consist of integral jaws
which close in an arc-like motion. After an operator
©2011 Tyco Electronics Corporation, Berwyn, PA
All Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names might be trademarks of their respective owners.

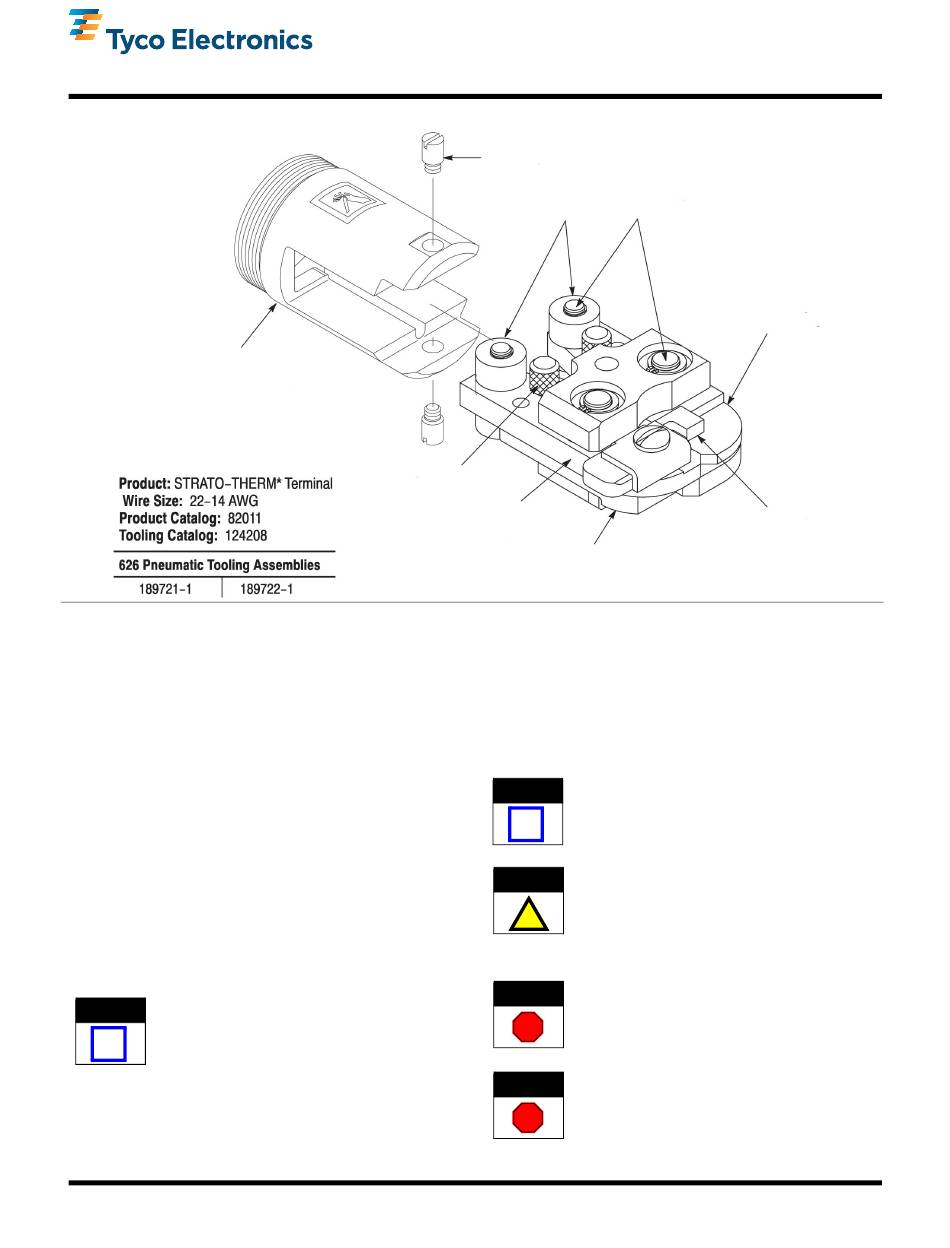

626 Pneumatic Crimping Heads
1213850-[ ] (Used with 626
Pneumatic Tool Holder Assemblies)
Quick-Pin(s)
354425-1 (Ref)
Insulation
Adjustment Pin
Crimping Head
1213850-[ ]
Figure 1
locates the terminal or splice between the crimping
jaws and inserts the stripped wire, the tool is activated
to crimp the product to the wire.
3. HEAD INSTALLATION AND REMOVAL
3.1. Installation
NOTE
CAUTION
DANGER
DANGER
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Assembly
Rollers
Pins
Anvil Crimping Jaw
Crimping heads are coated with a preservative to
prevent rust and corrosion. Wipe any excess
i
preservative from the head, particularly from
crimping surfaces.
Certain precautions should be taken by the
operator to avoid personal injury or damage to the
pneumatic tool. Refer to the instructions packaged
!
with the pneumatic tool for operation procedures
and safety precautions.
To avoid personal injury, ALWAYS disconnect tool
from air supply before installing crimping head.
STOP
Do NOT operate pneumatic tool without proper
crimping head installed; make sure that the quick
pins are FULLY tightened to avoid personal injury
STOP
and damage to the tool.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-10004
19 JAN 11 Rev B
Indenter
Crimping
Jaw
Locator
1 of 9
LOC B
