Symmons DS Creations SLW-7302-TCR-1.5 Installation Manual

SLW-7302-TCR-1.5 (S-280-2-TCR)
Two Handle Widespread Lavatory Faucet
Installation Guide
Model Numbers

SLW-7302-TCR-1.5
Two Handle Widespread Lavatory Faucet
Modifications
-1.0
1.0 gpm (3.8 L/min) flow restrictor
 CG
Note: Append appropriate -suffix to model number.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.

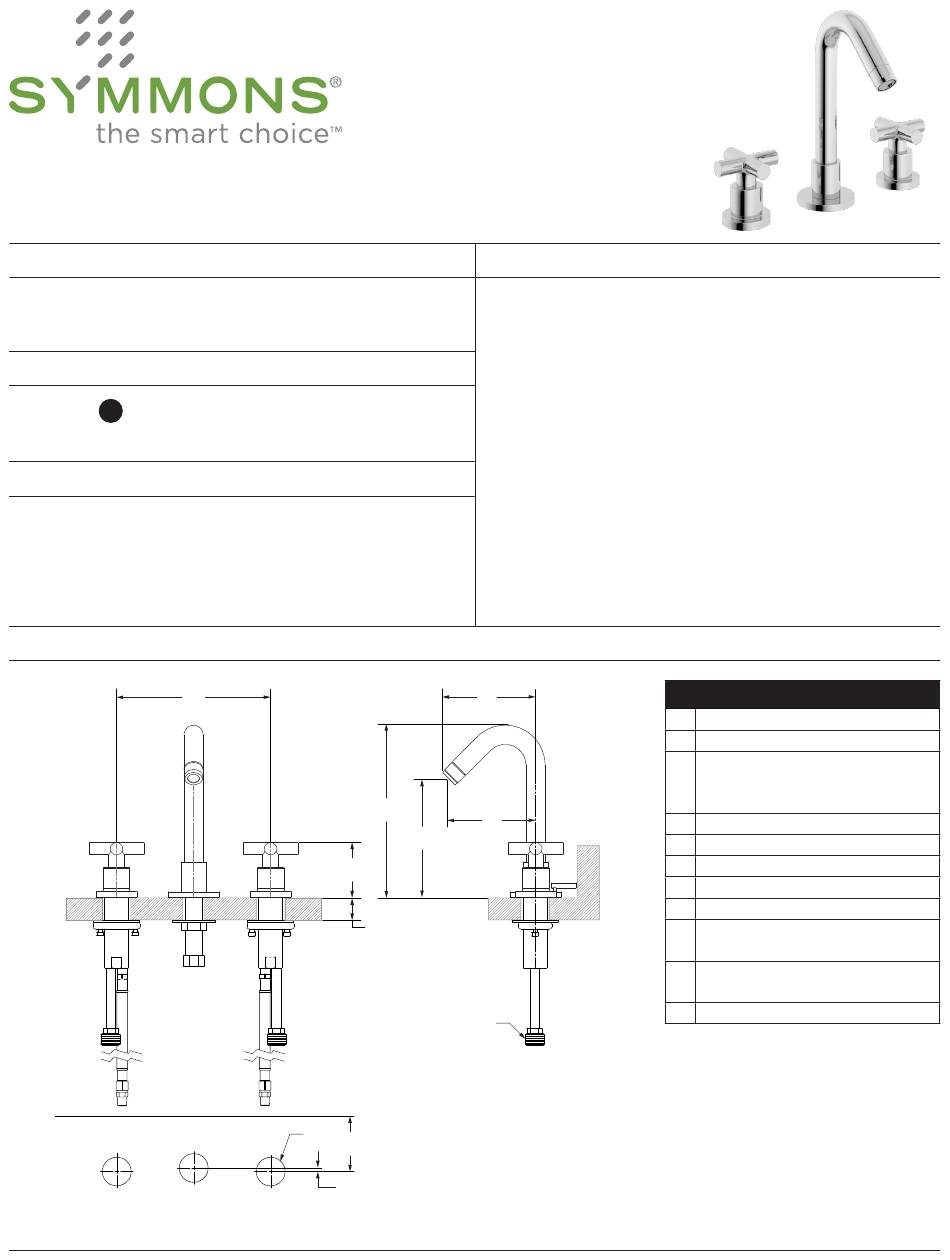

Dimensions
A A
Note: Dimensions subject to change without notice.
DS Creations
Specification
Two Handle Widespread Lavatory Faucet featuring 8"-16"
mounting configuration shall include ceramic cartridges,
3/8" copper supply lines, 1/2" IPS inlet connections, metal
drain assembly and 1.5 gpm (5.7 L/min) aerator. Faucet
shall be made from metal construction, plated in standard
polished chrome finish.
D D
E E
F F
G G
B B
C C
H H
I I
J J
K K
Measurements
A 8", 203 mm
B 2-11/16", 68 mm
Deck Thickness Ref.
C Min. Ø 1", 25 mm
Max. Ø 2", 51 mm
D 4-5/8", 117 mm
E 7-1/2", 191 mm
F 4-1/4", 108 mm
G 5-7/8", 149 mm
H 1/2-14 NPSM
(3x) Hole Size
I
Ø 1-1/2", 38 mm
To Backsplash
J
Min. 2-7/8", 73 mm
K 3/16", 5 mm
