Elecrow DISSF116P User Manual

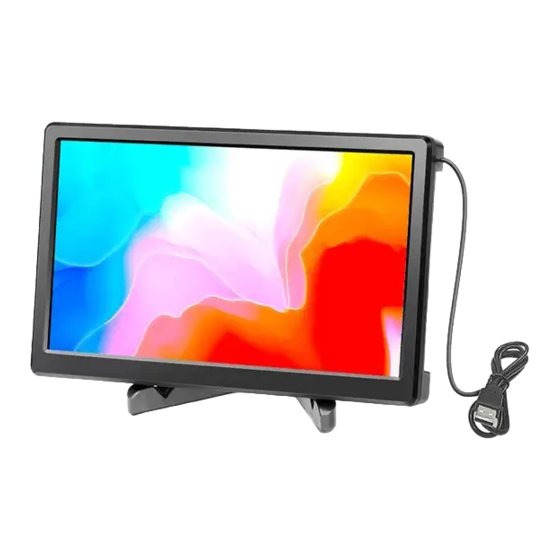

ELECROW 11.6" 1920*1080
Portable Monitor
USER MANUAL
Customer Support:
Should there be any questions, please feel free to let us know and contact us with
your purchase order number at info@elecrow.com .
Chapter 01

Before Using the Product

1-1. Package Contents

• 1 x Monitor
• 1 x HDMI-compatible Cable
• 1 x Power Supply
• 1 x Stand
• 1 x User Manual

1-2. Package Description

282.0mm
2
IMPORTANT SAFETY WARNING!
- This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliancein a safe way and
understand the hazards involved.
- Children shall not playwith the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
WARNING
- : Use the detachable supply unit provided with this appliance only.

1-2-1. Port Description

VGA: Video signal input.
1
EAR: 3.5mm headphones audio output.
2
3 DISPLAY: Video signal and audio input.
LINE IN: Audio signal input when connected VGA.
4
DC 12V: DC 12V power port.
5
*USB Cable(Touch Version): For touch function .
6

1-2-2 . Button Indications

1
Turn on/o the monitor when it powered.
1
By default, the key is the hot key for brightness.
+
2
When in the OSD menu, press for up/increase adjustment .
By default, the key is the hot key for volume.
-
3
When in the OSD menu, press for down/decrease adjustment.
30.0mm
Press to display the setting OSD menu.
4 M
When in the OSD menu, press to con rm the selection.
When in the OSD menu, press to exit the OSD menu.
5
Red / Blue light, indicated the working status.
Light
6
1
2 3 4 5 6
3
1
2
3
4
5
6
Speaker
